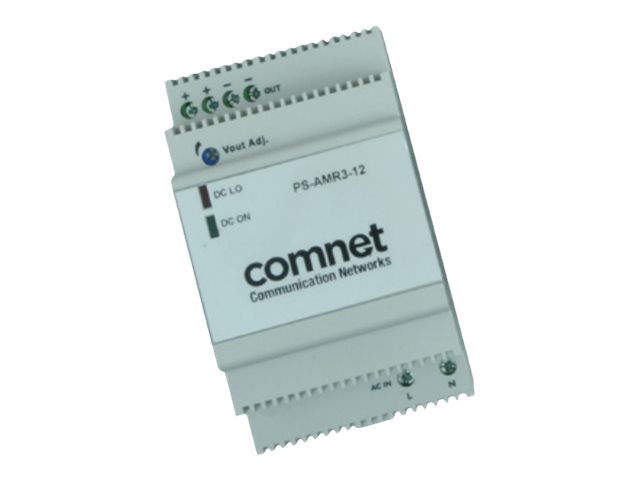

12VDC 33WATT 275A DIN RAIL HIGHTEMP PWR SUPPLY -40 C TO +71 C
MSRP$247.50
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
12VDC 33WATT 275A DIN RAIL HIGHTEMP PWR SUPPLY -40 C TO +71 C
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $247.50 |
| Mfr Part #: | PS-AMR3-12 |
| SHI Part #: | 31691649 |
| Category: | Surveillance video or audio recorders |
| UNSPSC: | 46171621 |
| Manufacturer: | COMNET |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Surveillance video or audio recorders |
| Description | 12VDC 33WATT 275A DIN RAIL HIGHTEMP PWR SUPPLY -40 C TO +71 C |
| Manufacturer | COMNET |
| MSRP | $247.50 |
| UNSPSC | 46171621 |
| Main Specifications | |
| Height | 0.00 |
| Length | 0.00 |
| Width | 0.00 |
| Dimensions & Weight | |
| Depth | 5.65 cm |
| Height | 9.1 cm |
| Weight | 190 g |
| Width | 5.3 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Max Operating Temperature | 71 °C |
| Min Operating Temperature | -40 °C |
| General | |
| Device Type | Power supply - DIN rail mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | IEC 61000-4-5, IP20, CB, cULus, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2 Level 4, EN 61000-4-3 Level 3, EN 61000-4-4, EN 61000-4-5 Level 3, EN 61000-4-6 Level 3, EN 61000-4-8, EN 61000-6-2, EN 61000-6-3, EN 61204-3, EN55022 Class B, EN55024, ENV 50204, IEC 60068-2-27, IEC 60068-2-6, ISA 12.12.01 Class 1 Div. 2, UL, UL 1310, UL 508, UL 60950-1 |
| Features | For 7.5 mm or 15 mm DIN rail, overvoltage protection, overload protection, fanless, T2A input fuse, output voltage adjustment |
| MTBF | 500,000 hours |
| Power Device | |
| Circuit Protection | Fuse |
| Efficiency | 80% |
| Frequency Required | 47 - 63 Hz |
| Input Voltage | AC 115/230 V / DC 120 - 375 V |
| Input Voltage Range | AC 90 - 264 / DC 120 - 375 V |
| Output Voltage | DC 12 V |
| Power Capacity | 33 Watt |
| Surge Suppression | Yes |
