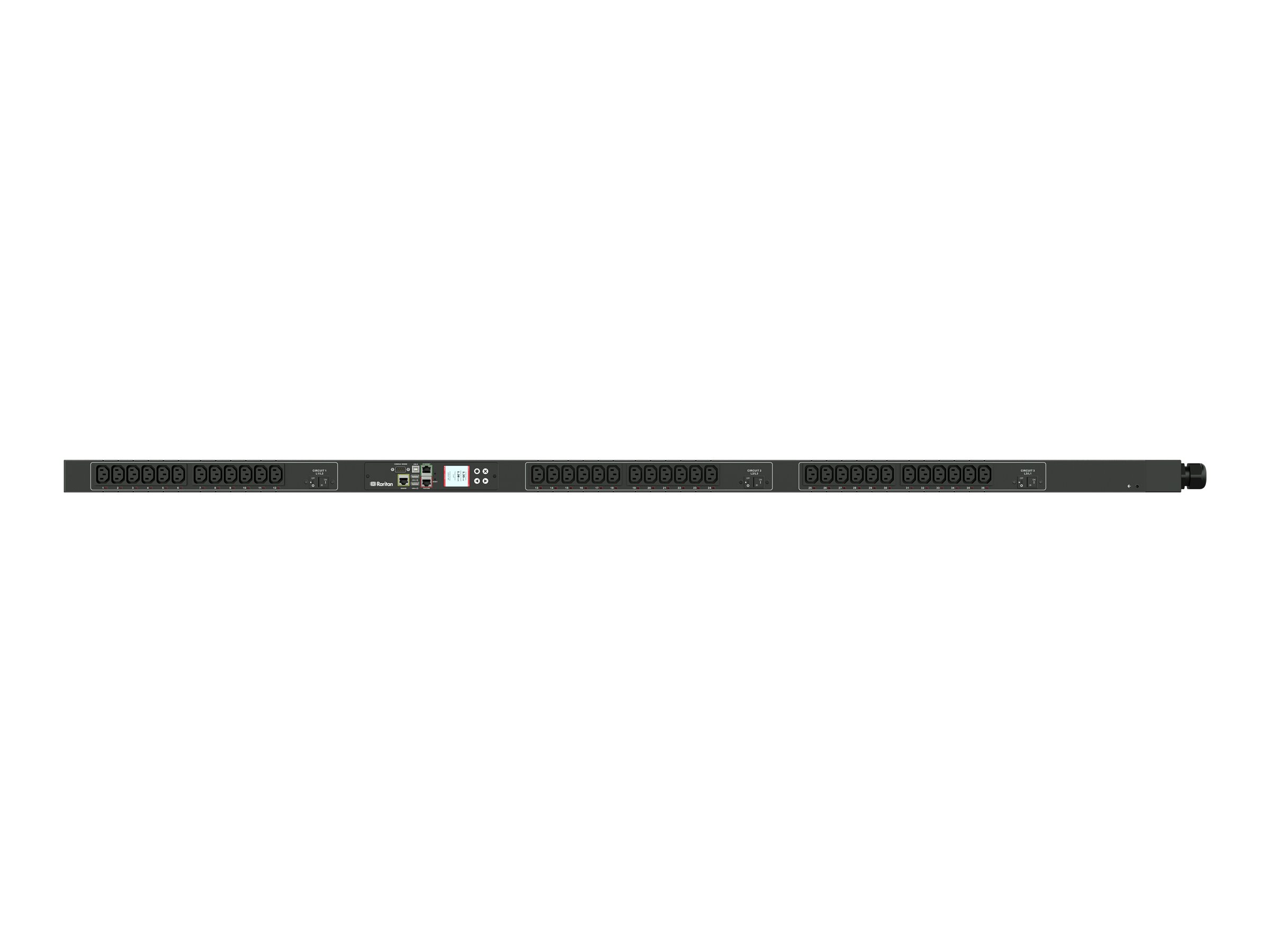

Raritan Dominion PX PX3-5701V-K1
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Raritan Dominion PX PX3-5701V-K1
- Power distribution unit (rack-mountable)
- AC 208 V
- 8600 VA
- 3-phase
- Ethernet 10/100, RS-232
- input: NEMA L21-30
- output connectors: 36 (IEC 60320 C13)
- 0U
- red
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX3-5701V-K1 |
| SHI Part #: | 31685073 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan Dominion PX PX3-5701V-K1 - Power distribution unit (rack-mountable) - AC 208 V - 8600 VA - 3-phase - Ethernet 10/100, RS-232 - input: NEMA L21-30 - output connectors: 36 (IEC 60320 C13) - 0U - red |
| Manufacturer | Legrand |
| MSRP | $2,801.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.5 cm |
| Dimensions & Weight / Height | 178 cm |
| Dimensions & Weight / Weight | 7 kg |
| Dimensions & Weight / Width | 5.2 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Red |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Power Capacity (VA) | 8600 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.5 cm |
| Height | 178 cm |
| Weight | 7 kg |
| Width | 5.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Red |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Image Color Disclaimer | The displayed product image may be a different color |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable - integrated - 3 m |
| Compliant Standards | UL, ICES-003 Class A, RoHS, FCC Part 15 A, cULus, IEC 62053-21, ISO 62053-21 |
| Features | LED display, voltage monitoring, current meter, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, splash-proof plug |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L21-30 |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 190 - 208 V |
| Input Wiring | 3-phase |
| Max Electric Current | 24 A |
| Output Voltage | AC 208 V |
| Power Capacity | 8600 VA |
| Power Output Connectors Details | 36 x power IEC 60320 C13 12 A |
