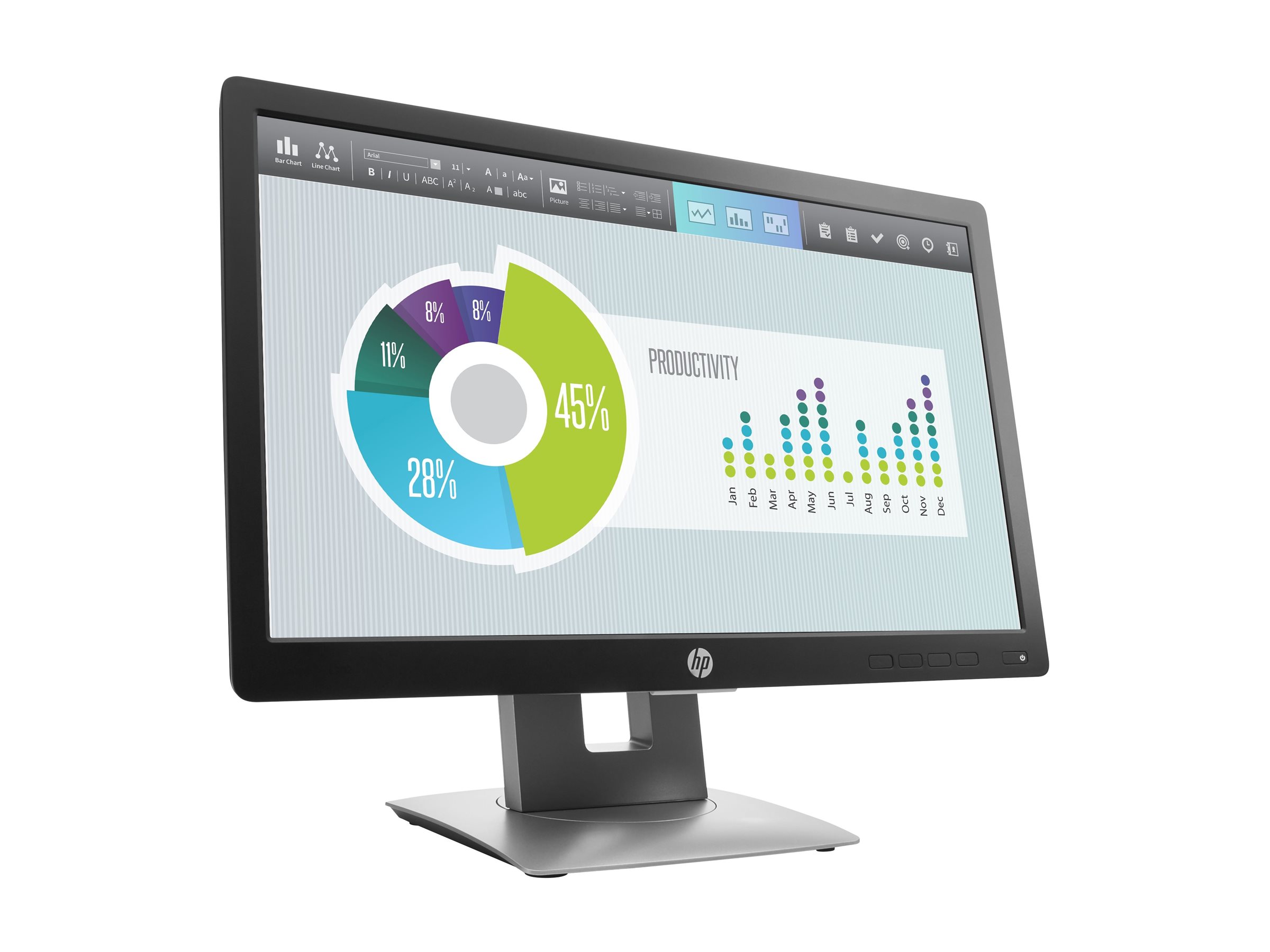

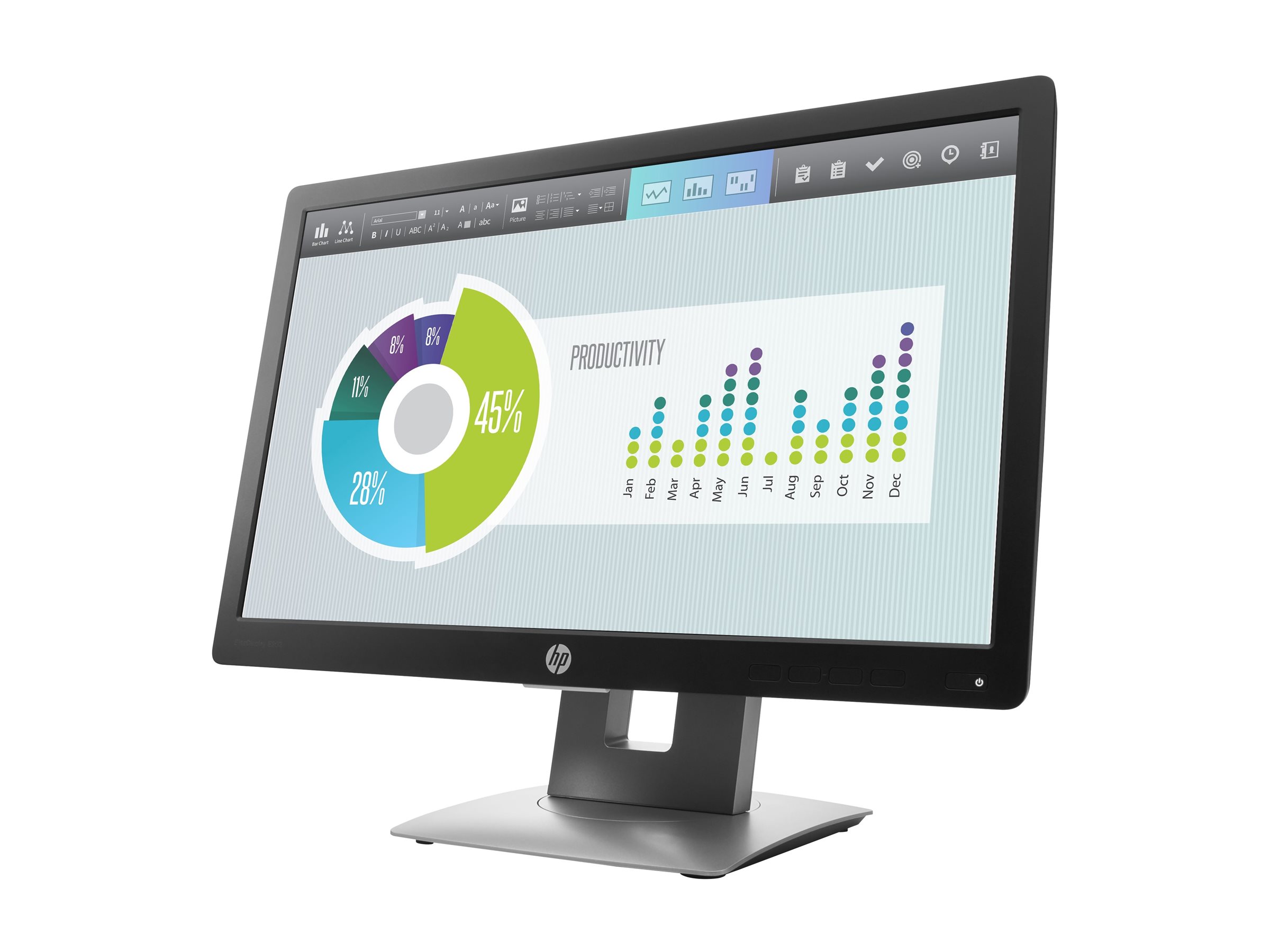

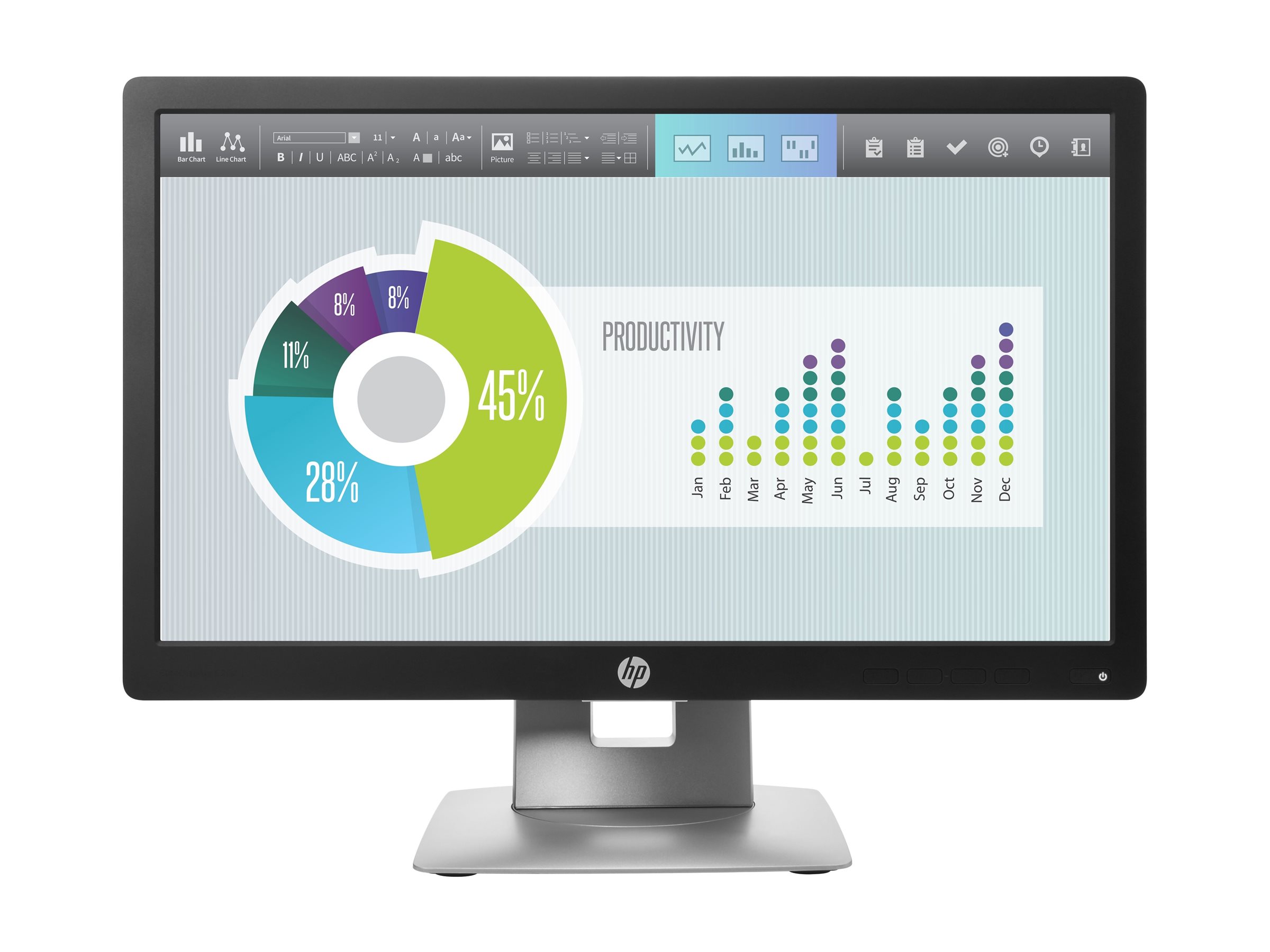

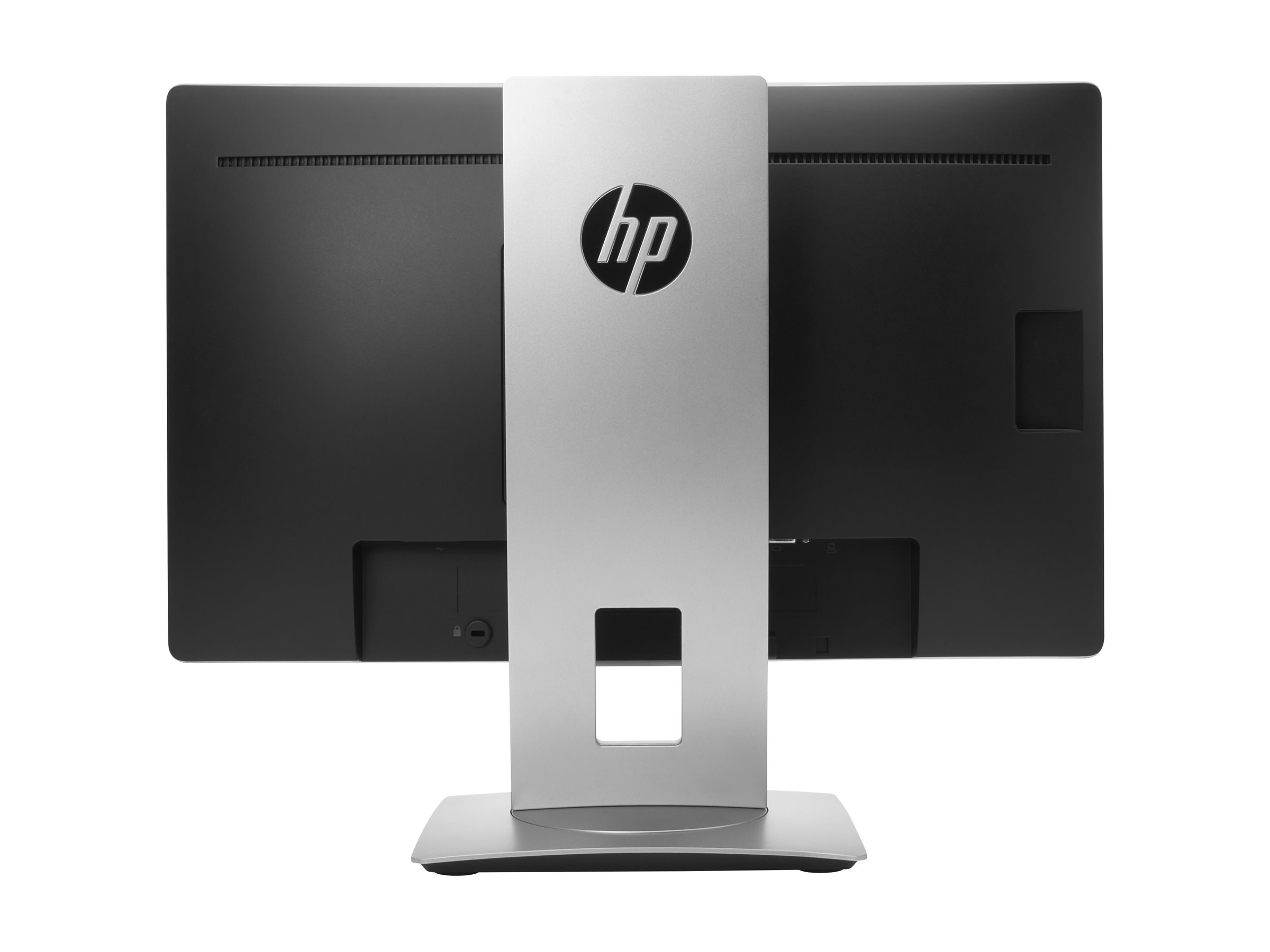

HP EliteDisplay E202

Login for Price
HP EliteDisplay E202
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • LED monitor
  • 20" (20" viewable)
  • 1600 x 900 @ 60 Hz
  • IPS
  • 250 cd/m²
HP EliteDisplay E202
  • LED monitor
  • 20" (20" viewable)
  • 1600 x 900 @ 60 Hz
  • IPS
  • 250 cd/m²
  • 1000:1
  • 7 ms
  • HDMI, VGA, DisplayPort
  • black, silver
  Additional Details
Mfr Part #: M1F41AA#ABA
SHI Part #: 31657324
Category: Flat panel displays
UNSPSC: 43211902
Manufacturer: HP, Inc.
Product Type: Hardware
General Information
CategoryFlat panel displays
DescriptionHP EliteDisplay E202 - LED monitor - 20" (20" viewable) - 1600 x 900 @ 60 Hz - IPS - 250 cd/m² - 1000:1 - 7 ms - HDMI, VGA, DisplayPort - black, silver
ManufacturerHP, Inc.
UNSPSC43211902
Main Specifications
Dimensions & Weight / Depth4.95 cm
Dimensions & Weight / Height29.68 cm
Dimensions & Weight / Weight2.8 kg
Dimensions & Weight / Width47.9 cm
Display / Diagonal Size20 in
Display / Diagonal Size (metric)50.8 cm
Display / Interface
  • DisplayPort
  • HDMI
  • VGA (HD-15)
Display / Native Resolution1600 x 900
Display / Pixel Pitch0.276 mm
Display / TypeLED-backlit LCD monitor
Header / BrandHP
Header / Country KitsUnited States
Header / LocalizationEnglish
Image Brightness250 cd/m²
Miscellaneous / Compliant Standards
  • BSMI
  • CB
  • CCC
  • CECP
  • CEL
  • CSA
  • EAC
  • FCC
  • ISC
  • ISO 9241-307
  • KC
  • KCC
  • MEPS
  • NOM
  • PSB
  • SEPA
  • TUV S
  • UL
  • VCCI
  • WEEE
  • WHQL
Miscellaneous / Product Color
  • Black
  • Silver
Packaged Quantity1
Service & Support / Type3-year warranty
Connectivity
Interfaces
  • USB 2.0 upstream (Type B)
  • 2 x USB 2.0 downstream (Type A)
  • HDMI (HDCP)
  • DisplayPort (HDCP)
  • VGA (HD-15)
Dimensions & Weight
Dimensions & Weight Details
  • Without stand - width: 47.9 cm - depth: 4.95 cm - height: 29.68 cm - weight: 3 kg
  • With stand - width: 47.9 cm - depth: 18.9 cm - height: 49.33 cm - weight: 4.8 kg
Environmental Parameters
Humidity Range Operating20 - 80% (non-condensing)
Max Operating Temperature35 °C
Min Operating Temperature5 °C
General
Aspect Ratio16:9
Backlight TechnologyWLED
Brightness250 cd/m²
Built-in DevicesUSB 2.0 hub
ColorBlack, silver
Color Gamut72%
Color Support16.7 million colors
Contrast Ratio1000:1 / 5000000:1 (dynamic)
Controls & AdjustmentsBrightness, contrast
Diagonal Size20"
Dimensions (WxDxH)47.9 cm x 4.95 cm x 29.68 cm - without stand
Display TypeLED-backlit LCD monitor / TFT active matrix
Energy ClassClass A
Energy Consumption per Year26 kWh
FeaturesHDCP, Mercury free, arsenic-free glass
Horizontal Refresh Rate30 - 70 kHz
Horizontal Viewing Angle178
Native Resolution1600 x 900 at 60 Hz
OSD LanguagesChinese (traditional), Chinese (simplified), English, German, French, Italian, Portuguese, Spanish, Dutch, Japanese
Panel TypeIPS
Pixel Per Inch91
Pixel Pitch0.276 mm
Response Time7 ms (gray-to-gray)
Screen CoatingAnti-glare
Vertical Refresh Rate50 - 75 Hz
Vertical Viewing Angle178
Video Bandwidth170 MHz
Weight2.8 kg
Manufacturer Warranty
Service & SupportLimited warranty - parts and labor - 3 years
Mechanical
Display Position AdjustmentsHeight, pivot (rotation), swivel, tilt
Height Adjustment150 mm
Rotation Angle90
Swivel Angle90
Tilt Angle-5/+25
VESA Mounting Interface100 x 100 mm
Miscellaneous
Backlight Life40,000 hours
Cables Included
  • 1 x VGA cable - 1.8 m
  • 1 x DisplayPort cable - 1.8 m
  • 1 x USB cable - 1.8 m
Compliant StandardsCSA, UL, VCCI, BSMI, NOM, TUV S, WHQL, CB, CCC, PSB, FCC, ISO 9241-307, KCC, WEEE, MEPS, KC, CECP, CEL, EAC, ISC, SEPA
FeaturesSecurity lock slot (cable lock sold separately)
LocalizationEnglish / United States
Power
Input VoltageAC 120/230 V (50/60 Hz)
Power Consumption (On mode)18 W
Power Consumption (Typical)22 Watt
Power Consumption Stand by0.5 Watt
Sustainability Information
ENERGY STAR CertifiedYes
