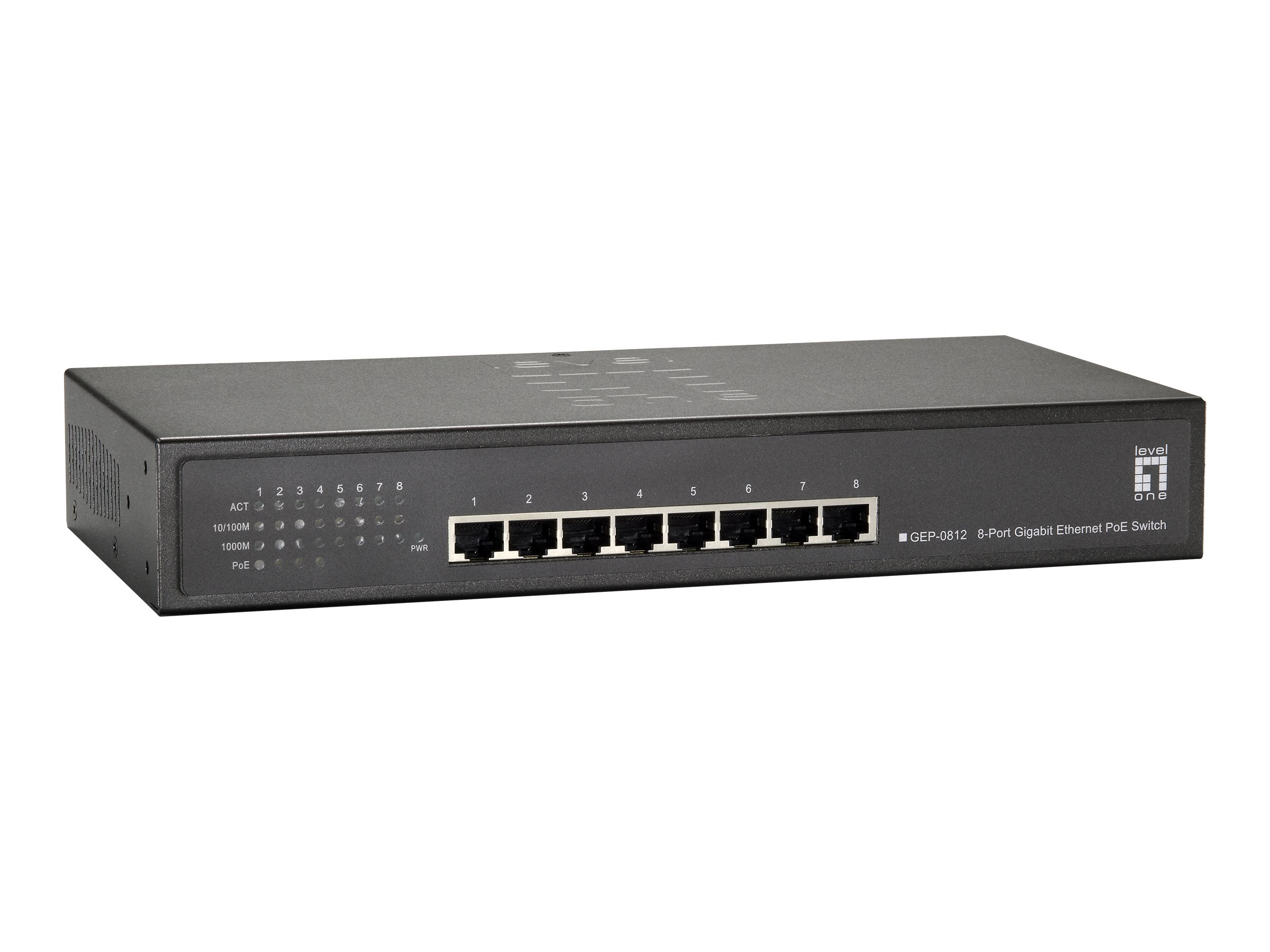

LEVELONE 8PORT GIGABIT POE PER
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
LEVELONE 8PORT GIGABIT POE PER
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | GEP-0812 |
| SHI Part #: | 31612335 |
| Category: | Network cable |
| UNSPSC: | 26121609 |
| Manufacturer: | CP Technologies |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network cable |
| Description | LEVELONE 8PORT GIGABIT POE PER |
| Manufacturer | CP Technologies |
| UNSPSC | 26121609 |
| Main Specifications | |
| C.P.U. | STK-SW |
| Dimensions & Weight / Weight | 003.90 |
| Height | 003.30 |
| Length | 014.70 |
| UPC | 0846359035863 |
| Width | 009.10 |
| Dimensions & Weight | |
| Depth | 12.55 cm |
| Height | 4.4 cm |
| Weight | 1.5 kg |
| Width | 28 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Compliant Standards | IEEE 802.3at, IEEE 802.3af, IEEE 802.3x, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Device Type | Switch - 8 ports |
| Enclosure Type | Rack-mountable, desktop |
| Features | Flow control, metal housing, 128KB packet buffer, store and forward, PSE, PoE circuit sorting protection, PoE overcurrent protection |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 8K entries |
| Performance |
|
| PoE Budget | 61.6 W |
| Ports | 4 x 10/100/1000 (PoE+) + 4 x 10/100/1000 |
| Power Over Ethernet (PoE) | PoE+ |
| Status Indicators | Port transmission speed, power, PoE, link/activity |
| Subtype | Gigabit Ethernet |
| Miscellaneous | |
| Compliant Standards | FCC |
| Rack Mounting Kit | Included |
| Power | |
| Electric Current Required | 2 A |
| Power Consumption Operational | 65 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
