Intel Flash Adapter io3 Enterprise Mainstream
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

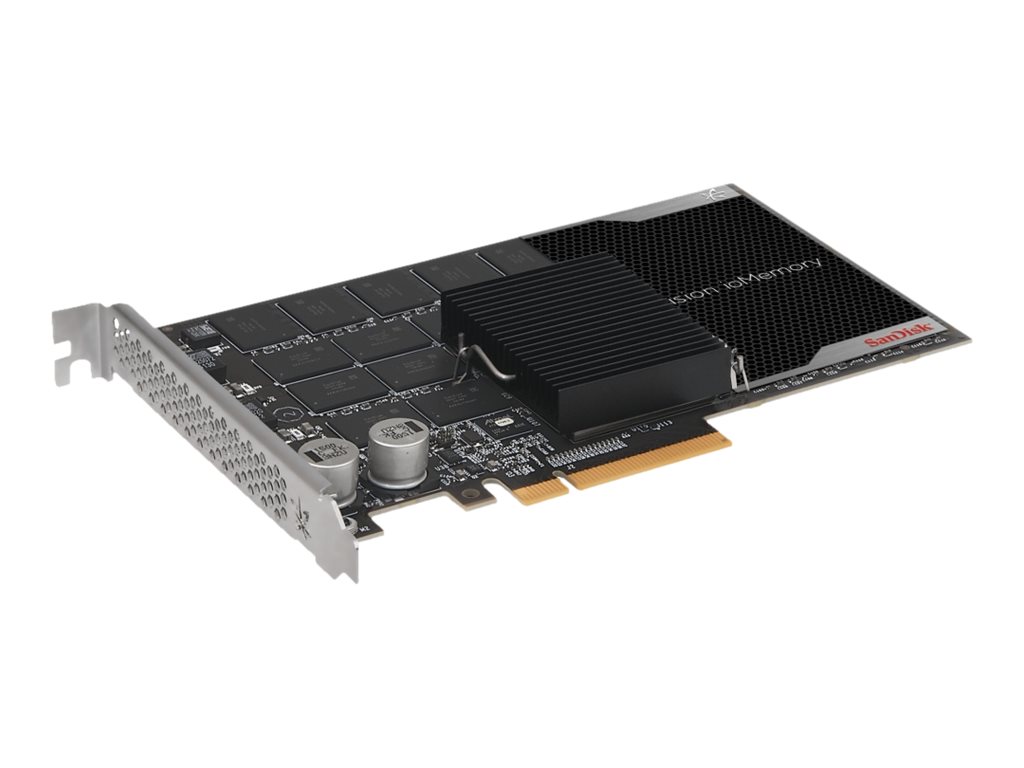

Intel Flash Adapter io3 Enterprise Mainstream
- Solid state drive
- 1.6 TB
- internal
- low profile
- PCI Express 2.0 x8
- for Flex System x240 M5; System x3550 M5; x3650 M5; x3850 X6; x3950 X6
| Additional Details | |
|---|---|
| Mfr Part #: | 00YA803 |
| SHI Part #: | 31511643 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Lenovo |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Intel Flash Adapter io3 Enterprise Mainstream - Solid state drive - 1.6 TB - internal - low profile - PCI Express 2.0 x8 - for Flex System x240 M5; System x3550 M5; x3650 M5; x3850 X6; x3950 X6 |
| Manufacturer | Lenovo |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 167 mm |
| Dimensions & Weight / Height | 17 mm |
| Dimensions & Weight / Weight | 152 g |
| Dimensions & Weight / Width | 69 mm |
| Hard Drive / Capacity | 1.6 TB |
| Hard Drive / Form Factor | Low profile |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 2.0 x8 |
| Hard Drive / Interface | PCI Express 2.0 x8 |
| Header / Brand | Lenovo |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / Type | Solid state drive |
| Compatibility Information | |
| Designed For |
|
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
| Expansion & Connectivity | |
| Compatible Bay | Low profile |
| Interfaces | 1 x PCI Express 2.0 x8 |
| General | |
| Capacity | 1.6 TB |
| Depth | 167 mm |
| Device Type | Solid state drive - internal |
| Features | Half-height half-length form-factor |
| Form Factor | Low profile |
| Height | 17 mm |
| Interface | PCIe 2.0 x8 |
| NAND Flash Memory Type | Multi-level cell (MLC) |
| Weight | 152 g |
| Width | 69 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | BSMI CNS 13438 Class A, RoHS, WEEE, REACH, Directive 2004/108/EC, ANSI C63.4-2009, Directive 2006/95/EC, Directive 2002/96/EC, EN 61000-3-3:2008, Directive 2011/65/EU, EN 61000-3-2:2006+A1:2009+A2:2009, NMB-3 Class A, MSIP, EMC 2004/108/EC, VCCI V-3/2013.04 Class A, EN 55024:2010, EN 55022:2010, EN 55022:2010 Class A, AS/NZS CISPR22:2009+A1:2010, CAN ICES-3 Class A, EN 55022:2006+A1:2007 Class A, Directive 1999/45/EC, Regulation EC 1907/2006, IEC 60950-1:2005 + A1:2009, FCC CFR47 Part 15 B Class A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011 |
| Performance | |
| 4KB Random Read | 270000 IOPS |
| 4KB Random Write | 375000 IOPS |
| Internal Data Rate | 2.8 GBps (read) / 1.7 GBps (write) |
| SSD Endurance | 5.5 PB |
| Power | |
| Power Consumption | 22 Watt |
| Software & System Requirements | |
| OS Required | Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T, VMware vSphere 5.5 (ESXi), SuSE Linux Enterprise Server 12, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 12 with Xen |
