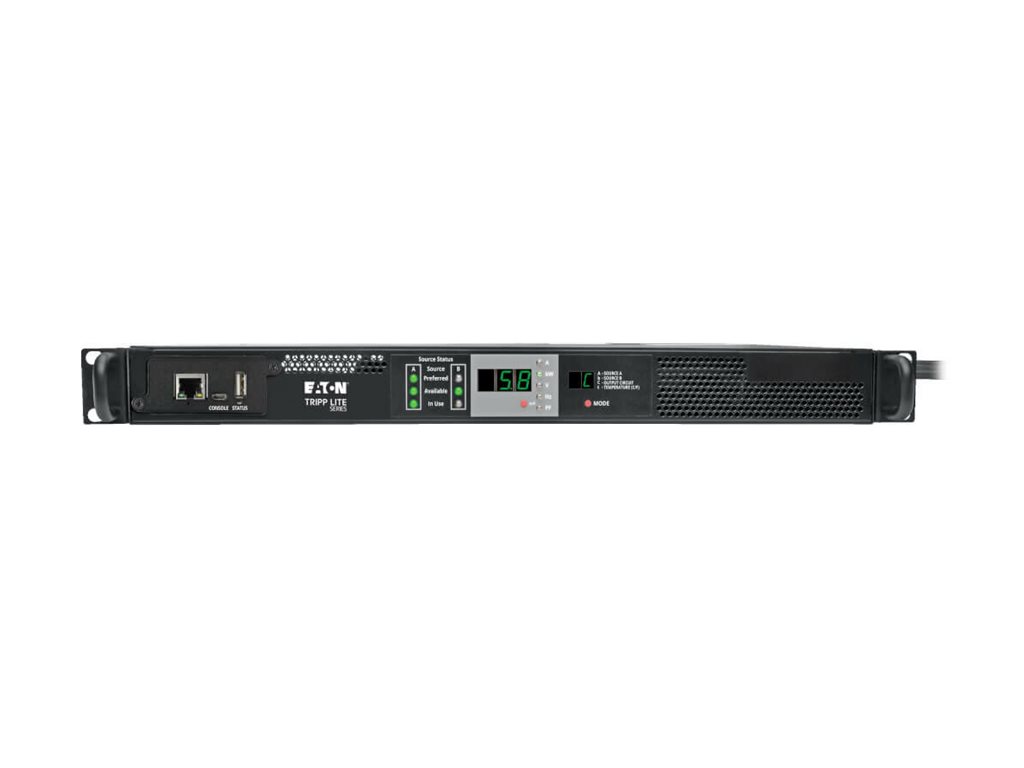

Tripp Lite PDU Monitored Horizontal 5.8kw 208/240V L6-30R 2 L6-30P ATS 1URM

Primary and Secondary Inputs for Power Redundancy

? Provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations

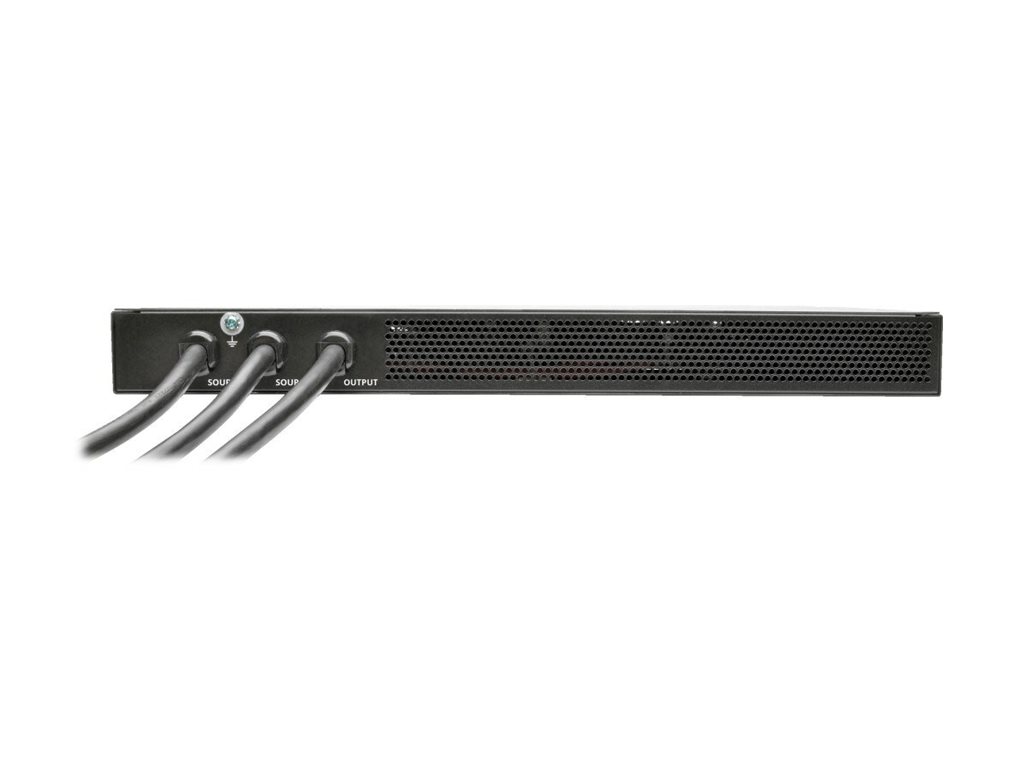

? Dual 10-ft. (3.05 m) input cords with L6-30P plugs connect to separate primary and secondary single-phase power sources

Built-In L6-30R Outlet

? Connects a single device or indirectly powers equipment through a 0U 200-240V rack PDU (rPDU) with L6-30P input (sold separately)

Automatic Transfer Switching

? Dynamic solid-state (TRIAC) automatic transfer switching

? Switches to secondary power source if primary source fails or becomes unstable

? 1-5 ms transfer time ensures uninterrupted operation of connected equipment

? Built-in processor monitors both sources and prevents switching if secondary source is unavailable or of lower quality than primary source

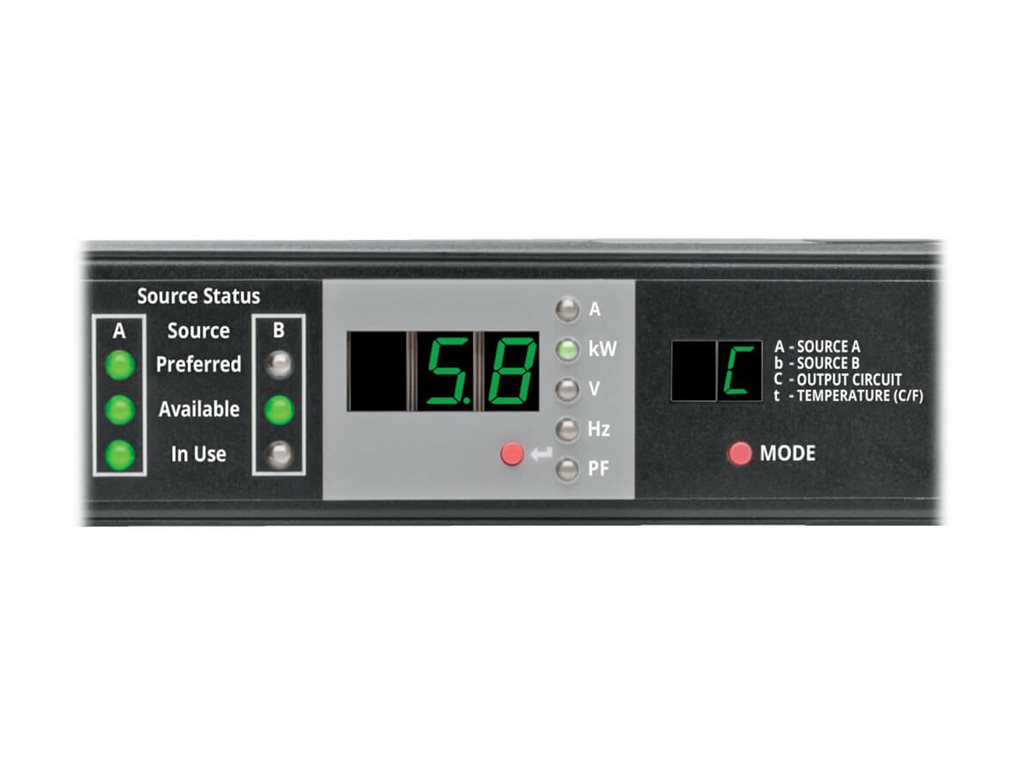

Multifunction Digital Display

? Reports source A and source B input power status and other information, including power availability, line voltage, frequency, amps, kilowatts and power factor

Advanced Network Monitoring

? Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities

? PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations

? Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities

? Real-time load/current data with billing-grade accuracy (+/- 1 percent)

? Automated alerts help prevent accidental overloads, power loss and downtime

Broad Communications Compatibility

? 10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks

? Supports HTTP, HTTPS, PowerAlert , SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP and NTP

Mounts Horizontally in 1U of Rack Space

? Compatible with EIA-standard 19 in. 4-post racks and rack enclosures

? Optional PDU4PKIT rail kit adds rear rack-mounting support.
