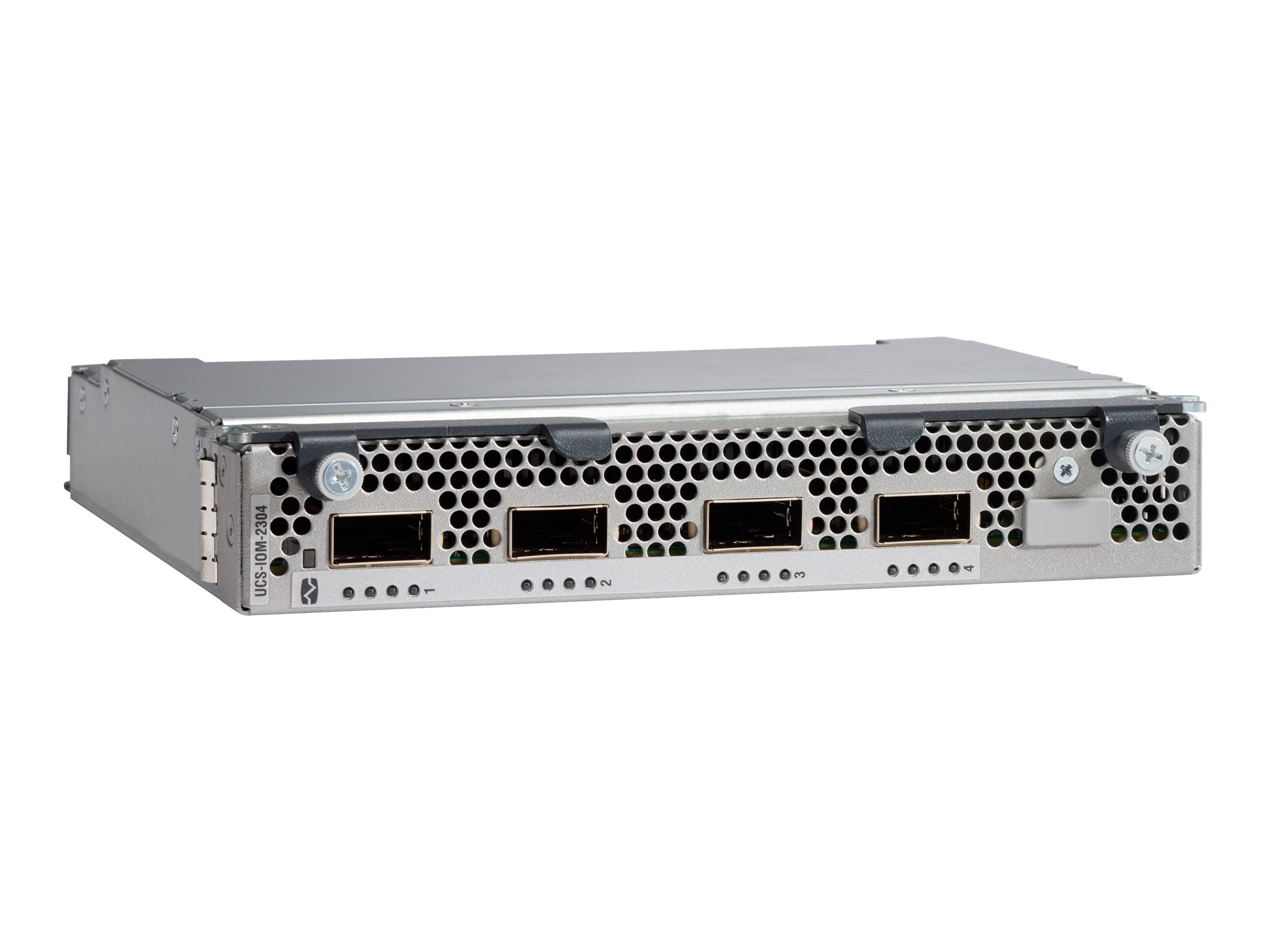

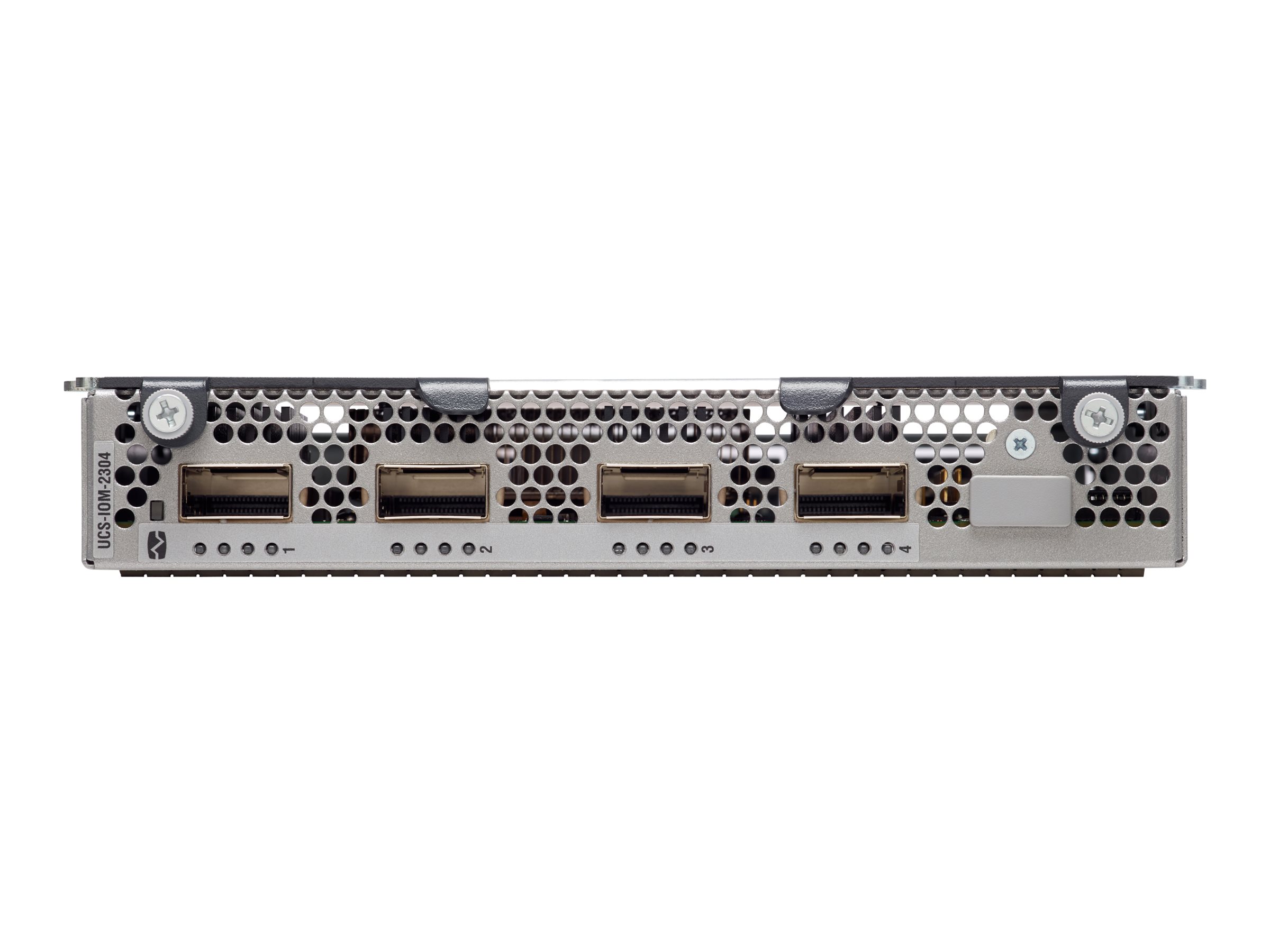

Cisco UCS 2304 Fabric Extender

MSRP$12,627.00
$6,406.00
Cisco UCS 2304 Fabric Extender
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Expansion module
  • 40Gb Ethernet / FCoE QSFP+ x 4 + 40Gb Ethernet (backplane) x 8
  • for UCS 5108, SmartPlay Select 5108; UCS 5108 Blade Server Chassis
Cisco UCS 2304 Fabric Extender
  • Expansion module
  • 40Gb Ethernet / FCoE QSFP+ x 4 + 40Gb Ethernet (backplane) x 8
  • for UCS 5108, SmartPlay Select 5108; UCS 5108 Blade Server Chassis
  Additional Details
Price: $6,406.00
MSRP: $12,627.00
Mfr Part #: UCS-IOM-2304=
SHI Part #: 31334893
Category: Network interface cards
UNSPSC: 43201404
Manufacturer: Cisco Systems
Product Type: Hardware
General Information
CategoryNetwork interface cards
DescriptionCisco UCS 2304 Fabric Extender - Expansion module - 40Gb Ethernet / FCoE QSFP+ x 4 + 40Gb Ethernet (backplane) x 8 - for UCS 5108, SmartPlay Select 5108; UCS 5108 Blade Server Chassis
ManufacturerCisco Systems
MSRP$12,627.00
UNSPSC43201404
Main Specifications
Dimensions & Weight / Depth18.3 cm
Dimensions & Weight / Height19.4 cm
Dimensions & Weight / Weight1.134 kg
Dimensions & Weight / Width3.45 cm
Header / BrandCisco
Networking / Connectivity TechnologyWired
Networking / Data Link Protocol
  • 40 Gigabit Ethernet
  • Fibre Channel over Ethernet (FCoE)
Networking / TypeExpansion module
Packaged Quantity1
Compatibility Information
Designed For
  • Cisco UCS 5108 Blade Server Chassis, SmartPlay Select 5108 Chassis
  • Cisco UCS 5108 Blade Server Chassis SmartPlay 8 Expansion Pack, SmartPlay Base, SmartPlay Select, SmartPlay Select (Tracer)
Dimensions & Weight
Depth18.3 cm
Height19.4 cm
Weight1.134 kg
Width3.45 cm
Environmental Parameters
Humidity Range Operating5 - 95% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 4 x 40Gb Ethernet / FCoE (uplink) - QSFP+
  • 8 x 40Gb Ethernet - backplane
General
Device TypeExpansion module
Form FactorPlug-in module
Miscellaneous
Compliant StandardsCISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, GB 4943, Directive 2004/108/EC, Directive 2006/95/EC, VCCI Class A, KN22 Class A, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15 A, CNS 13438 Class A, CAN/CSA-C22.2 No. 60950-1, EN 300386
Networking
Capacity
  • VLANs supported: 1024
  • Jumbo frame size: 9216
Compliant StandardsIEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ba, IEEE 802.1Qaz
Connectivity TechnologyWired
Data Link ProtocolFibre Channel over Ethernet (FCoE), 40 Gigabit Ethernet
FeaturesVLAN support, WRR queuing, High Availability, DCBX support, priority-based flow control, QoS, Jumbo Frames support, CoS, FET
PerformanceForwarding performance: 960 Gbps
Ports40Gb Ethernet / FCoE QSFP+ x 4 + 40Gb Ethernet (backplane) x 8
