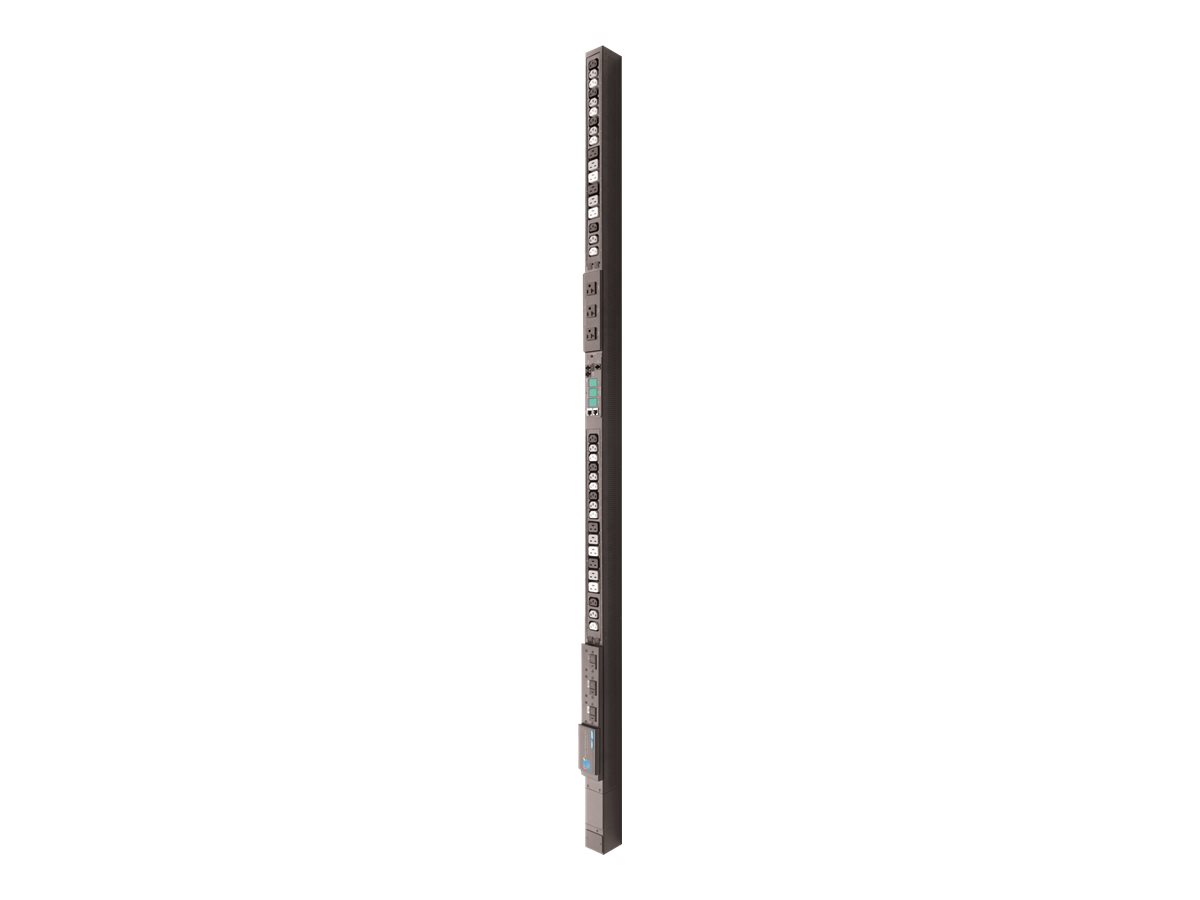

Server Technology PRO2 Switched PDU C2W36CE-DCMFA966
MSRP$2,896.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Server Technology PRO2 Switched PDU C2W36CE-DCMFA966
- Power distribution unit (rack-mountable)
- AC 208 V
- 8.6 kW
- 3-phase 4 Wire delta
- Ethernet 10/100, RS-232
- input: NEMA L15-30
- output connectors: 36 (IEC 60320 C13, IEC 60320 C19)
- 0U
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,896.00 |
| Mfr Part #: | C2W36CE-DCMFA966 |
| SHI Part #: | 31294868 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Server Technology PRO2 Switched PDU C2W36CE-DCMFA966 - Power distribution unit (rack-mountable) - AC 208 V - 8.6 kW - 3-phase 4 Wire delta - Ethernet 10/100, RS-232 - input: NEMA L15-30 - output connectors: 36 (IEC 60320 C13, IEC 60320 C19) - 0U |
| Manufacturer | Legrand |
| MSRP | $2,896.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.4 cm |
| Dimensions & Weight / Height | 177.8 cm |
| Dimensions & Weight / Weight | 10 kg |
| Dimensions & Weight / Width | 5.6 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Server Technology |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.4 cm |
| Height | 177.8 cm |
| Weight | 10 kg |
| Width | 5.6 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 17.8 cm |
| Shipping Height | 200 cm |
| Shipping Weight | 11.4 kg |
| Shipping Width | 17.8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, EN55024, FCC Part 15, RoHS, WEEE, UL 489, cTUVus, UL 60950-1:2007, CAN/CSA C22.2 No. 60950-1-07+A11:2011, EN 55022 Class A |
| Features | Front cable entry, LED display, thermal monitoring, humidity monitoring, current meter, vertical orientation, email alerts support, Per Input Power Sensing (PIPS) |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232 |
| Remote Management Protocol | Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2 |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L15-30 |
| Input Voltage | AC 208 V |
| Input Wiring | 3-phase 4 Wire delta |
| Max Electric Current | 24 A |
| Power Capacity | 8.6 kW |
| Power Output Connectors Details |
|
