Datamax E-Class Mark III Advanced E-4205A
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

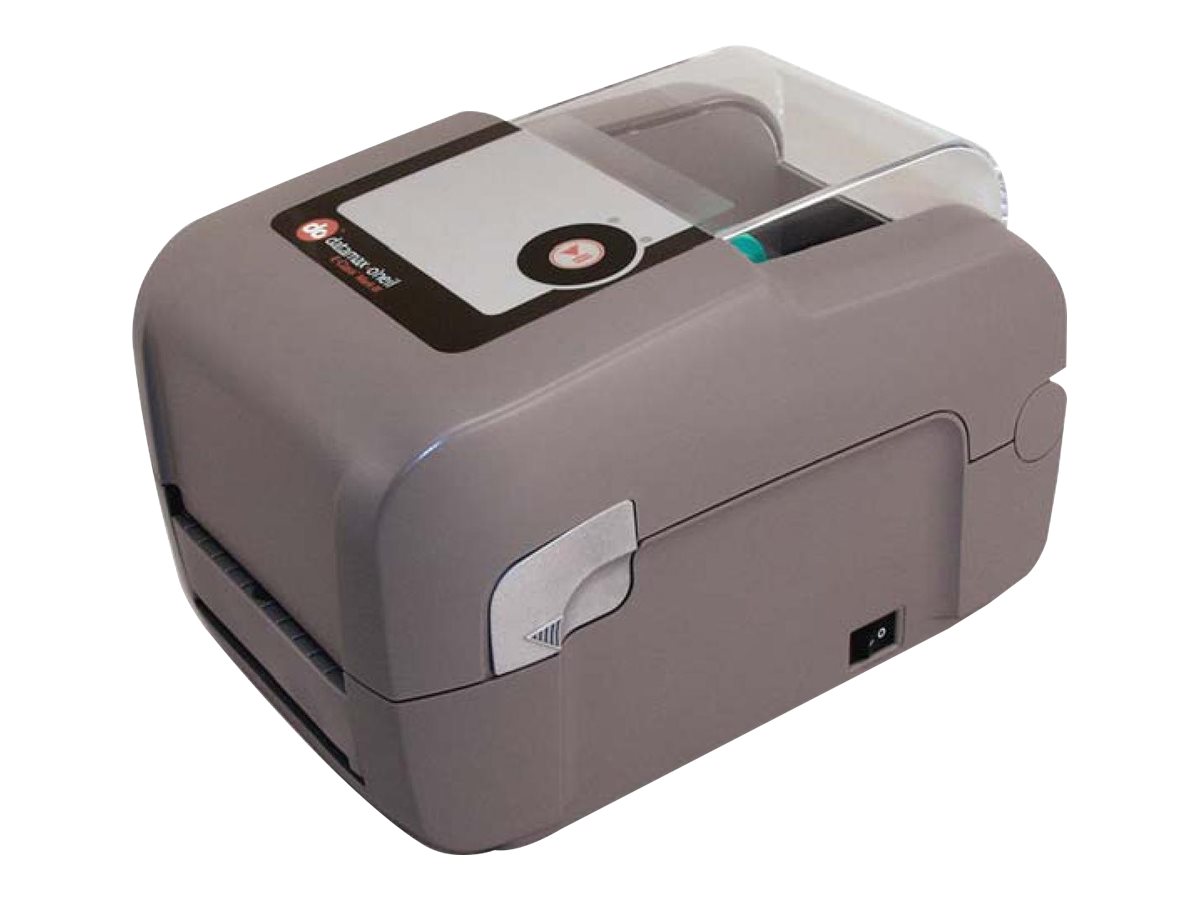

Datamax E-Class Mark III Advanced E-4205A
- Label printer
- direct thermal
- Roll (11.2 cm)
- 203 dpi
- up to 127 mm/sec
- parallel, USB 2.0, LAN, serial
- cutter
- pantone warm gray
| Additional Details | |
|---|---|
| Mfr Part #: | EA2-00-0JG05A01 |
| SHI Part #: | 31041691 |
| Category: | Thermal tape printers |
| UNSPSC: | 43212108 |
| Manufacturer: | Honeywell |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Thermal tape printers |
| Description | Datamax E-Class Mark III Advanced E-4205A - Label printer - direct thermal - Roll (11.2 cm) - 203 dpi - up to 127 mm/sec - parallel, USB 2.0, LAN, serial - cutter - pantone warm gray |
| Manufacturer | Honeywell |
| UNSPSC | 43212108 |
| Main Specifications | |
| Dimensions & Weight / Depth | 28.2 cm |
| Dimensions & Weight / Height | 18.7 cm |
| Dimensions & Weight / Weight | 2.4 kg |
| Dimensions & Weight / Width | 20.35 cm |
| Header / Brand | Datamax-O'Neil |
| Header / Country Kits | United States |
| Miscellaneous / Product Color | Gray |
| Networking / Type | Print server |
| Office Machine / Functions | Printer |
| Office Machine / Printing Output Type | Monochrome |
| Office Machine / Printing Technology | Direct thermal |
| Office Machine / Type | Printer |
| Packaged Quantity | 1 |
| PC Connectivity / PC Connection |
|
| Power Device / Type | Power adapter |
| Printer / Connectivity Technology | Wired |
| Printer / Type | Label printer |
| Scanner / Type | None |
| Service & Support / Type | 1-year warranty |
| System Requirements / OS Required |
|
| Dimensions & Weight | |
| Depth | 28.2 cm |
| Height | 18.7 cm |
| Weight | 2.4 kg |
| Width | 20.35 cm |
| Environmental Parameters | |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 4 °C |
| Expansion / Connectivity | |
| Connections |
|
| Flash Memory | |
| Flash Memory | 64 MB |
| General | |
| Enclosure Color | Pantone warm gray |
| Localization | United States |
| Printer Type | Label printer - direct thermal - monochrome |
| Manufacturer Warranty | |
| Service & Support |
|
| Media Handling | |
| Max Media Size | Roll (11.2 cm) |
| Max Media Size (Custom) | 112 mm |
| Max Printing Length | 2514 mm |
| Max Printing Width | 108 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.2 cm) |
| Media Sizes | Roll (1.9 - 11.2 cm) |
| Media Thickness Range | 0.06 mm - 0.25 mm |
| Media Type | Continuous forms, perforated labels, fanfold paper |
| Min Media Size (Custom) | 19 mm |
| Roll Core Diameter | 38 mm, 25 mm |
| Roll Maximum Outer Diameter | 127 mm |
| Miscellaneous | |
| Compliant Standards | ISO 9001:2008 |
| Included Accessories | Cutter, media adapter guide |
| Networking | |
| Networking | Print server |
| Power | |
| Power Device | Power adapter - external |
| Printer | |
| Barcodes | Code 93, UCC/EAN-128, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, HIBCC, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 3 of 9, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, FIM, TLC39, Plessey |
| Connectivity Technology | Wired |
| Cutter | Yes |
| Features | Adjustable gap sensor, label sensor |
| Fonts | CG Triumvirate, OCR-A, OCR-B |
| Interface | Parallel, USB 2.0, LAN, serial |
| Language Simulation | DPL |
| Max Resolution (B&W) | 203 dpi |
| Print Speed | Up to 127 mm/sec - max speed |
| Styles & Effects | Mirror, rotated text |
| RAM | |
| RAM Installed (Max) | 16 MB |
| Software / System Requirements | |
| OS Required | Microsoft Windows NT, Microsoft Windows Vista / XP |
| Software Included | Drivers & Utilities |
