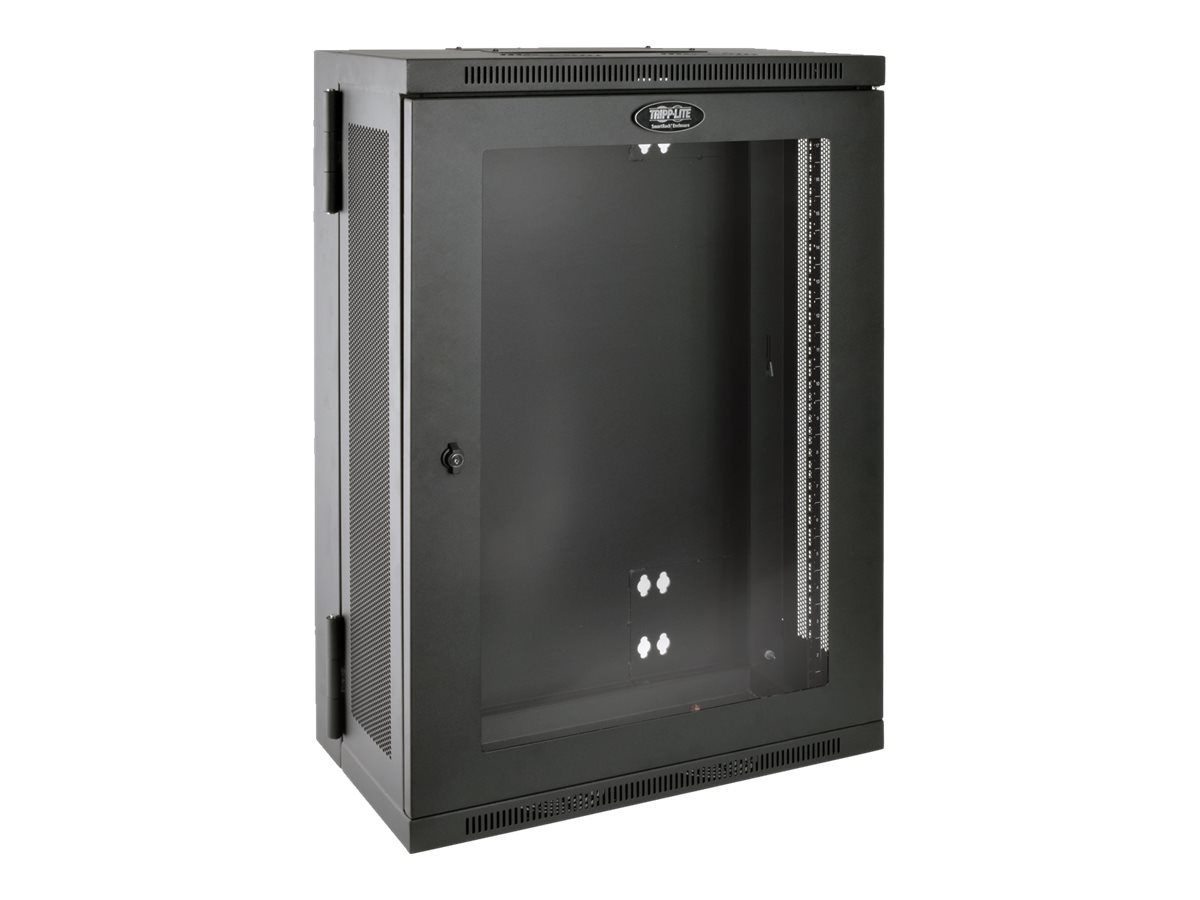

Tripp Lite 18U Wall Mount Rack Enclosure Hinged 13" Depth w Acrylic Window

Saves Valuable Workspace

? Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way

? Houses EIA-standard 19 in. rack equipment in 18U of space

? Maximum load capacity of 200 pounds (90.7 kg).

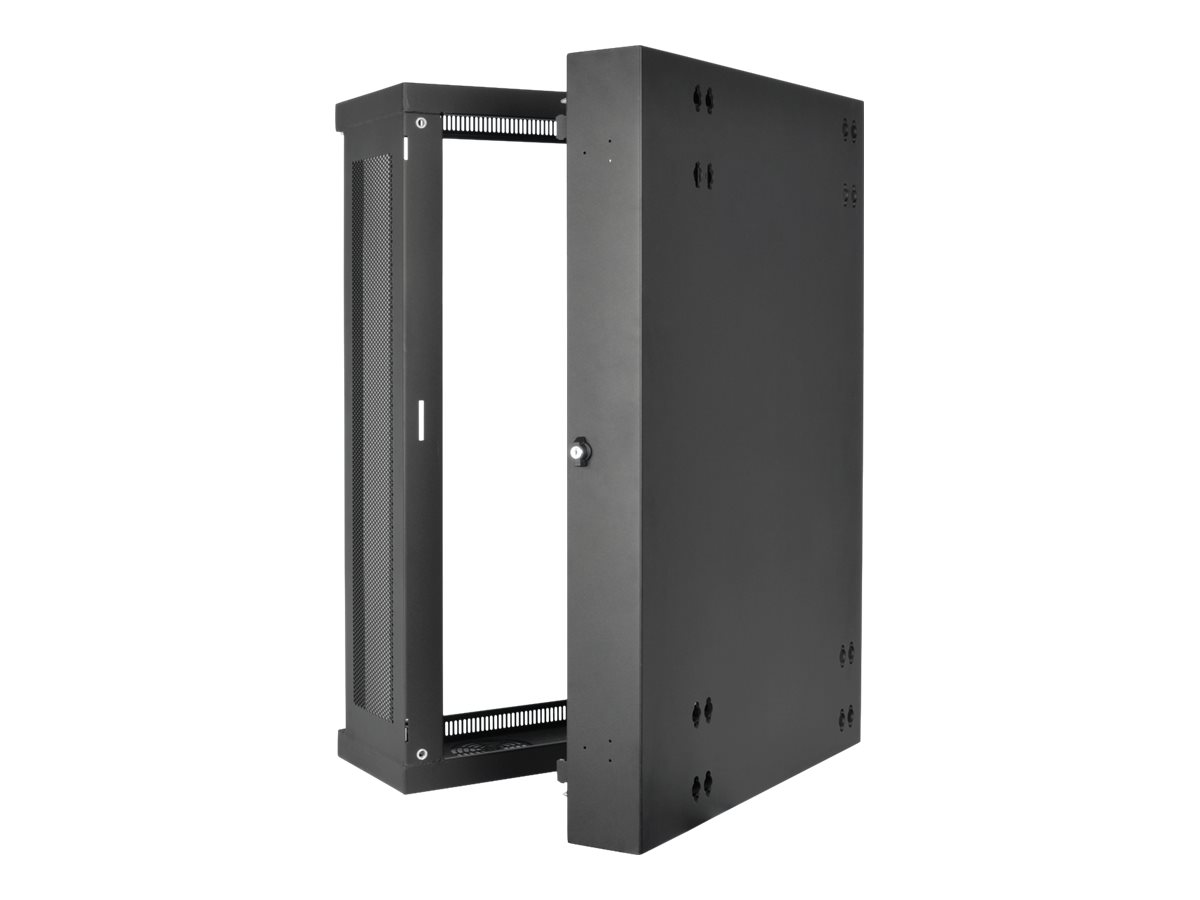

Hinged Cabinet for Convenient Access

? Swings away from the wall to allow easy back-door access to equipment and cabling during installation and maintenance

? Rotate cabinet 180° before mounting to open reversible doors left or right

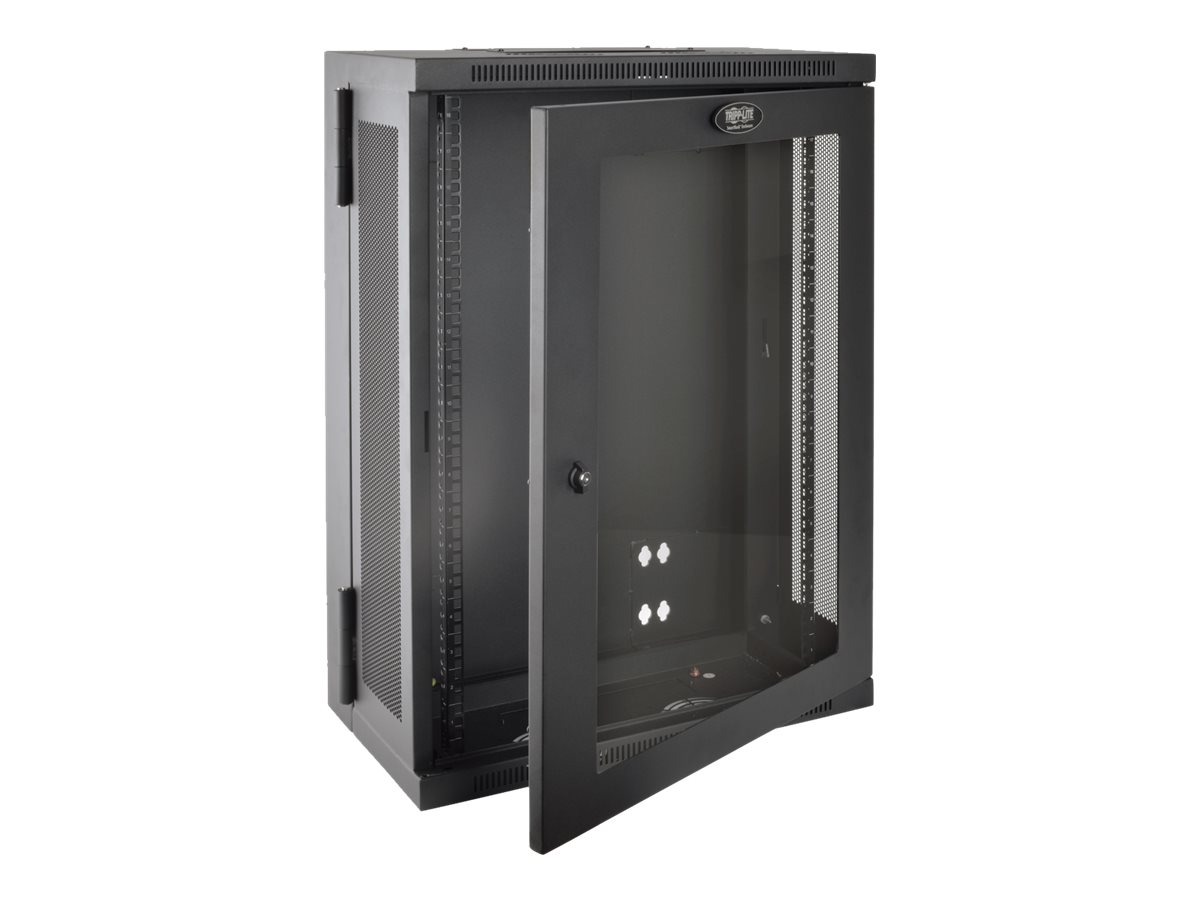

Shatter-Resistant Clear Acrylic Front Window

? Lets you monitor equipment without unlocking the enclosure

? Prevents equipment tampering

? Reduces acoustic noise

? Provides extra visual flair

Keeps Important Equipment Secure

? Side panels and doors lock securely to help prevent damage, tampering or theft

? Vented panels allow generous airflow that keeps equipment cool

? Convenient ports with removable covers allow cable routing through top and bottom

Easy Enclosure and Equipment Installation

? Ships fully assembled for quick installation

? Mounts to wall or rolls on floor with optional SRCASTER caster kit

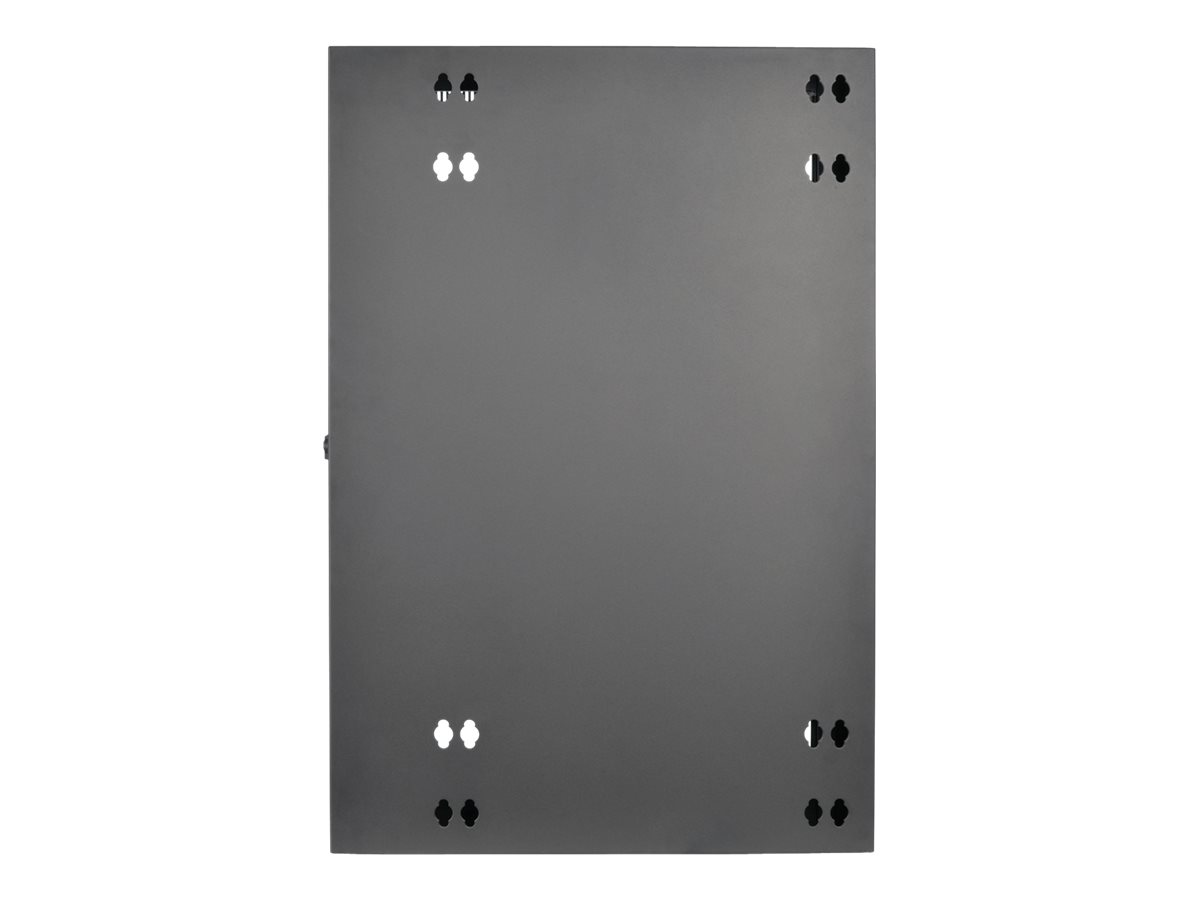

? Wall-mounting holes spaced 16 in. apart for standard wall stud placement

? Vertical mounting rails adjust in 7/8 in. increments to accommodate equipment up to 12.75 in. deep, such as patch panels and shallow network switches

? Rails adjust easily-unscrew them, slide them to desired depth, and screw them back in

? Rails support square-hole or threaded-hole mounting

? Rack spaces numbered for easy reference

Meets Payment Card Industry Standards

? Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance.
