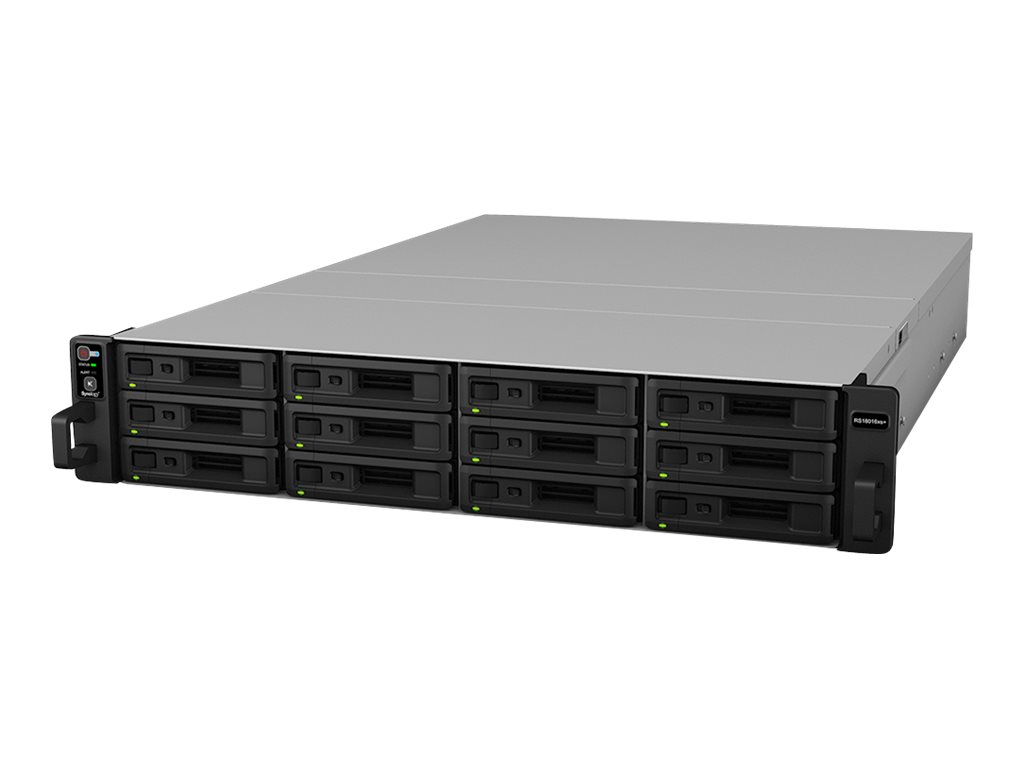

Synology RackStation RS18016xs+
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Synology RackStation RS18016xs+
- NAS server
- 12 bays
- rack-mountable
- SATA 6Gb/s / SAS
- RAID 0, 1, 5, 6, 10, JBOD
- RAM 8 GB
- Gigabit Ethernet
- iSCSI
- 2U
| Additional Details | |
|---|---|
| Mfr Part #: | RS18016XS+ |
| SHI Part #: | 30508246 |
| Category: | Electronic data storage equipment |
| UNSPSC: | 43201800 |
| Manufacturer: | Synology |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Electronic data storage equipment |
| Description | Synology RackStation RS18016xs+ - NAS server - 12 bays - rack-mountable - SATA 6Gb/s / SAS - RAID 0, 1, 5, 6, 10, JBOD - RAM 8 GB - Gigabit Ethernet - iSCSI - 2U |
| Manufacturer | Synology |
| UNSPSC | 43201800 |
| Main Specifications | |
| Dimensions & Weight / Depth | 69.2 cm |
| Dimensions & Weight / Height | 8.8 cm |
| Dimensions & Weight / Weight | 14.5 kg |
| Dimensions & Weight / Width | 43 cm |
| Header / Brand | Synology |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Processor / Processor Number | E3-1230V2 |
| Processor / Type | Xeon |
| Service & Support / Type | 5-year warranty |
| Storage / Rack-mountable | Rack-mountable |
| System Requirements / OS Required |
|
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Sound Emission | 45.1 dBA |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 12 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots |
|
| Interfaces |
|
| General | |
| Depth | 69.2 cm |
| Device Type | NAS server |
| Enclosure Type | Rack-mountable - 2U |
| Height | 8.8 cm |
| Host Connectivity | Gigabit Ethernet |
| Installed Devices / Modules Qty | 0 (installed) / 12 (max) |
| Max Supported Capacity | 96 TB |
| Total Storage Capacity | 0 GB |
| Weight | 14.5 kg () |
| Width | 43 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, RoHS, BSMI Class A |
| Features | Built-in 4 cooling fans |
| TAA Compliant | Yes |
| Networking | |
| Compliant Standards | DLNA CERTIFIED, UPnP |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Encryption Algorithm | AES, SSL, TLS |
| Features | Firewall protection, hardware encryption, LDAP support, WOL, antivirus analysis, IP address filtering, MySQL server, web server, backup server, download client, file sharing, ACL support, iTunes server, DHCP server, FTP server, e-mail server, surveillance station, DLNA Media Server, VPN Server |
| Network / Transport Protocol | PPTP, L2TP, POP3, IMAP |
| Network Services Compatibility | Microsoft CIFS, Network File System (NFS), FTP, Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV) |
| Remote Management Protocol | SNMP, Telnet, SSH |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Consumption Operational | 106.54 Watt |
| Power Device | Internal power supply - hot-plug |
| Power Provided | 500 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Processor / Memory | |
| Max Supported Qty | 1 |
| Number of Cores | Quad-Core |
| Processors Installed | 1 x Intel Xeon E3-1230V2 3.3 GHz |
| RAM | 8 GB (installed) / 32 GB (supported) - DDR3 |
| Security DVR | |
| IP Cameras Supported | 90 |
| Software / System Requirements | |
| OS Required | Microsoft Windows XP or later, Apple MacOS X 10.5 or later, Ubuntu 9.04 or later |
| Storage Operating System | Synology DiskStation Manager |
| TAA Compliant | Yes |
| Storage Controller | |
| Interface Type | SATA 6Gb/s / SAS |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD |
| Type | RAID |
