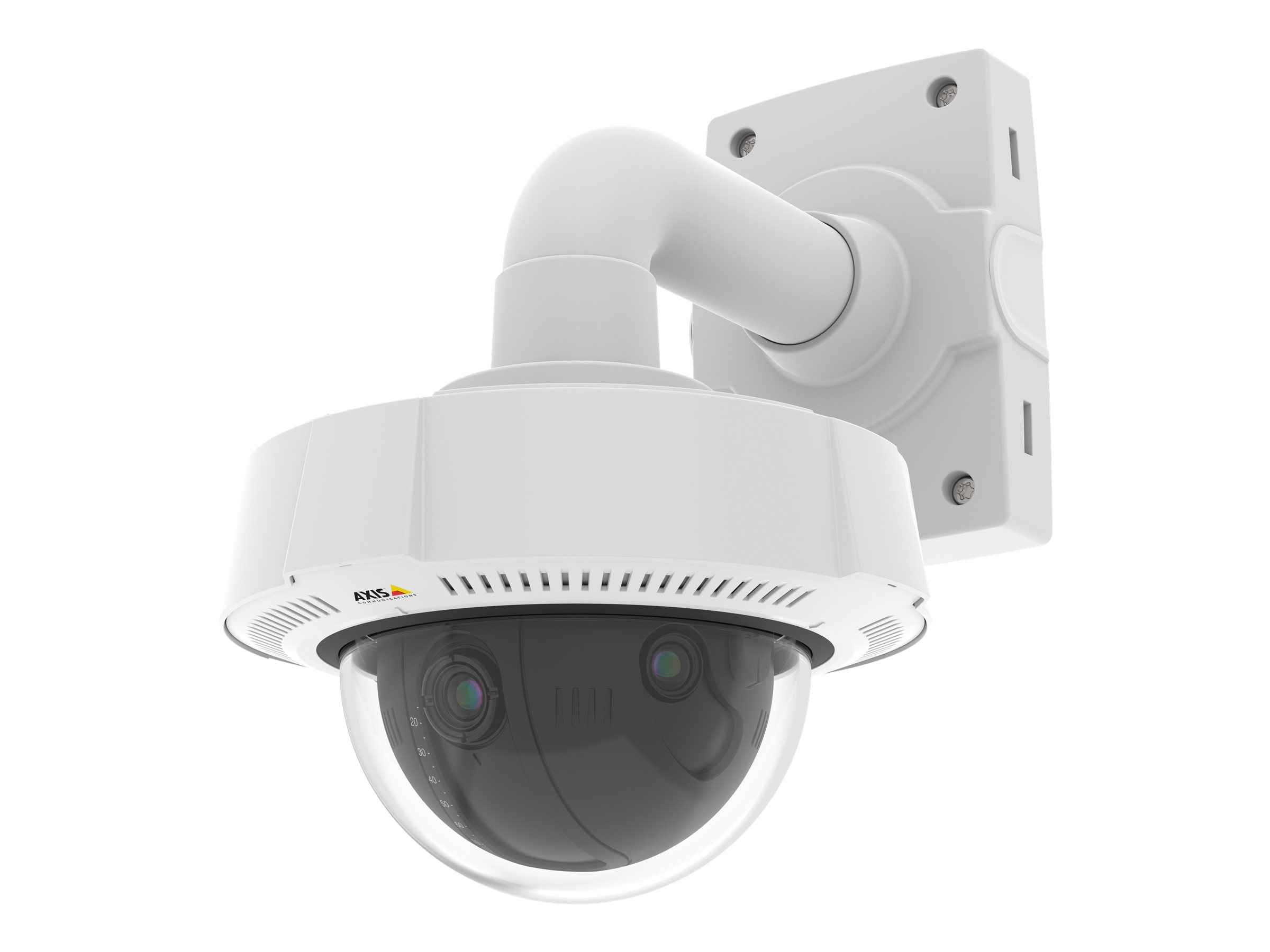

AXIS Q3709-PVE - Network surveillance camera
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
AXIS Q3709-PVE - Network surveillance camera
- dome
- outdoor
- tamper-proof / weatherproof
- color (Day&Night)
- 3 x 4 MP
- 3840 x 2880
- fixed focal
- GbE
- MPEG-4, MJPEG, H.264
- PoE Plus
| Additional Details | |
|---|---|
| Mfr Part #: | 0664-001 |
| SHI Part #: | 30505014 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Axis Communications |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | AXIS Q3709-PVE - Network surveillance camera - dome - outdoor - tamper-proof / weatherproof - color (Day&Night) - 3 x 4 MP - 3840 x 2880 - fixed focal - GbE - MPEG-4, MJPEG, H.264 - PoE Plus |
| Manufacturer | Axis Communications |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 20.5 cm |
| Dimensions & Weight / Height | 17.2 cm |
| Dimensions & Weight / Weight | 2.2 kg |
| Dimensions & Weight / Width | 20.5 cm |
| Header / Brand | Axis |
| Header / Country Kits |
|
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Camera | |
| Digital Video Capture Resolution | 320 x 240, 3840 x 2880 |
| Digital Video Format | MPEG-4, MJPEG, H.264 |
| Exposure Range | 2/5 sec - 1/23250 sec |
| Features | Backlight Compensation (BLC), sharpness control, white balance, auto exposure control, color control, brightness control, Power over Ethernet, contrast control, Wide Dynamic Range (WDR), ONVIF support, Open Network Video Interface Forum (ONVIF), infrared cut filter, Privacy Mask Function, ePTZ, Video Motion Detection Technology, active tampering alarm, Text Caption Overlay, password protection, Variable Bitrate (VBR), Constant Bitrate (CBR) |
| Flash Memory | 768 MB |
| Frame Rate (max) | 30 frames per second |
| Max Digital Video Resolution | 3840 x 2880 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 3 GB |
| Type | Color - Day&Night - fixed - outdoor - tamper-proof / weatherproof |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 10 - 100% (non-condensing) |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| General | |
| Connectivity Technology | Wired |
| Depth | 20.5 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 17.2 cm |
| Localization | Argentina, Australia, Japan, South Korea, Brazil, United Kingdom, United States, Europe |
| Weight | 2.2 kg |
| Width | 20.5 cm |
| Image Sensor | |
| Type | 3 x 4 MP CMOS 3 x 1/2.3" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP |
| Lens Construction | |
| Focal Length | 5 mm |
| Lens Iris | F/2.8 |
| Type | Fixed focal |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | White |
| Compliant Standards | C-Tick, EN 61000-3-2, EN 61000-3-3, EN55024, IEC 60529 IP66, EN 61000-6-1, ICES-003 Class A, NEMA Type 4X, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-30, IK10, FCC Part 15 B Class A, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78, IEC 62262 IK10, EN 50121-4, IEC 62236-4, VCCI Class A, EN 50581, KN24, KCC KN22, AS/NZS CISPR 22, IEC 60950-22, EN 60529, EN 60950-22, UL 60950-22, EN 55022 Class A |
| Panning | |
| Range (degree) | -180 to +180 |
| Power | |
| Power Device | 16.7 Watt |
| Power Requirements | PoE Plus |
| Tilting | |
| Range (degree) | 18 to 75 |
