Dell E514dw - Multifunction printer

Login for Price
Dell E514dw - Multifunction printer
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • B/W
  • laser
  • 210 x 350 mm (original)
  • A4/Legal (media)
  • up to 20 ppm (copying)
Dell E514dw - Multifunction printer
  • B/W
  • laser
  • 210 x 350 mm (original)
  • A4/Legal (media)
  • up to 20 ppm (copying)
  • up to 27 ppm (printing)
  • 250 sheets
  • USB 2.0, LAN, Wi-Fi(n)
  Additional Details
Mfr Part #: 210-AEHJ
SHI Part #: 30497704
Category: Multifunction machines
UNSPSC: 44101503
Manufacturer: Dell
Product Type: Hardware
General Information
CategoryMultifunction machines
DescriptionDell E514dw - Multifunction printer - B/W - laser - 210 x 350 mm (original) - A4/Legal (media) - up to 20 ppm (copying) - up to 27 ppm (printing) - 250 sheets - USB 2.0, LAN, Wi-Fi(n)
ManufacturerDell
UNSPSC44101503
Main Specifications
Dimensions & Weight / Depth39.85 cm
Dimensions & Weight / Height31.65 cm
Dimensions & Weight / Weight10.4 kg
Dimensions & Weight / Width40.9 cm
Document & Media Handling / Standard Media Capacity250 sheets
Header / BrandDell
Miscellaneous / Product ColorBlack
Office Machine / Functions
  • Copier
  • Printer
  • Scanner
Office Machine / Printing Output TypeMonochrome
Office Machine / Printing TechnologyLaser
Office Machine / TypePrinter / copier / scanner
Packaged Quantity1
PC Connectivity / PC Connection
  • LAN
  • USB 2.0
  • Wi-Fi(n)
PC Connectivity / PC Connection AvailabilityYes
Connections

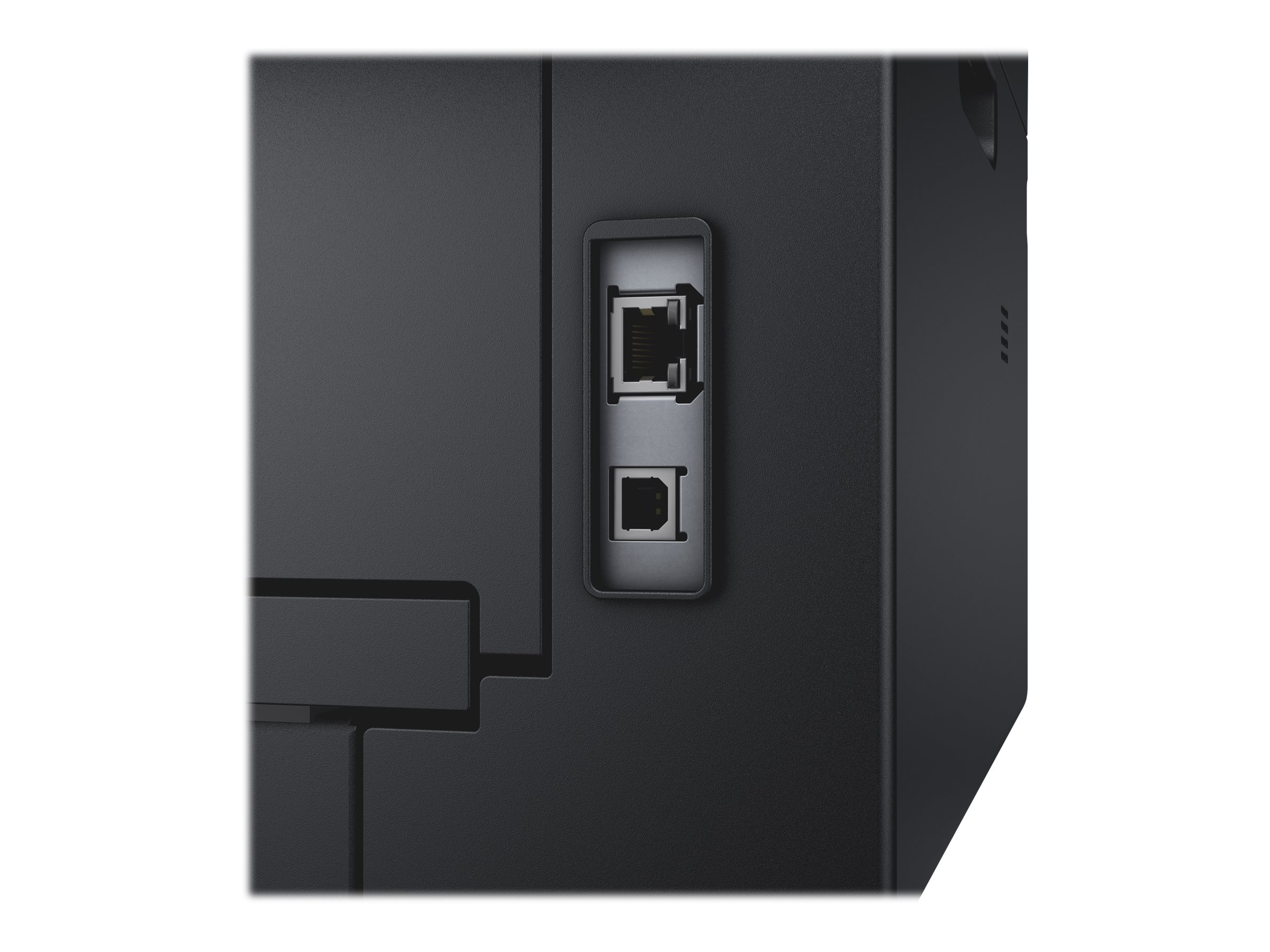

Interfaces
  • 1 x USB 2.0 - 4 pin USB Type B
  • 1 x LAN - RJ-45
Operating System SupportMS Windows Server 2003, MS Windows 7, MS Windows Vista, MS Windows Server 2003 x64 Edition, MS Windows Server 2008, MS Windows Server 2008 R2, Apple Mac OS X 10.7.x, Ubuntu Linux 12.04, Apple Mac OS X 10.8.x, MS Windows Server 2012, Windows 8, Red Hat Enterprise Linux 6 Desktop, Windows 8.1, MS Windows Server 2012 R2, Apple Mac OS X 10.9.x, SUSE Linux Enterprise Desktop 11 (32/64-bit), Apple Mac OS X 10.10
Copying
Copying Features2 on 1, ID Card Copy
Max Copying ResolutionUp to 600 x 600 dpi
Max Copying SpeedUp to 20 ppm
Max Document Enlargement400%
Max Document Reduction25%
Maximum Copies99
Dimensions & Weight
Depth39.85 cm
Height31.65 cm
Weight10.4 kg
Width40.9 cm
Dimensions & Weight (Shipping)
Shipping Depth51.7 cm
Shipping Height49.9 cm
Shipping Weight14.8 kg
Shipping Width62.3 cm
Document & Media Handling
Bypass Feeder Capacity1 sheet
Document & Media Handling Details
  • Input tray - 250 sheets - Legal (216 x 356 mm)/A4 (210 x 297 mm) weight: 60 g/m² - 80 g/m²
  • Bypass tray - 1 sheet weight: 60 g/m² - 105 g/m²
  • Output tray - 100 sheets
Document Feeder Capacity35 sheets
Max Media SizeA4/Legal
Max Media Weight105 g/m²
Max Original Size210 x 350 mm
Min Media Weight60 g/m²
Output Trays Capacity100 sheets
Speed Details
  • Printing: up to 27 ppm (Letter A) - B/W
  • Printing: up to 26 ppm (A4) - B/W
  • Printing: up to 15 ppm (Letter A) - B/W duplex
  • Printing: up to 13 ppm (A4) - B/W duplex
  • Scanning: up to 17 ipm - B/W
  • Scanning: up to 6 ipm - color
  • Copying: up to 20 ppm (Letter A)
  • Copying: up to 19 ppm (A4)
Standard Media Capacity250 sheets
Supported Media SizesANSI A (Letter) (216 x 279 mm), Legal (216 x 356 mm), Executive (184 x 267 mm), A4 (210 x 297 mm), A5 (148 x 210 mm), B5 (176 x 250 mm), A6 (105 x 148 mm), Folio (216 x 330 mm), JIS B5 (182 x 257 mm)
Supported Media TypeEnvelopes, plain paper, labels, recycled paper, bond paper, thick paper
Environmental Parameters
Humidity Range Operating20 - 85% (non-condensing)
Max Operating Temperature32.5 °C
Min Operating Temperature10 °C
Sound Emission33 dB (idle) / 50 dB (operating)
Environmental Standards
ENERGY STAR CertifiedYes
General
Connection AvailabilityYes
Device TypeMultifunction printer
Display2 lines
InterfaceUSB 2.0, LAN, Wi-Fi(n)
Monthly Duty Cycle (max)10000 pages
Office Machine FeaturesScan to folder, scan to FTP
Printing TechnologyLaser - monochrome
Recommended Monthly Volume300 - 1000 pages
Memory
Standard Memory64 MB
Miscellaneous
Compliant StandardsVCCI, C-Tick, NOM, SEMKO, FCC, R&TTE, RoHS, WEEE, FDA, cTUVus, ERP, ICASA
Consumables Included1 x toner cartridge (black) - up to 700 pages
Included AccessoriesUSB cable, phone cable
Power
Power Consumption Sleep5.8 Watt
Voltage RequiredAC 120 V (50/60Hz)
Printing
Automatic DuplexingYes
Max Printing ResolutionUp to 2400 x 600 dpi
Max Printing SpeedUp to 27 ppm
Printer Drivers / EmulationsPCL 6, PostScript 3, XPS
Scanning
Color Depth24-bit
Grayscale Depth8-bit
Interpolated Resolution19200 x 19200 dpi
Optical Resolution600 x 1200 dpi
Scan ElementCIS
