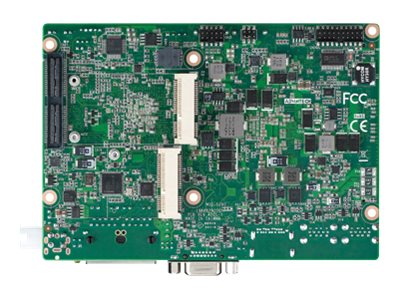

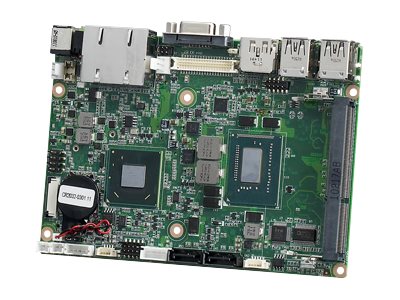

Advantech MIO-5290 - Motherboard
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Advantech MIO-5290 - Motherboard
- 3.5" MI/O-Compact SBC
- Intel Core i7 3517UE
- QM77 Chipset
- USB 3.0
- 2 x Gigabit LAN
- onboard graphics
- HD Audio
| Additional Details | |
|---|---|
| Mfr Part #: | MIO-5290U-S7A1E |
| SHI Part #: | 30258383 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | Advantech |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | Advantech MIO-5290 - Motherboard - 3.5" MI/O-Compact SBC - Intel Core i7 3517UE - QM77 Chipset - USB 3.0 - 2 x Gigabit LAN - onboard graphics - HD Audio |
| Manufacturer | Advantech |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 14.6 cm |
| Dimensions & Weight / Width | 10.2 cm |
| Header / Brand | Advantech |
| Mainboard / Chipset Type | Mobile Intel QM77 Express |
| Mainboard / Compatible Processors |
|
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Processor / Clock Speed | 1.7 GHz |
| Processor / Manufacturer | Intel |
| Processor / Type | Core i7 |
| Video Output / Graphics Processor | Intel HD Graphics 4000 |
| Video Output / Type | Graphics adapter |
| Audio | |
| Audio Codec | Realtek ALC892 |
| Compliant Standards | DirectX, High Definition Audio |
| Type | HD Audio |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 840 g |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | DC-in power connector |
| Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices |
| Features | |
| BIOS Features | ACPI support |
| BIOS Type | AMI |
| Hardware Features | WatchDog Timer, Trusted Platform Module (TPM) 1.2, Intel Active Management Technology (Intel AMT) |
| General | |
| Cache Memory | L3 - 4 MB |
| Chipset Type | Mobile Intel QM77 Express |
| Compatible Processors | Celeron, Core i3, Core i7 |
| Max Processors Qty | 1 |
| Processor | Intel Core i7 3517UE / 1.7 GHz (Dual-Core) |
| Product Type | Motherboard - 3.5" MI/O-Compact SBC |
| Graphics | |
| Graphics Controller | Intel HD Graphics 4000 |
| LAN | |
| Network Controller | Intel 82579LM / Intel 82583V |
| Network Interfaces | 2 x Gigabit Ethernet |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | ACPI, FCC, RoHS |
| Depth | 14.6 cm |
| Included Accessories | CPU cooler, mini Jumper pack |
| Width | 10.2 cm |
| Supported RAM | |
| Bus Clock | 1600 MHz, 1333 MHz |
| Max Size | 8 GB |
| Technology | DDR3, DDR3L |
