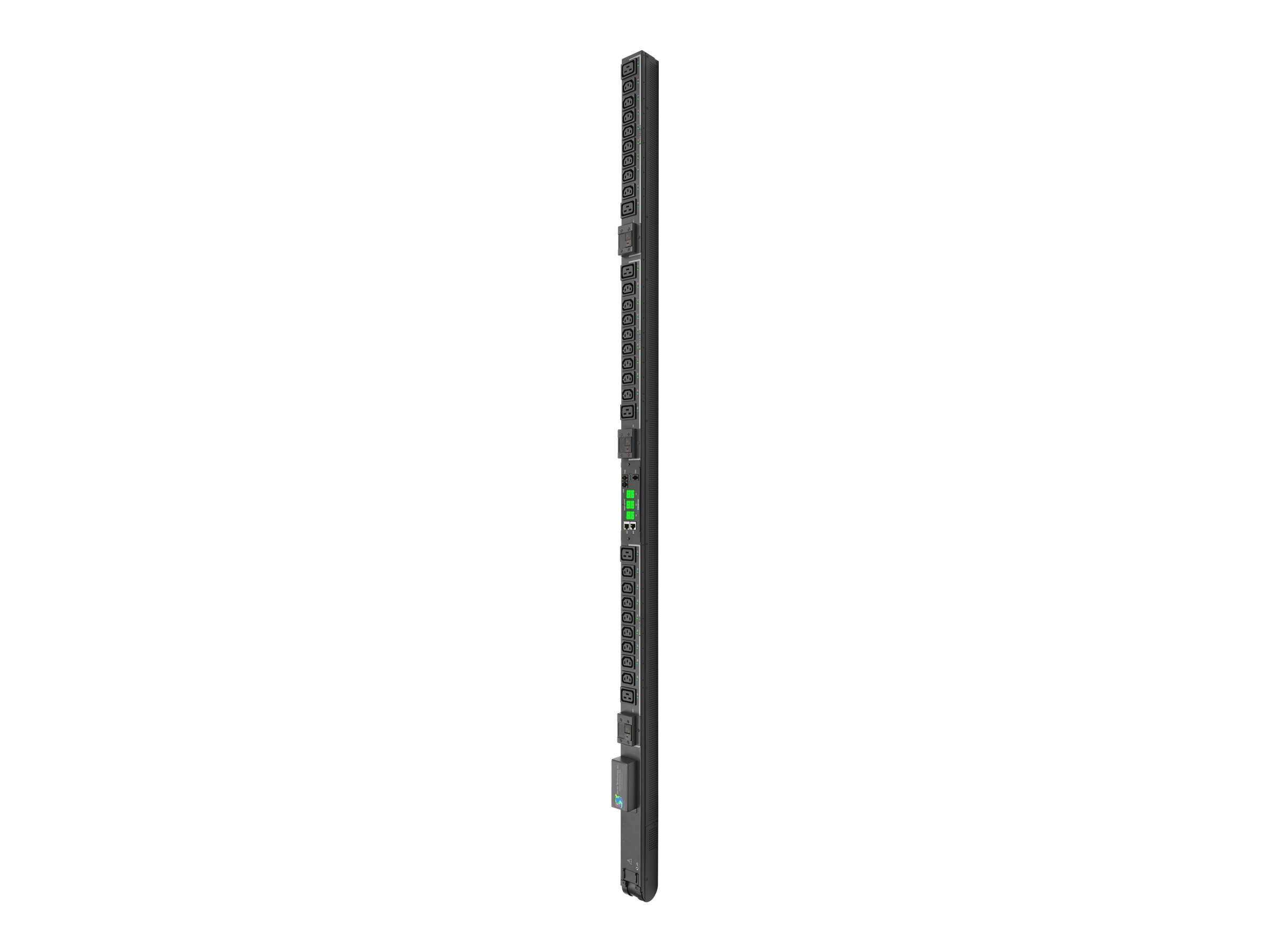

Server Technology PRO2 Switched CDU SEV-4502M
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Server Technology PRO2 Switched CDU SEV-4502M
- Link
- power distribution unit (rack-mountable)
- AC 120/208 V
- 8646 Watt
- Ethernet 10/100, RS-232
- input: NEMA L21-30P
- output connectors: 30 (6 x IEC 60320 C19, 24 x IEC 60320 C13)
- 3 m cord
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | SEV-4502M |
| SHI Part #: | 29871395 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Server Technology PRO2 Switched CDU SEV-4502M - Link - power distribution unit (rack-mountable) - AC 120/208 V - 8646 Watt - Ethernet 10/100, RS-232 - input: NEMA L21-30P - output connectors: 30 (6 x IEC 60320 C19, 24 x IEC 60320 C13) - 3 m cord |
| Manufacturer | Legrand |
| MSRP | $2,338.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5.7 cm |
| Dimensions & Weight / Height | 175.3 cm |
| Dimensions & Weight / Weight | 11.4 kg |
| Dimensions & Weight / Width | 5.6 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Server Technology |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 30 |
| Power Device / Voltage Required | AC 120/208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 5.7 cm |
| Height | 175.3 cm |
| Weight | 11.4 kg |
| Width | 5.6 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 18 cm |
| Shipping Height | 8 cm |
| Shipping Weight | 11.8 kg |
| Shipping Width | 186 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | CISPR 22 Class A, EN55022, EN55024, EMC, RoHS, WEEE, FCC Part 15 A, cTUVus, CAN/CSA-C22.2 No. 60950-1-07+A1:2011 |
| Features | Voltage monitoring, current meter, vertical orientation, active power meter, energy meter, power factor meter, Per Input Power Sensing (PIPS), PDU Power Pivot, high retention locking outlets, Branch Current Monitoring, Auto-Flip Current Display, Branch Circuit Protection, hot-swappable network card |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232 |
| Remote Management Protocol | Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2, SFTP, IPv4, IPv6, LDAP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L21-30P |
| Input Voltage | AC 120/208 V |
| Max Electric Current | 41.5 A |
| Output Voltage | AC 208 V |
| Power Capacity | 8646 Watt |
| Power Output Connectors Details |
|
