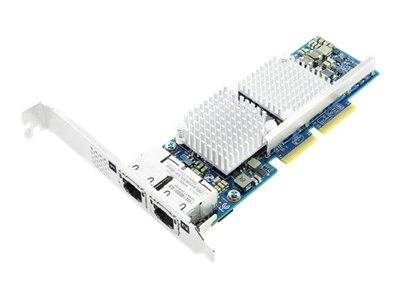

Broadcom NetXtreme II ML2 Dual Port 10GbaseT for IBM System x
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Broadcom NetXtreme II ML2 Dual Port 10GbaseT for IBM System x
- Network adapter
- ML2
- 10Gb Ethernet x 2
- for System x3950 X6
| Additional Details | |
|---|---|
| Mfr Part #: | 00D2026 |
| SHI Part #: | 29843815 |
| Category: | Network interface cards |
| UNSPSC: | 43201404 |
| Manufacturer: | Lenovo |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network interface cards |
| Description | Broadcom NetXtreme II ML2 Dual Port 10GbaseT for IBM System x - Network adapter - ML2 - 10Gb Ethernet x 2 - for System x3950 X6 |
| Manufacturer | Lenovo |
| UNSPSC | 43201404 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.8 cm |
| Dimensions & Weight / Height | 6.9 cm |
| Dimensions & Weight / Width | 1.7 cm |
| Header / Brand | Broadcom |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 10 Gbps |
| Networking / Type | Network adapter |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Compatibility Information | |
| Designed For | Lenovo System x3950 X6 |
| Dimensions & Weight | |
| Depth | 16.8 cm |
| Height | 6.9 cm |
| Width | 1.7 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Max Operating Temperature | 32 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Interfaces | 2 x 10GBase-T - RJ-45 |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | Mezzanine LAN-on-Motherboard Generation 2 (ML2) |
| PCI Specification Revision | PCIe 2.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | VCCI, C-Tick, BSMI, EN 60950, EN 61000-3-2, EN55022, IEC950, RRL, UL 1950, EN 61000-3-3, EN55024, CB, KC, AS/NZS CISPR 22 |
| Networking | |
| Cabling Type | Ethernet 10GBase-T |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP) |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Features | Flow control, IPv6 support, QoS, Jumbo Frames support, IPv4 support, teaming support, GSO, RSS, LACP, TSO, SLB, checksum offload support, MSI-X, PXE 2.1 support, TOE |
| Ports | 10Gb Ethernet x 2 |
