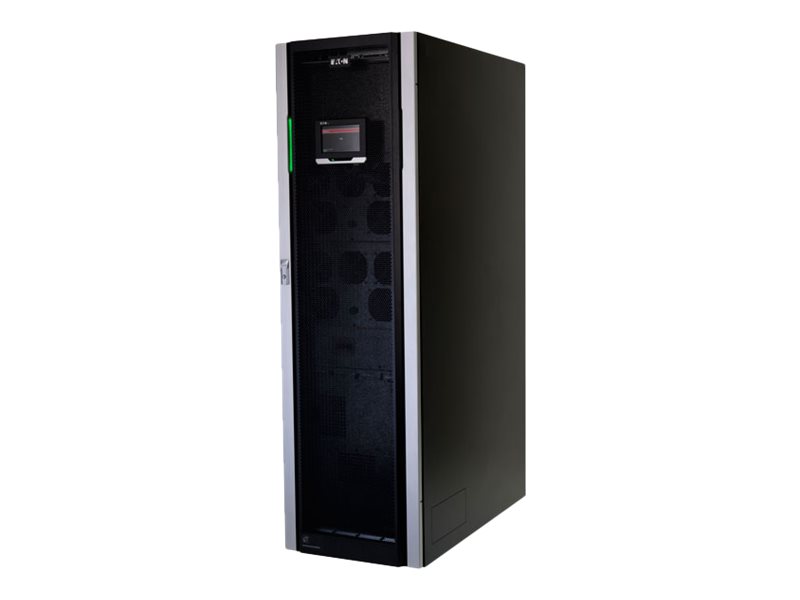

Eaton 93PM - UPS - AC 220/230/240/380/400/415 V
MSRP$74,143.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Eaton 93PM - UPS - AC 220/230/240/380/400/415 V
- 100 kW
- 60000 VA
- 3-phase
- no battery
- Ethernet 10/100, USB
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $74,143.00 |
| Mfr Part #: | 9PG06D0009H20R2 |
| SHI Part #: | 29785003 |
| Category: | Serial cables |
| UNSPSC: | 43202222 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial cables |
| Description | Eaton 93PM - UPS - AC 220/230/240/380/400/415 V - 100 kW - 60000 VA - 3-phase - no battery - Ethernet 10/100, USB |
| Manufacturer | Eaton |
| MSRP | $74,143.00 |
| UNSPSC | 43202222 |
| Main Specifications | |
| Dimensions & Weight / Depth | 91.4 cm |
| Dimensions & Weight / Height | 187.6 cm |
| Dimensions & Weight / Weight | 338 kg |
| Dimensions & Weight / Width | 56 cm |
| General / Subcategory | UPS |
| Header / Brand | Eaton |
| Miscellaneous / Product Color |
|
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Power Capacity (VA) | 60000 VA |
| Power Device / Voltage Required | AC 220/230/240/380/400/415 V |
| Product Type | UPS |
| Service & Support / Type | 1-year warranty |
| Battery | |
| Type | No battery |
| Dimensions & Weight | |
| Depth | 91.4 cm |
| Height | 187.6 cm |
| Weight | 338 kg |
| Width | 56 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Sound Emission | 65 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 3 expansion slot |
| Interfaces |
|
| General | |
| Device Type | UPS - external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62040-3, IEC 62040-2, IEC 60950-1, IEC 61000-2-2, Directive 2009/125/EC, Directive 2006/66/EC, Directive 2002/95/EC, EMC 2004/108/EC, LVD 2006/95/EC, IEC 62040-1, EN 62040-1:2008, EN 62040-2:2006, WEEE 2002/96/EC, Directive 94/62/EC |
| Features | Pulse-width modulation (PWM) support, Advance Battery Management (ABM), audible alarm, LCD display, built-in static bypass, Soft Start Technology (SST), IGBT rectifier |
| Networking | |
| Remote Management Interface | Ethernet 10/100, USB |
| Remote Management Protocol | SNMP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Efficiency | 99% |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | Hardwire 4-wire (3PH + PEN) |
| Input Voltage | AC 220/230/240/380/400/415 V |
| Input Wiring | 3-phase |
| Output Voltage | AC 220/230/240/380/400/415 V 50/60 Hz |
| Power Capacity | 100 kW / 60000 VA |
| Power Factor (PF) | 0.99 |
| Power Output Connectors Details | 1 x hardwire 4-wire (3PH + PEN) |
