Server Technology PRO2 Switched POPS STV-6502E
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

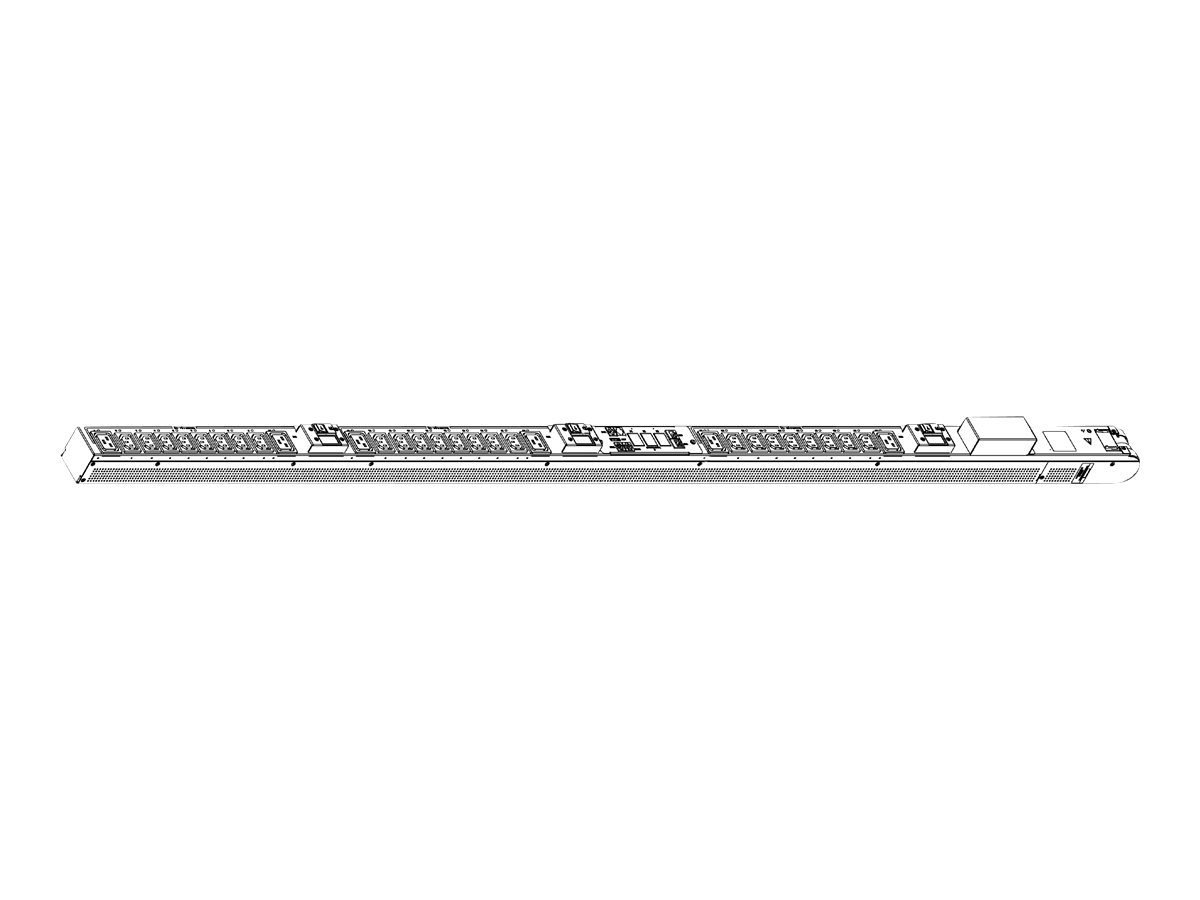

Server Technology PRO2 Switched POPS STV-6502E
- Master
- power distribution unit (rack-mountable)
- AC 208 V
- 8.6 kW
- Ethernet 10/100, RS-232
- input: NEMA L15-30P
- output connectors: 30 (6 x IEC 60320 C19, 24 x IEC 60320 C13)
- North America
| Additional Details | |
|---|---|
| Mfr Part #: | STV-6502E |
| SHI Part #: | 29713136 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Server Technology PRO2 Switched POPS STV-6502E - Master - power distribution unit (rack-mountable) - AC 208 V - 8.6 kW - Ethernet 10/100, RS-232 - input: NEMA L15-30P - output connectors: 30 (6 x IEC 60320 C19, 24 x IEC 60320 C13) - North America |
| Manufacturer | Legrand |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5.8 cm |
| Dimensions & Weight / Height | 175.3 cm |
| Dimensions & Weight / Width | 5.6 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Server Technology |
| Header / Country Kits | North America |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 30 |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 5.8 cm |
| Height | 175.3 cm |
| Width | 5.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Localization | North America |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 2 years |
| Miscellaneous | |
| Compliant Standards | UL, IEC 60950-1, UL 489, cTUVus, FCC Part 15 B 15.109A, UL 60950-1:2007, UL 248, CAN/CSA-C22.2 No. 60950-1-07+A1:2011+A2:2014, FCC Part 15 B 15.107A |
| Features | LED display, thermal monitoring, voltage monitoring, humidity monitoring, current meter, vertical orientation, active power meter, energy meter, power factor meter, Per Input Power Sensing (PIPS), Per Outlet Power Sensing (POPS), crest factor meter, Branch Circuit Protection |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232 |
| Remote Management Protocol | SNMP, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SSH-2, CLI, SFTP, SMTP, TACACS+, LDAP, RADIUS |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Input Connectors | Power NEMA L15-30P |
| Input Voltage | AC 208 V |
| Max Electric Current | 30 A |
| Output Voltage | AC 208 V |
| Power Capacity | 8.6 kW |
| Power Output Connectors Details |
|
