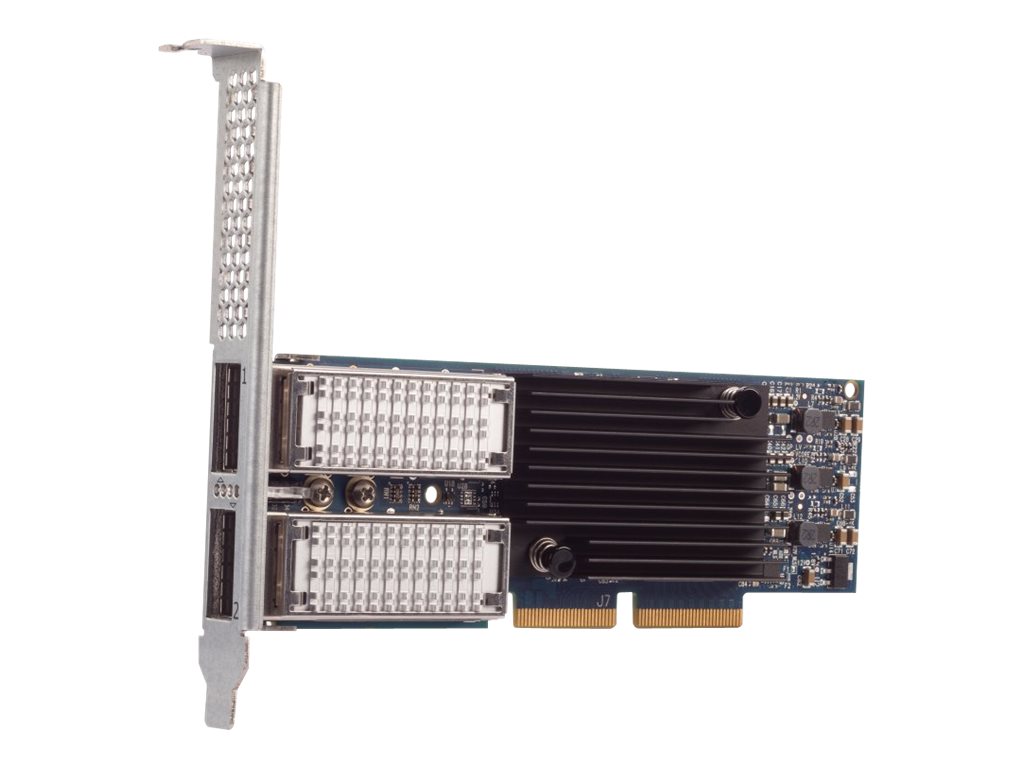

Mellanox ConnectX-3 Pro ML2 2x40GbE/FDR VPI Adapter for Lenovo System x
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Mellanox ConnectX-3 Pro ML2 2x40GbE/FDR VPI Adapter for Lenovo System x
- Network adapter
- ML2 low profile
- 40Gb Ethernet / Infiniband FDR QSFP x 2
- for NeXtScale nx360 M5; System x3550 M5; x3650 M5; x3750 M4; x3850 X6; x3950 X6
| Additional Details | |
|---|---|
| Mfr Part #: | 00FP650 |
| SHI Part #: | 29452755 |
| Category: | Network interface cards |
| UNSPSC: | 43201404 |
| Manufacturer: | Lenovo |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network interface cards |
| Description | Mellanox ConnectX-3 Pro ML2 2x40GbE/FDR VPI Adapter for Lenovo System x - Network adapter - ML2 low profile - 40Gb Ethernet / Infiniband FDR QSFP x 2 - for NeXtScale nx360 M5; System x3550 M5; x3650 M5; x3750 M4; x3850 X6; x3950 X6 |
| Manufacturer | Lenovo |
| UNSPSC | 43201404 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.8 cm |
| Dimensions & Weight / Height | 6.9 cm |
| Dimensions & Weight / Weight | 208 g |
| Dimensions & Weight / Width | 1.7 cm |
| Header / Brand | Mellanox |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 56 Gbps |
| Networking / Type | Network adapter |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Compatibility Information | |
| Designed For |
|
| Dimensions & Weight | |
| Depth | 16.8 cm |
| Height | 6.9 cm |
| Weight | 208 g |
| Width | 1.7 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 2 x 40Gb Ethernet / InfiniBand FDR - QSFP |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | Mezzanine LAN-on-Motherboard Generation 2 (ML2) |
| PCI Specification Revision | PCIe 1.1, PCIe 2.0, PCIe 3.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | EN55022, EN55024, EN 60950-1, EN 61000-3-2, EN 61000-3-3, IEC 60950-1, UL 60950-1, CSA C22.2 No. 60950-1-07, VCCI, C-Tick, KCC, BSMI, FCC Part 15 A |
| Networking | |
| Capacity | MAC addresses per port: 128 |
| Compliant Standards | IBTA 1.2.1, IEEE 1588v2, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ba |
| Connectivity Technology | Wired |
| Data Link Protocol | 40 Gigabit Ethernet, InfiniBand |
| Data Transfer Rate | 56 Gbps |
| Features | SR-IOV, InfiniBand FDR Link support, VPI, RDMA support, UEFI support, QoS, MIB, EoIB |
| Network / Transport Protocol | TCP/IP, UDP/IP, IPoIB, uDAPL |
| Ports | 40Gb Ethernet / Infiniband FDR QSFP x 2 |
| Remote Management Protocol | RMON 2, RMON |
