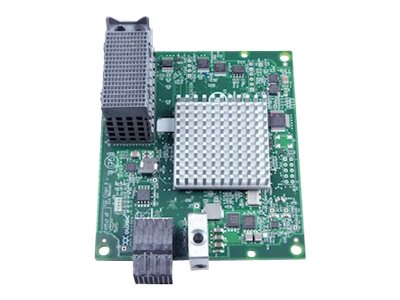

Lenovo Flex System FC3172
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Lenovo Flex System FC3172
- Network adapter
- PCIe 2.0 x4
- 8Gb Fibre Channel x 2
- for Flex System p260 Compute Node; x220 Compute Node; x240 Compute Node; x440 Compute Node
| Additional Details | |
|---|---|
| Mfr Part #: | 69Y1938 |
| SHI Part #: | 29452539 |
| Category: | Network interface cards |
| UNSPSC: | 43201404 |
| Manufacturer: | Lenovo |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network interface cards |
| Description | Lenovo Flex System FC3172 - Network adapter - PCIe 2.0 x4 - 8Gb Fibre Channel x 2 - for Flex System p260 Compute Node; x220 Compute Node; x240 Compute Node; x440 Compute Node |
| Manufacturer | Lenovo |
| UNSPSC | 43201404 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8 cm |
| Dimensions & Weight / Weight | 13 g |
| Dimensions & Weight / Width | 10 cm |
| Header / Brand | Lenovo |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | 8Gb Fibre Channel |
| Networking / Type | Network adapter |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Compatibility Information | |
| Designed For |
|
| Dimensions & Weight | |
| Depth | 8 cm |
| Weight | 13 g |
| Width | 10 cm |
| Expansion / Connectivity | |
| Compatible Slots | 1 x PCI Express 2.0 x4 |
| Interfaces | 2 x network - 8Gb Fibre Channel |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.0 x4 |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, EN 61000-3-2, VCCI Class A ITE, EN55024, EN55022 Class A, ICES-003 Class A, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, UL 60950-1 Second Edition, FCC Part 15 A, FCC CFR47 Part 15 B, GOST-R, ANSI C63.4, IEC 60950-1 Second Edition |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | 8Gb Fibre Channel |
| Features | Auto-negotiation, full duplex mode, UEFI support |
| Fibre Channel | FC-AL, SCSI-FCP |
| Ports | 8Gb Fibre Channel x 2 |
| Remote Management Protocol | SMI-S |
| Software / System Requirements | |
| OS Required | IBM AIX 5.3, Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, SuSE Linux Enterprise Server 10 for x86/AMD64/Intel EM64T, Microsoft Windows Server 2008 Datacenter x64 Edition, Microsoft Windows Server 2008 Enterprise x64 Edition, Microsoft Windows Server 2008 Standard x64 Edition, IBM AIX 6.1, Microsoft Windows HPC Server 2008, IBM AIX 7.1, VMware ESX 4.1, VMware ESXi 4.1, Microsoft Windows Web Server 2008 x64 Edition, Red Hat Enterprise Linux 5 x64 Edition, Red Hat Enterprise Linux 6 x64 Edition |
