Samsung Techwin SNF-8010
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

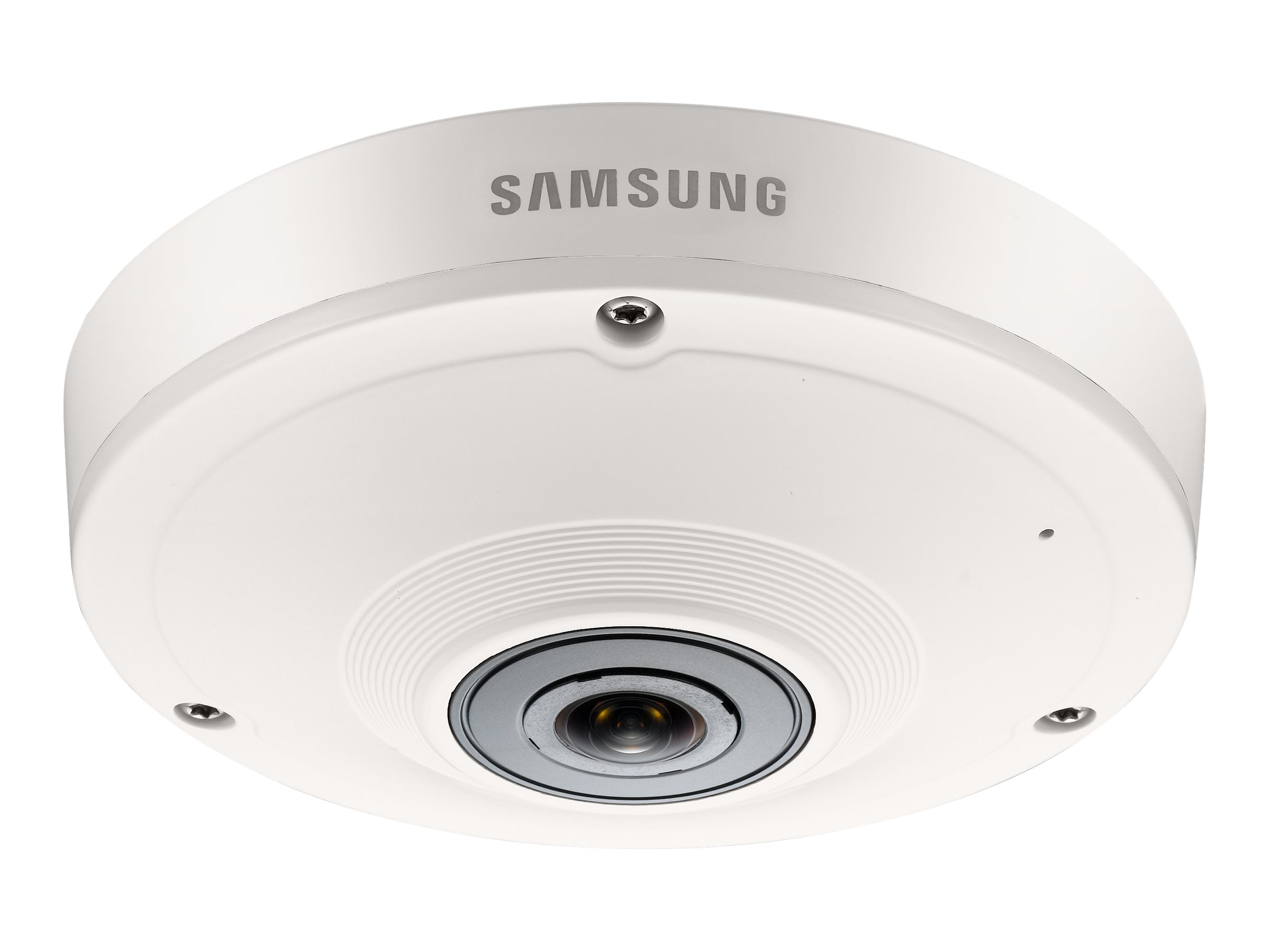

Samsung Techwin SNF-8010
- Network surveillance camera
- dome
- color (Day&Night)
- 6 MP
- 2560 x 2048
- M12 mount
- fixed focal
- audio
- LAN 10/100
- MPEG-4, MJPEG, H.264, AVC
- DC 12 V / PoE
| Additional Details | |
|---|---|
| Mfr Part #: | SNF-8010 |
| SHI Part #: | 29447941 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Samsung |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Samsung Techwin SNF-8010 - Network surveillance camera - dome - color (Day&Night) - 6 MP - 2560 x 2048 - M12 mount - fixed focal - audio - LAN 10/100 - MPEG-4, MJPEG, H.264, AVC - DC 12 V / PoE |
| Manufacturer | Samsung |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 14.59 cm |
| Dimensions & Weight / Height | 4.96 cm |
| Dimensions & Weight / Weight | 780 g |
| Dimensions & Weight / Width | 14.59 cm |
| Header / Brand | Samsung |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Format | MPEG-4, MJPEG, H.264, AVC |
| Digital Zoom | 16 |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), white balance, progressive scanning, image flip, image mirror, Wide Dynamic Range (WDR), 2D Noise Reduction Technology, Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), adjustable gain control, Panorama Capture, Intelligent Video Analysis (IVA), tamper-detection, Automatic Tracing White (ATW), notification picture to E-mail, digital PTZ function, notification picture to FTP, ONVIF V2.2 (Profile S) support, Event Notification, 360° monitoring, fisheye lens, Double Panorama Capture, 3D Noise Filtering, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming |
| Max Digital Video Resolution | 2560 x 2048 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - fixed |
| Video Capture |
|
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -10 °C |
| Relative Humidity (operating) | 0 - 90% |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Support | Yes: two-way audio capability, built-in microphone |
| Connectivity Technology | Wired |
| Depth | 14.59 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 4.96 cm |
| Weight | 780 g |
| Width | 14.59 cm |
| Image Sensor | |
| Effective Pixels | 2560 x 2048 |
| Type | 6 MP CMOS 1/1.8" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, HTTP over SSL, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, SSM, PIM-SM |
| Lens Construction | |
| Focal Length | 1.14 mm |
| Focus Adjustment | Manual |
| Horizontal Field of View (degree) | 187 |
| Lens Iris | F/2.5 |
| Min Focus Distance | 30 cm |
| Type | M12 mount - fixed focal |
| Vertical Field of View (degree) | 187 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | Ivory |
| Compliant Standards | UL, GOST, FCC, RoHS, cULus |
| Power | |
| Power Device | 10.3 Watt |
| Power Requirements | DC 12 V / PoE |
| Software / System Requirements | |
| OS Required | Microsoft Windows XP, Microsoft Windows 7, Microsoft Windows Vista, Apple MacOS X Lion 10.7, Windows 8, Apple OS X 10.8 Mountain Lion |
| Software Included | Smart Viewer |
