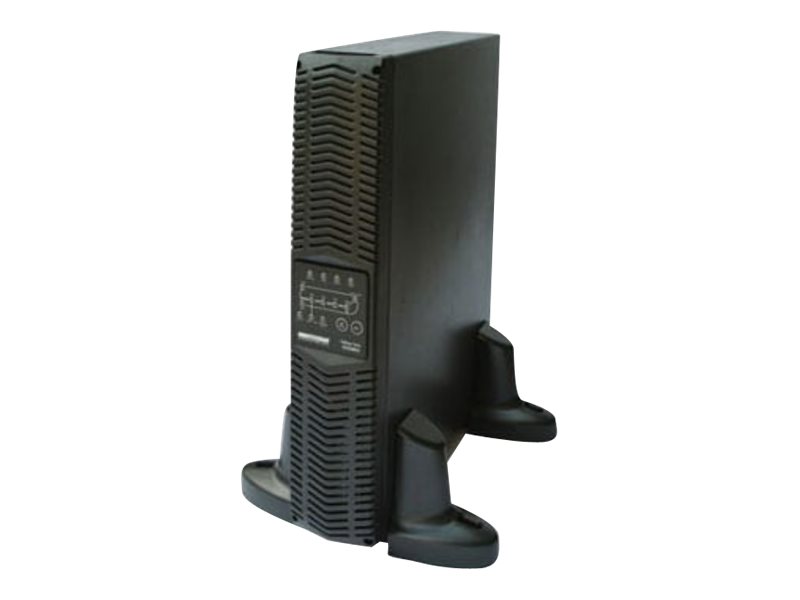

Minuteman Endeavor ED8000RT-XFR
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Minuteman Endeavor ED8000RT-XFR
- Transformer (rack-mountable / external)
- AC 208/240 V
- 6200 Watt
- 6889 VA
- 1-phase
- PFC
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | ED8000RT-XFR |
| SHI Part #: | 29416147 |
| Category: | Power adapters or inverters |
| UNSPSC: | 39121006 |
| Manufacturer: | Minuteman UPS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power adapters or inverters |
| Description | Minuteman Endeavor ED8000RT-XFR - Transformer (rack-mountable / external) - AC 208/240 V - 6200 Watt - 6889 VA - 1-phase - PFC |
| Manufacturer | Minuteman UPS |
| MSRP | $1,445.00 |
| UNSPSC | 39121006 |
| Main Specifications | |
| Dimensions & Weight / Depth | 65.9 cm |
| Dimensions & Weight / Height | 13.06 cm |
| Dimensions & Weight / Weight | 72 kg |
| Dimensions & Weight / Width | 44 cm |
| General / Subcategory | Power converters, splitters and accessories |
| Header / Brand | MINUTEMAN |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / Power Capacity (VA) | 6889 VA |
| Power Device / Voltage Required | AC 208/240 V |
| Product Type | Transformer |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 65.9 cm |
| Height | 13.06 cm |
| Weight | 72 kg |
| Width | 44 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 78 cm |
| Shipping Height | 27.6 cm |
| Shipping Weight | 89 kg |
| Shipping Width | 60 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 60 dBA |
| General | |
| Device Type | Transformer - Power Factor Correction (PFC) - rack-mountable / external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, UL 1778, cTUVus, CSA 22.2, RoHS2, Directive 2011/65/EU |
| Features | LCD display, hot-swappable batteries, Step-Down Transformer, DSP technology |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Efficiency | 95%+ |
| Frequency Required | 50/60 Hz |
| Input Connectors | Terminal block |
| Input Voltage | AC 208/240 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 120/208 V ± 3% |
| Output Waveform | Sinewave |
| Power Capacity | 6200 Watt / 6889 VA |
| Power Output Connectors Details | 8 x power NEMA 5-15R/20R |
| Surge Energy Rating | 1050 Joules |
| Surge Suppression | Yes |
| Sustainability Information | |
| ENERGY STAR | Yes |
