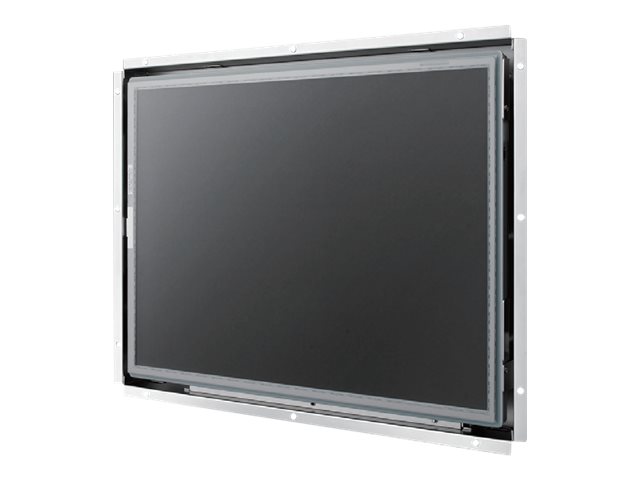

Advantech IDS-3117 - LED monitor
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Advantech IDS-3117 - LED monitor
- 17"
- open frame
- 1280 x 1024 SXGA
- 350 cd/m²
- 30 ms
- DVI-D, VGA
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | IDS-3117N-35SXA1E |
| SHI Part #: | 29316124 |
| Category: | Flat panel displays |
| UNSPSC: | 43211902 |
| Manufacturer: | Advantech |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Flat panel displays |
| Description | Advantech IDS-3117 - LED monitor - 17" - open frame - 1280 x 1024 SXGA - 350 cd/m² - 30 ms - DVI-D, VGA |
| Manufacturer | Advantech |
| MSRP | $388.00 |
| UNSPSC | 43211902 |
| Main Specifications | |
| Dimensions & Weight / Depth | 3.34 cm |
| Dimensions & Weight / Height | 34.47 cm |
| Dimensions & Weight / Weight | 3.45 kg |
| Dimensions & Weight / Width | 40 cm |
| Display / Diagonal Size | 17 in |
| Display / Diagonal Size (metric) | 43.2 cm |
| Display / Interface |
|
| Display / Native Resolution | 1280 x 1024 |
| Display / Type | LED-backlit LCD monitor |
| Header / Brand | Advantech |
| Image Brightness | 350 cd/m² |
| Miscellaneous / Compliant Standards |
|
| Miscellaneous / Product Color | Gray |
| Packaged Quantity | 1 |
| Service & Support / Type | 2-year warranty |
| Connectivity | |
| Interfaces |
|
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -20 °C |
| General | |
| Aspect Ratio | 5:4 |
| Backlight Technology | LED backlight |
| Brightness | 350 cd/m² |
| Color Support | 16.7 million colors |
| Diagonal Size | 17" |
| Dimensions (WxDxH) | 40 cm x 3.34 cm x 34.47 cm |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Horizontal Viewing Angle | +85 / -85 |
| Native Resolution | SXGA 1280 x 1024 |
| Response Time | 30 ms |
| Screen Coating | 3H Hard Coating |
| Vertical Viewing Angle | +80 / -80 |
| Weight | 3.45 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 2 years |
| Miscellaneous | |
| Backlight Life | 50,000 hours |
| Compliant Standards | CCC, FCC, RoHS |
| Power | |
| Input Voltage | AC 100/240 V / DC 12 V |
| Power Consumption (Typical) | 60 Watt |
