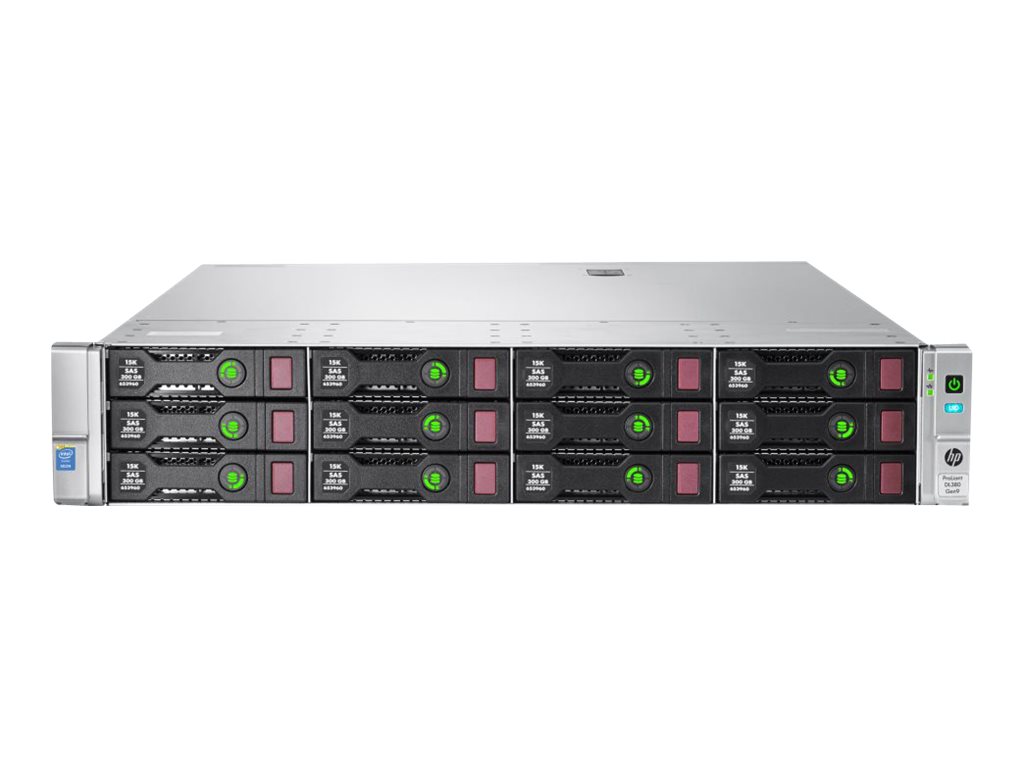

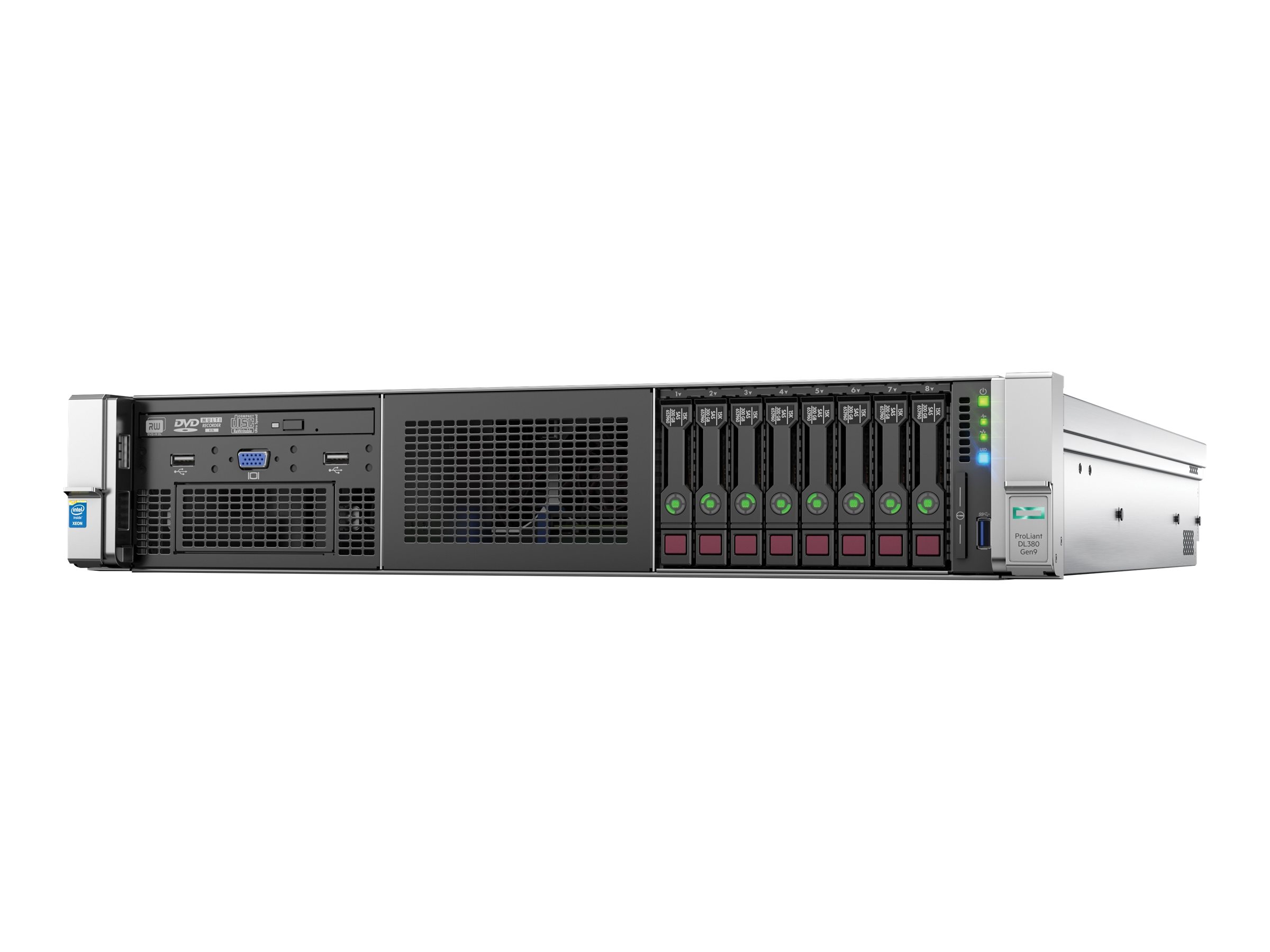

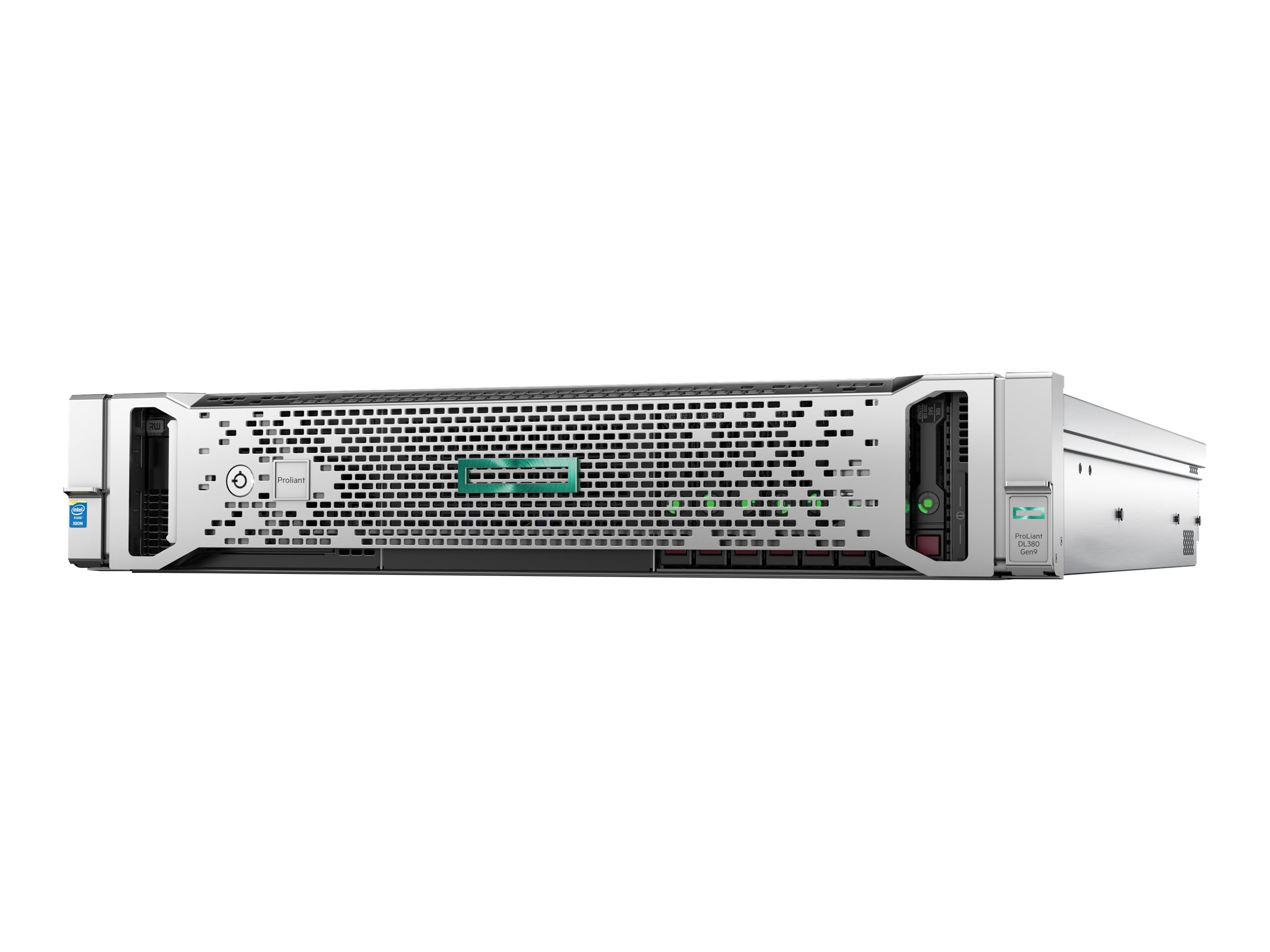

HPE ProLiant DL380 Gen9 Base
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
HPE ProLiant DL380 Gen9 Base
- Server
- rack-mountable
- 2U
- 2-way
- 1 x Xeon E5-2620V3 / 2.4 GHz
- RAM 16 GB
- SAS
- hot-swap 3.5" bay(s)
- no HDD
- G200eH2
- GigE
- monitor: none
| Additional Details | |
|---|---|
| Mfr Part #: | 752688-B21 |
| SHI Part #: | 29282240 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
CD/DVD/Blu-Ray Drives
- 8x/8x/5x
- Serial ATA
- internal
- HP jack black
- for Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10
MSRP $161.00
$98.00
- DVD±RW (±R DL) / DVD-RAM
- USB
- external
- for Apollo 4200 Gen10; Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10
MSRP $203.00
$193.00
Monitors and Displays
- USB
- 18.51" (18.51" viewable)
- rack-mountable
- 1600 x 1200 @ 60 Hz
- 187 cd/m²
- 700:1
MSRP $1,733.00
$889.00
- USB
- Japanese
- 18.51" (18.51" viewable)
- rack-mountable
- 1600 x 1200 @ 60 Hz
- 187 cd/m²
MSRP $2,604.00
$2,188.00
| General Information | |
|---|---|
| Category | Servers |
| Description | HPE ProLiant DL380 Gen9 Base - Server - rack-mountable - 2U - 2-way - 1 x Xeon E5-2620V3 / 2.4 GHz - RAM 16 GB - SAS - hot-swap 3.5" bay(s) - no HDD - G200eH2 - GigE - monitor: none |
| Manufacturer | Hewlett Packard Enterprise |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Rack-mountable |
| Chassis / Server Storage Bays | Hot-swap |
| Chassis / Server Swappable Drive Interface | SAS |
| Dimensions & Weight / Depth | 73.02 cm |
| Dimensions & Weight / Height | 8.73 cm |
| Dimensions & Weight / Weight | 14.759 kg |
| Dimensions & Weight / Width | 44.55 cm |
| Display / Type | None. |
| Header / Brand | HPE |
| Header / Country Kits | Worldwide (excluding China, Japan) |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.4 GHz |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 6-core |
| Processor / Processor Number | E5-2620V3 |
| Processor / Type | Xeon |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Memory Speed | 1866 MHz |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 0 GB |
| System / Type | Server |
| Video Output / Graphics Processor | Matrox G200eH2 |
| Cache Memory | |
| Cache Per Processor | 15 MB |
| Installed Size | L3 cache - 15 MB |
| Dimensions & Weight | |
| Depth | 73.02 cm |
| Height | 8.73 cm |
| Weight | 14.759 kg |
| Width | 44.55 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Sound Emission | 39 dBA |
| Expansion / Connectivity | |
| Bays | 12 (total) / 12 (free) x hot-swap 3.5" LFF |
| Interfaces |
|
| Slots |
|
| General | |
| Embedded Security | Trusted Platform Module (TPM 1.2) Security Chip |
| Hot-Swap Bays Qty | 12 |
| Localization | Region: Worldwide (excluding China, Japan) |
| Product Form Factor | Rack-mountable - 2U |
| Recommended Use | Small business, corporate business |
| Server Scalability | 2-way |
| Type | Server |
| Graphics Controller | |
| Graphics Processor | Matrox G200eH2 |
| Type | Integrated |
| Video Interfaces | VGA |
| Hard Drive | |
| Type | No HDD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Compliant Standards | ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, CNS 13438 |
| Features | Administrator password, power-on password, serial port I/O control, UEFI BIOS |
| Included Accessories | Cable management arm, HP Easy Install Rails |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Controller | HP 331i |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Features | Wake on LAN (WoL), PXE support |
| Interface (Bus) Type | PCI Express x2 |
| Remote Management Controller | Integrated Lights-Out 4 |
| Type | Integrated |
| Operating System / Software | |
| OS Certified | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris, Citrix XenServer, Canonical Ubuntu |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Device Type | Power supply - hot-plug |
| Efficiency | 94% |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 800 watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V |
| Processor / Chipset | |
| Clock Speed | 2.4 GHz |
| CPU | Intel Xeon E5-2620V3 |
| CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 2 |
| Max Turbo Speed | 3.2 GHz |
| Number of Cores | 6-core |
| RAM | |
| Configuration Features | 1 x 16 GB |
| Effective Memory Speed | 1866 MHz |
| Features | Registered, HP SmartMemory |
| Form Factor | DIMM 288-pin |
| Installed Size | 16 GB (installed) / 384 GB (max) |
| RAM Supported |
|
| Slots | 24 (total) / 23 (empty) |
| Technology | DDR4 SDRAM |
| Storage Controller | |
| Buffer Size | 4 GB |
| Channel Qty | 16 |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM |
| Storage Controller Name | HP Smart Array P840 with 4GB FBWC |
| Type | 1 x RAID - plug-in card - PCIe 3.0 x8 |
