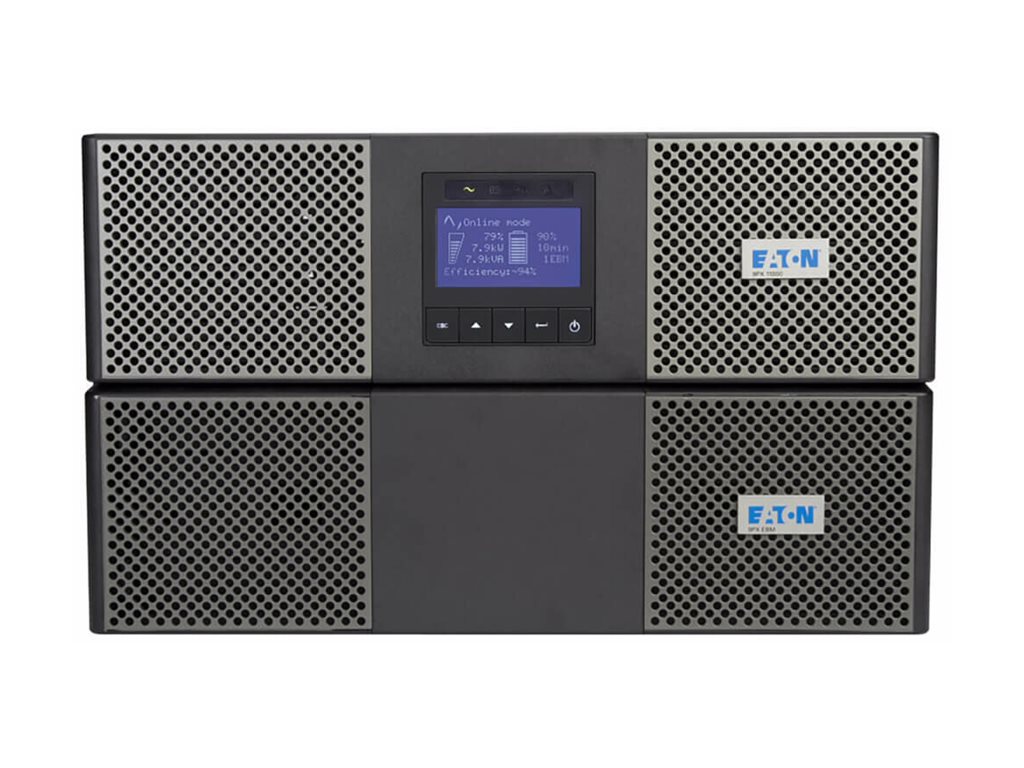

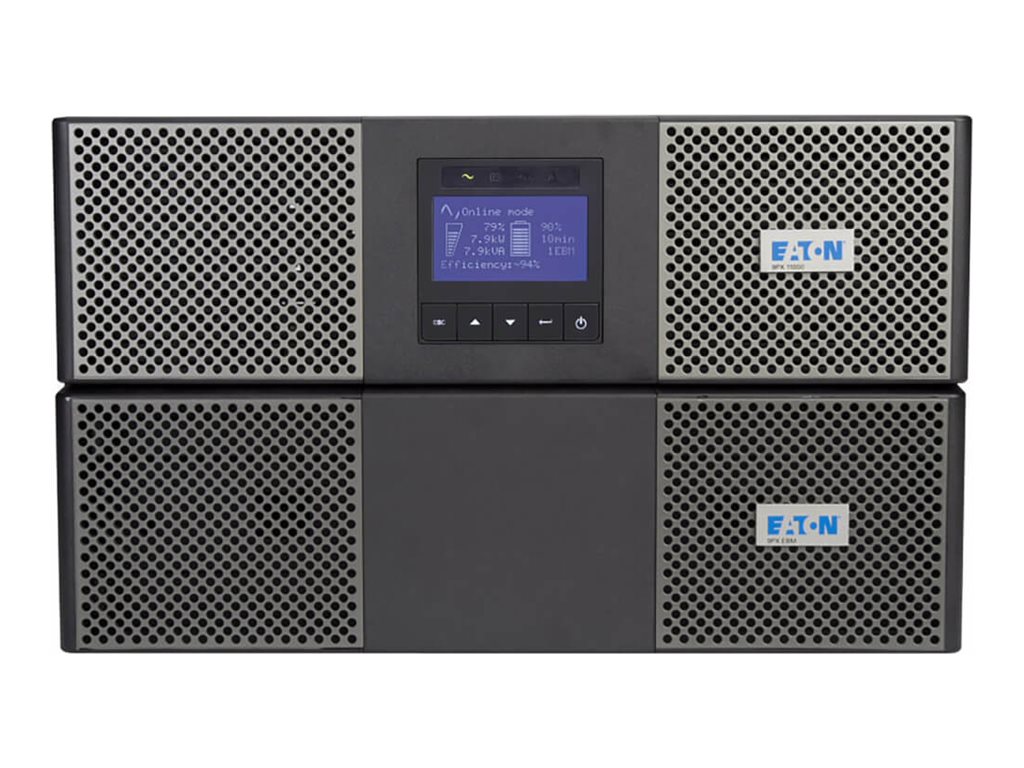

Eaton 9PX 9PX11KHW - UPS


MSRP$11,508.00
$7,865.00

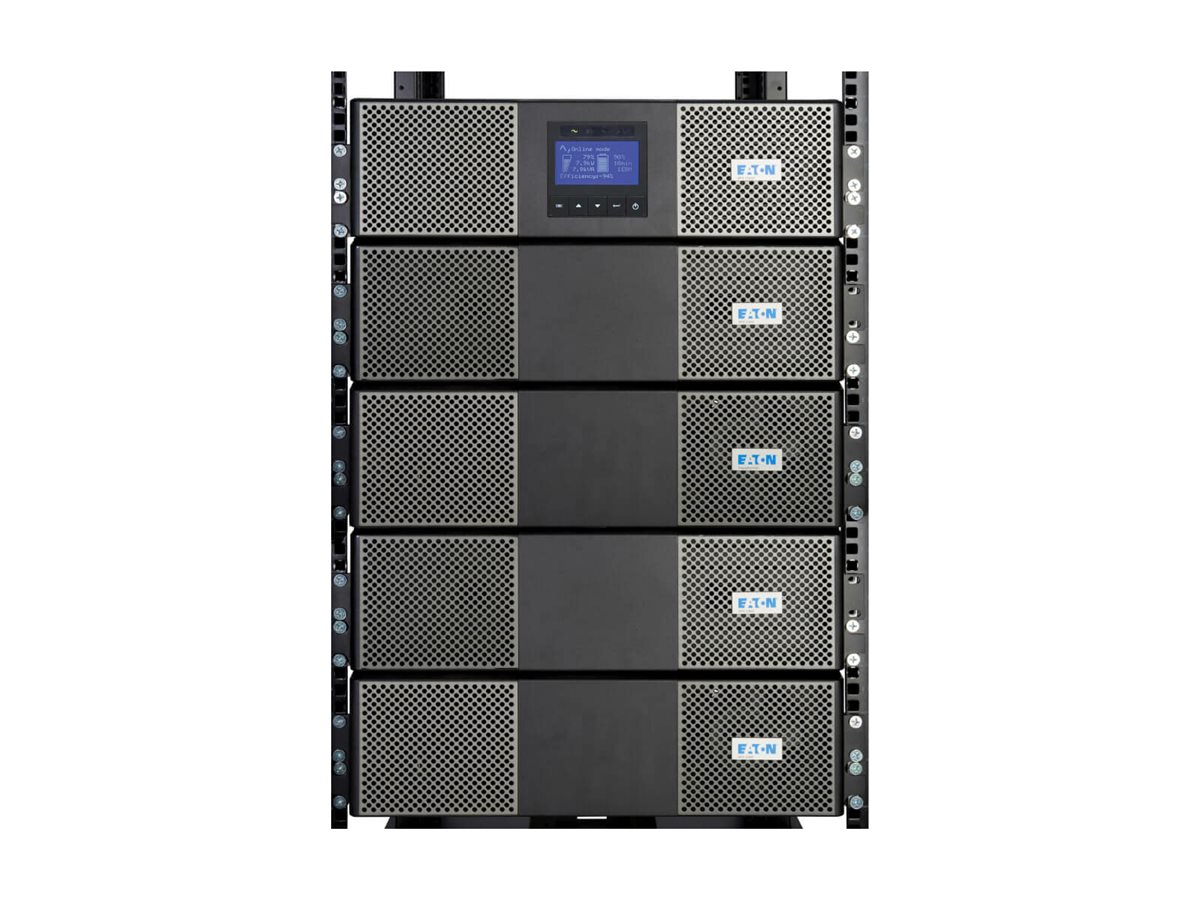

Eaton 9PX 9PX11KHW - UPS - 10 kW - 11000 VA - with 11 kVA Extended Battery Module

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • AC 200/208/220/230/240 V
  • 10 kW
  • 11000 VA
  • Ethernet 10/100, RS-232, USB
  • PFC
Eaton 9PX 9PX11KHW - UPS
  • AC 200/208/220/230/240 V
  • 10 kW
  • 11000 VA
  • Ethernet 10/100, RS-232, USB
  • PFC
  • 6U
  • 19"
  • black, silver
  • with 11 kVA Extended Battery Module
  Additional Details
Price: $7,865.00
MSRP: $11,508.00
Mfr Part #: 9PX11KHW
SHI Part #: 28909682
Category: Uninterruptible power supplies
UNSPSC: 39121011
Manufacturer: Eaton
Product Type: Hardware

Power Management

Eaton - power adapter
  • for 9PX
MSRP $176.00 $130.00
Eaton - power adapter
  • for 9PX 9PX11KHW
MSRP $176.00 $130.00
General Information
CategoryUninterruptible power supplies
DescriptionEaton 9PX 9PX11KHW - UPS - AC 200/208/220/230/240 V - 10 kW - 11000 VA - Ethernet 10/100, RS-232, USB - PFC - 6U - 19" - black, silver - with 11 kVA Extended Battery Module
ManufacturerEaton
MSRP$11,508.00
UNSPSC39121011
Main Specifications
Dimensions & Weight / Depth70.1 cm
Dimensions & Weight / Height25.9 cm
Dimensions & Weight / Weight86.2 kg
Dimensions & Weight / Width43.9 cm
General / SubcategoryUPS
Header / BrandEaton
Miscellaneous / Product Color
  • Black
  • Silver
Networking / Remote Management Interface
  • Ethernet 10/100
  • RS-232
  • USB
Packaged Quantity1
Power Device / Form FactorExternal
Power Device / Power Capacity (VA)11000 VA
Power Device / UPS TechnologyOn-line
Power Device / Voltage RequiredAC 200/208/220/230/240 V
Product TypeUPS
Service & Support / Type2-year warranty
System Requirements / OS Required
  • Apple MacOS X
  • Linux
  • Microsoft Windows Server 2008
  • Microsoft Windows Vista / XP / 7
Battery
Run Time (Up To)
  • 32 min at half load
  • 21 min at 70% load
TypeExpandable
Dimensions & Weight
Depth70.1 cm
Height25.9 cm
Weight86.2 kg
Width43.9 cm
Environmental Parameters
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission50 dB
Expansion / Connectivity
Expansion Slots1 (total) / 0 (free) x expansion slot

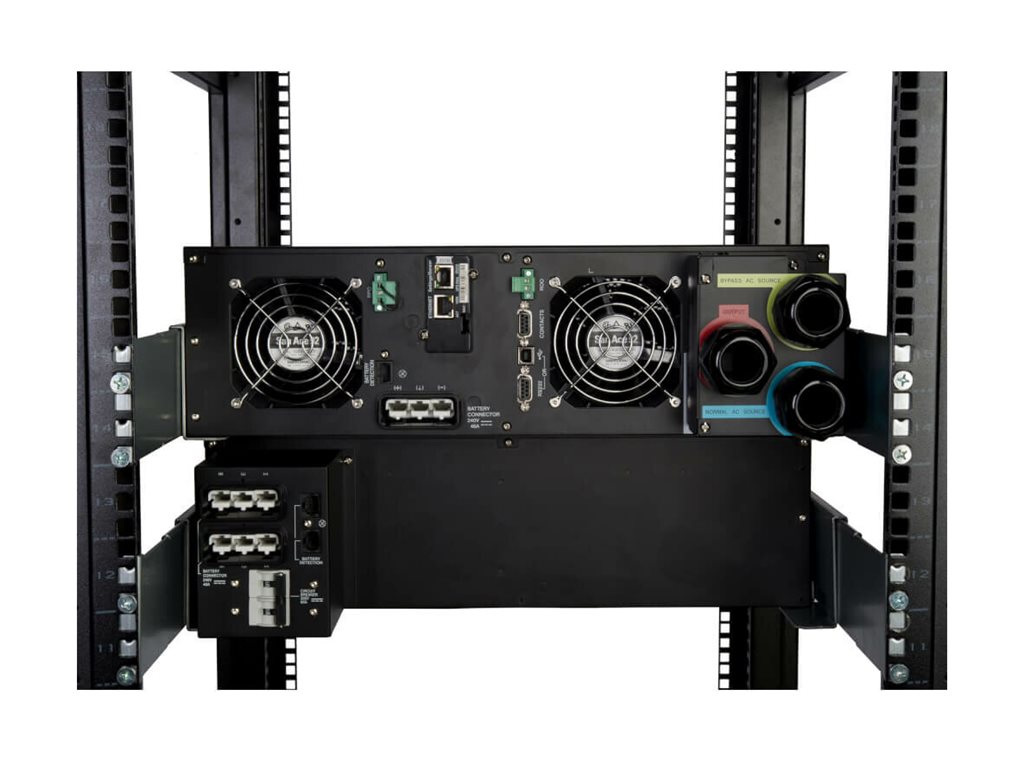

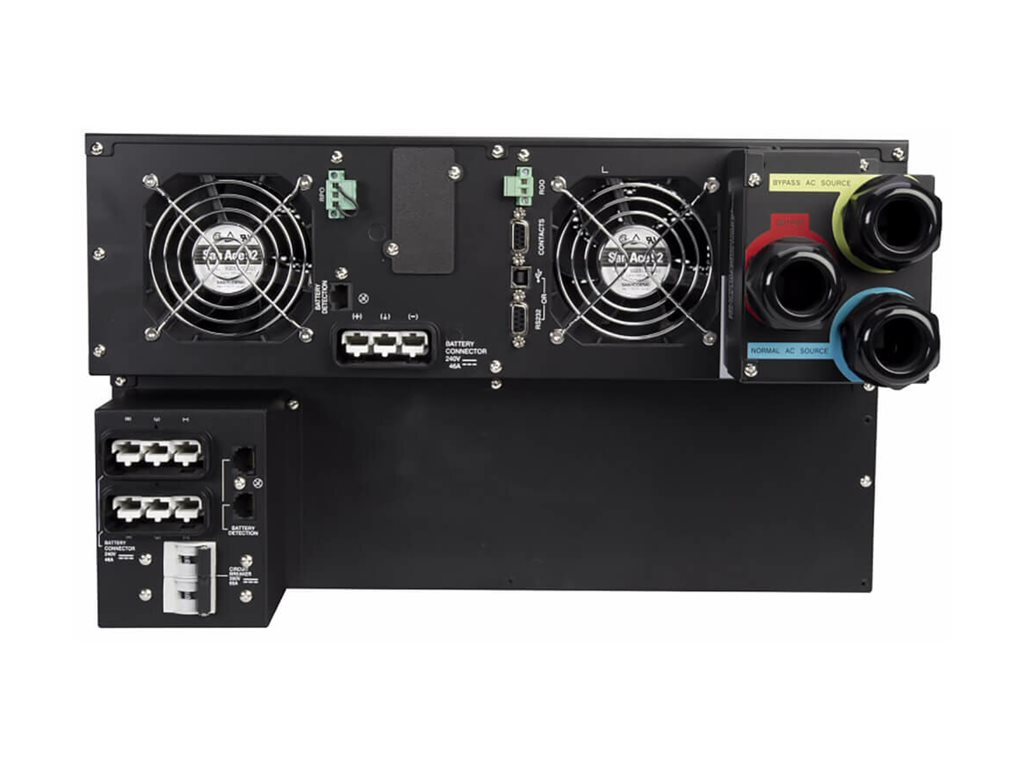

Interfaces
  • 1 x RS-232 - 9 pin D-Sub (DB-9)
  • 1 x USB - 4 pin USB Type B
  • 1 x EPO (emergency power off)
  • 1 x management (Ethernet) - RJ-45
General
Bundled with11 kVA Extended Battery Module
ColorBlack, silver
Device TypeUPS - Power Factor Correction (PFC) - external
Height (Rack Units)6U
Rack Size19"
Manufacturer Warranty
Service & SupportLimited warranty - 2 years
Miscellaneous
Cables Included
  • Serial cable - external
  • USB cable - external
Compliant StandardsFCC Class A certified, UL, TUV, UL 1778, CB, IEC 62040-3, IEC 62040-1-1, IEC 62040-2, CSA 22.2, EN 62040-1-1, EN 62040-2
Equipment Protection Value150000 US Dollars

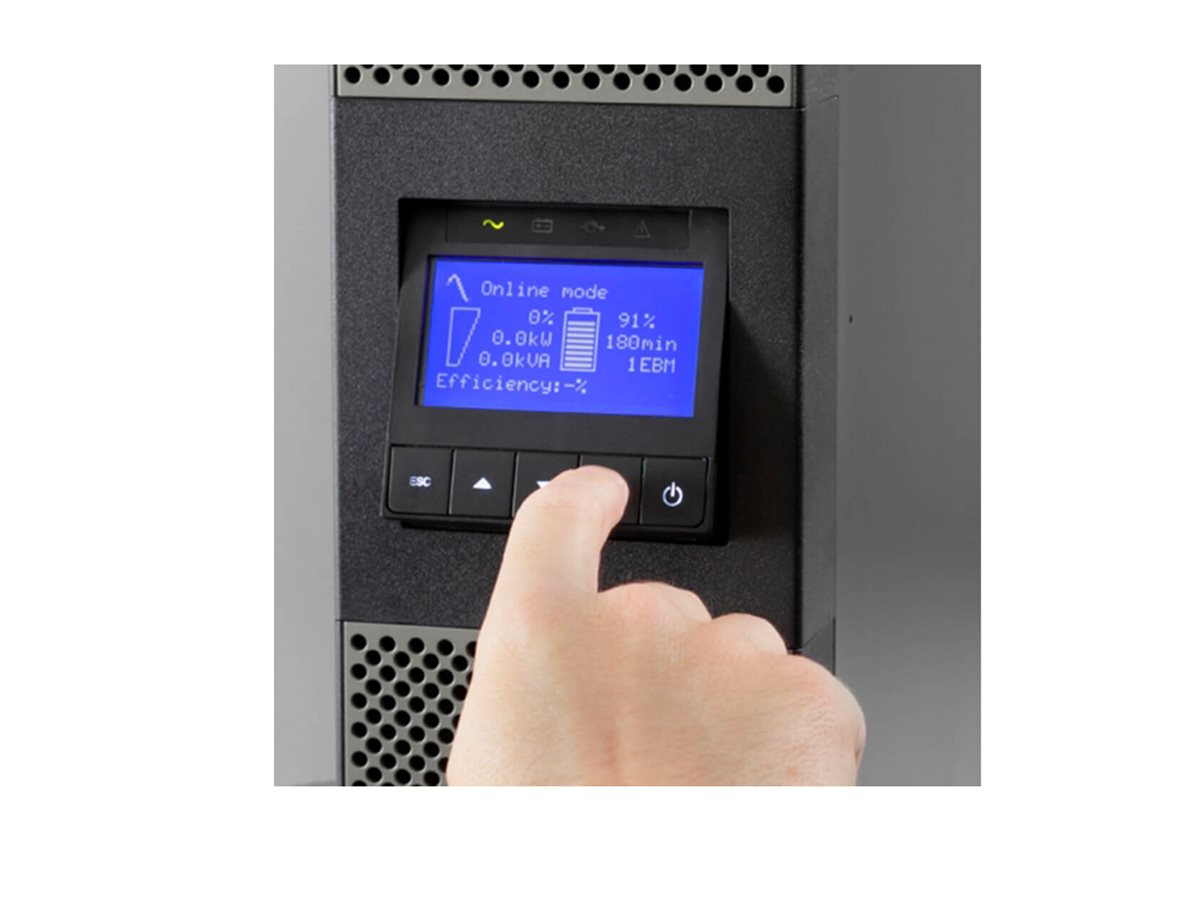

FeaturesAdvance Battery Management (ABM), LCD display, LED indicators, deep discharge protection, automatic self-test
Rack Mounting KitIncluded
Networking
Remote Management InterfaceEthernet 10/100, RS-232, USB
Remote Management ProtocolSNMP 1, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI
Power Device
Frequency Provided50/60 Hz
Input ConnectorsHardwire
Input VoltageAC 200/208/220/230/240 V
Input Voltage RangeAC 176 - 276 V
Output VoltageAC 208 V 50/60 Hz
Power Capacity10 kW / 11000 VA
Power Output Connectors Details1 x hardwire
Supported Power Modules Qty12
Surge SuppressionYes
UPS TechnologyOn-line
Software / System Requirements
OS RequiredLinux, Apple MacOS X, Microsoft Windows Vista / XP / 7, Microsoft Windows Server 2008
Software IncludedIntelligent Power Software Suite
