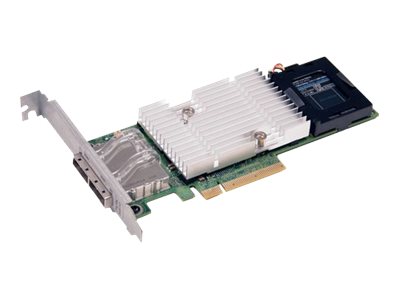

Dell PERC H810 - Storage controller (RAID)
MSRP$309.24
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Dell PERC H810 - Storage controller (RAID)
- 8 Channel
- SAS 6Gb/s
- 600 MBps
- RAID 0, 1, 5, 6, 10, 50, JBOD, 60
- PCIe 2.0 x8
- for PowerEdge R320, R420, R520, R820, T110, T420, VRTX M520, VRTX M620; PowerVault DL4000
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $309.24 |
| Mfr Part #: | 07WH7 |
| SHI Part #: | 28892408 |
| Category: | Peripheral controller cards |
| UNSPSC: | 43201407 |
| Manufacturer: | Dell |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Peripheral controller cards |
| Description | Dell PERC H810 - Storage controller (RAID) - 8 Channel - SAS 6Gb/s - 600 MBps - RAID 0, 1, 5, 6, 10, 50, JBOD, 60 - PCIe 2.0 x8 - for PowerEdge R320, R420, R520, R820, T110, T420, VRTX M520, VRTX M620; PowerVault DL4000 |
| Manufacturer | Dell |
| MSRP | $309.24 |
| UNSPSC | 43201407 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.8 cm |
| Dimensions & Weight / Height | 6.35 cm |
| General / Product Type | Storage controller (RAID) |
| Header / Brand | Dell |
| Packaged Quantity | 1 |
| Storage Controller / Form Factor | Plug-in card |
| System Requirements / OS Required |
|
| Compatibility Information | |
| Designed For |
|
| Dimensions & Weight | |
| Depth | 16.8 cm |
| Height | 6.35 cm |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces | 2 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) (external) |
| General | |
| Device Type | Storage controller (RAID) - plug-in card |
| Host Bus | PCIe 2.0 x8 |
| Miscellaneous | |
| Features | Load Balancing, DDF compliant Configuration on Disk (COD), Online Capacity Expansion (OCE), Online RAID Level Migration (RLM) |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2008 R2 SP2, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 5.7, SuSE Linux Enterprise Server 10 SP4, SuSE Linux Enterprise Server 11 SP2 |
| Storage Controller | |
| Buffer Size | 1 GB |
| Channel Qty | 8 |
| Data Transfer Rate | 6 Gbit/s |
| Interface | SAS 6Gb/s |
| Processor | LSI LSISAS2208 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60 |
| Supported Devices | Hard drive, disk array (RAID) |
