Hardware Monitors and Projectors Monitors and Displays
Add to My Favorites
Monitors and Displays

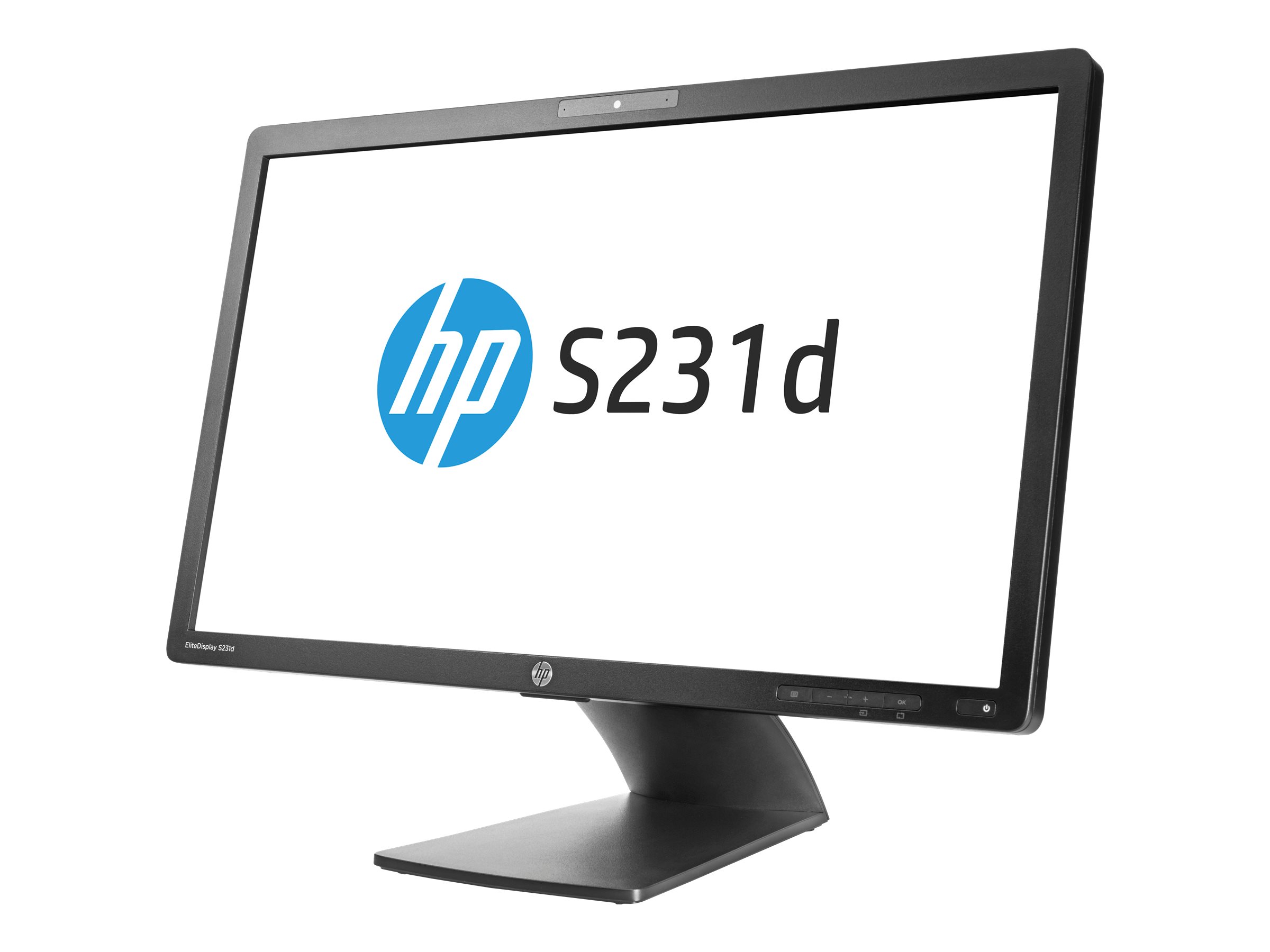

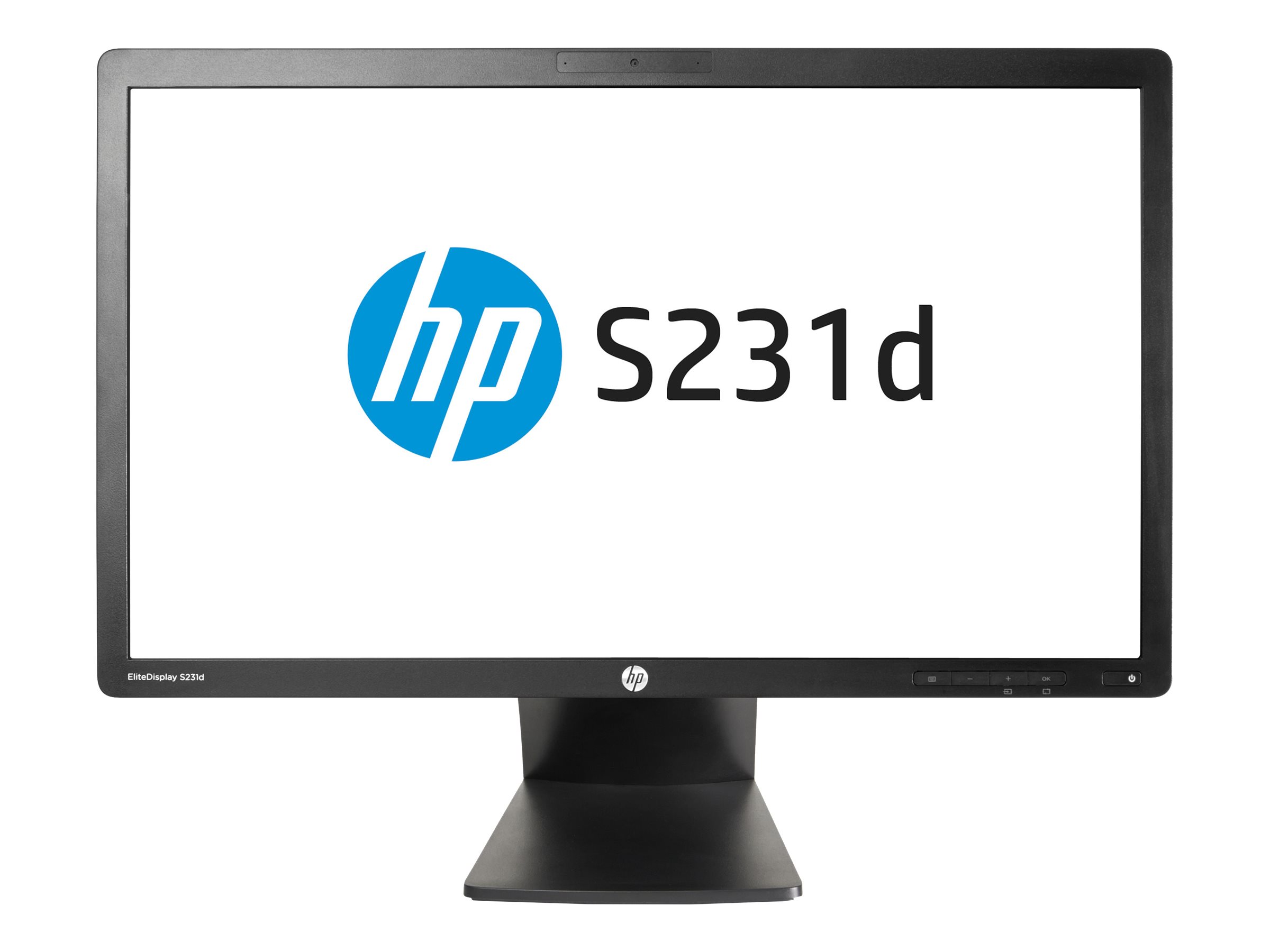

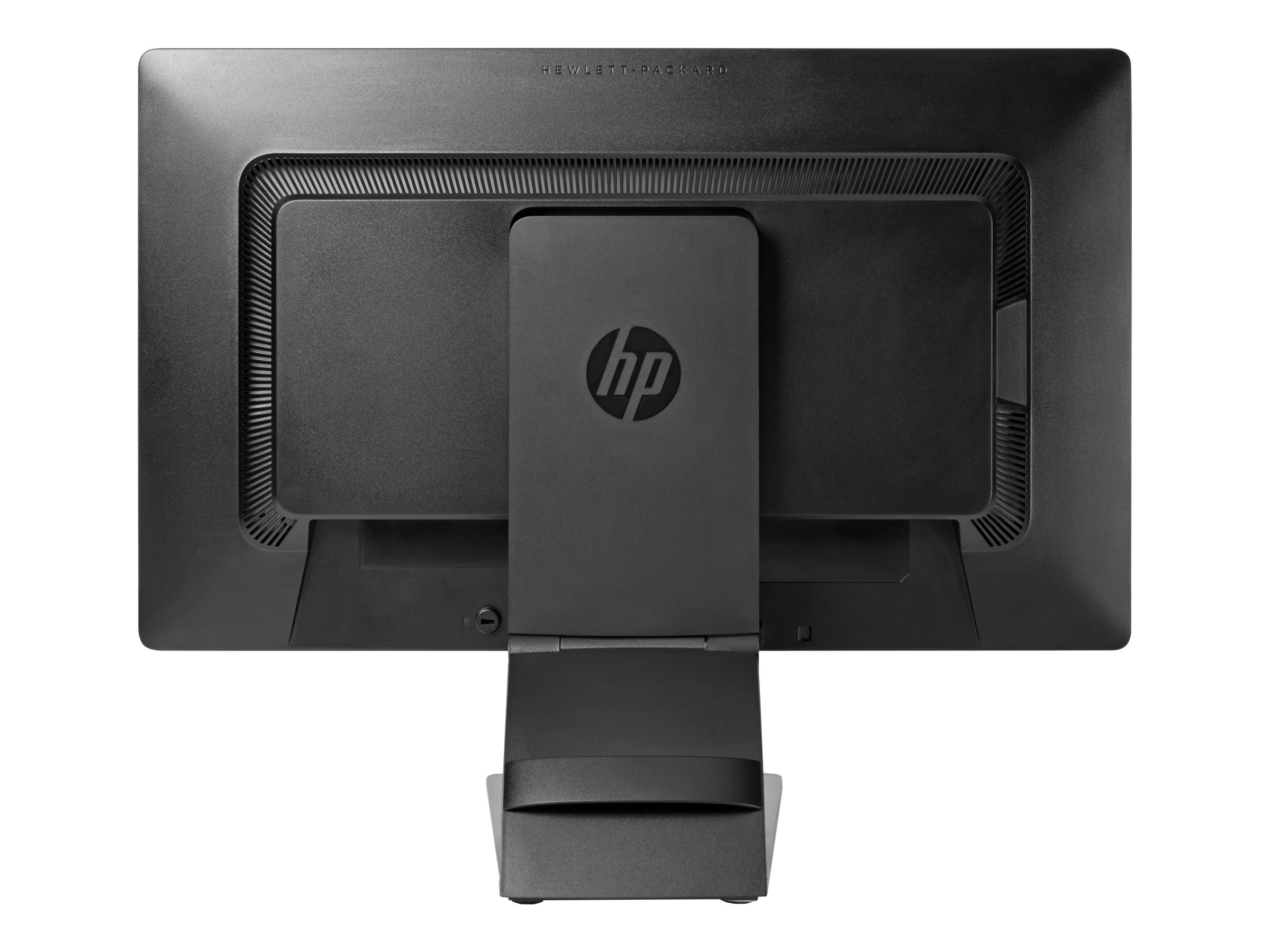

HP EliteDisplay S231d

Login for Price
HP EliteDisplay S231d
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • LED monitor
  • 23"
  • 1920 x 1080 Full HD (1080p) @ 60 Hz
  • IPS
  • 250 cd/m²
HP EliteDisplay S231d
  • LED monitor
  • 23"
  • 1920 x 1080 Full HD (1080p) @ 60 Hz
  • IPS
  • 250 cd/m²
  • 1000:1
  • 7 ms
  • VGA, DisplayPort
  • black
  • for Elite Slice for Meeting Rooms G2 for Intel Unite; RP9 G1 Retail System 9118
  Additional Details
Mfr Part #: F3J72AA
SHI Part #: 28852949
Category: Flat panel displays
UNSPSC: 43211902
Manufacturer: HP, Inc.
Product Type: Hardware
General Information
CategoryFlat panel displays
DescriptionHP EliteDisplay S231d - LED monitor - 23" - 1920 x 1080 Full HD (1080p) @ 60 Hz - IPS - 250 cd/m² - 1000:1 - 7 ms - VGA, DisplayPort - black - for Elite Slice for Meeting Rooms G2 for Intel Unite; RP9 G1 Retail System 9118
ManufacturerHP, Inc.
UNSPSC43211902
Main Specifications
Dimensions & Weight / Depth24.24 cm
Dimensions & Weight / Height46.99 cm
Dimensions & Weight / Weight6.12 kg
Dimensions & Weight / Width54.4 cm
Display / Diagonal Size23 in
Display / Diagonal Size (metric)58.42 cm
Display / Interface
  • DisplayPort
  • VGA (HD-15)
Display / Native Resolution1920 x 1080
Display / Pixel Pitch0.265 mm
Display / TypeLED-backlit LCD monitor
Header / BrandHP
Image Brightness250 cd/m²
Miscellaneous / Compliant Standards
  • BSMI
  • C-Tick
  • CB
  • CCC
  • CECP
  • CEL Grade 1
  • CSA
  • cUL
  • E-Standby
  • EAC
  • FCC
  • ISC
  • KC
  • NOM
  • Plug and Play
  • PSB
  • S Mark
  • TUV S
  • VCCI
  • WHQL
Miscellaneous / Product ColorBlack
Packaged Quantity1
System Requirements / OS Required
  • Microsoft Windows 7 Professional (32/64 bits)
  • Microsoft Windows 7 Ultimate (32/64 bits)
  • Microsoft Windows Vista (32/64 bits) SP1
  • Microsoft Windows Vista (32/64 bits) SP2
  • Windows 8 (32/64 bits)
  • Windows 8 Pro (32/64 bits)
  • Windows 8.1 (32/64 bits)
  • Windows 8.1 Pro (32/64 bits)
Compatibility Information
Designed For
  • HP Elite Slice for Meeting Rooms G2 for Intel Unite
  • HP RP9 G1 Retail System 9118
Connectivity
Interfaces
  • VGA
  • DisplayPort
  • Headphones
  • Audio line-in
  • Network (RJ-45)
  • 2 x USB 2.0 downstream
  • 2 x USB 3.0 downstream
  • USB 3.0 upstream
Dimensions & Weight
Dimensions & Weight Details
  • With stand - width: 54.4 cm - depth: 24.24 cm - height: 46.99 cm - weight: 6.12 kg
  • Without stand - width: 54.4 cm - depth: 5.1 cm - height: 32.9 cm - weight: 3.87 kg
Environmental Parameters
Humidity Range Operating20 - 80% (non-condensing)
Max Operating Temperature35 °C
Min Operating Temperature5 °C
General
Aspect Ratio16:9
Backlight TechnologyWLED
Brightness250 cd/m²
Built-in DevicesUSB 3.0 hub, 720p webcam
ColorBlack
Color Gamut72%
Color Support16.7 million colors
Color Temperature6500K
Contrast Ratio1000:1 / 5000000:1 (dynamic)
Controls & AdjustmentsBrightness, contrast, input select
Diagonal Size23"
Dimensions (WxDxH)54.4 cm x 24.24 cm x 46.99 cm - with stand
Display TypeLED-backlit LCD monitor / TFT active matrix
FeaturesOn-screen Digital Controls
Horizontal Refresh Rate24 - 80 kHz
Horizontal Viewing Angle178
Native ResolutionFull HD (1080p) 1920 x 1080 at 60 Hz
OSD LanguagesChinese (traditional), Chinese (simplified), Brazilian Portuguese, English, German, French, Italian, Spanish, Dutch, Japanese
Panel TypeIPS
Pixel Pitch0.265 mm
Response Time7 ms (gray-to-gray)
Screen CoatingAnti-glare
Vertical Refresh Rate50 - 60 Hz
Vertical Viewing Angle178
Video Bandwidth170 MHz
Weight6.12 kg
Mechanical
Display Position AdjustmentsHeight, pivot (rotation), swivel, tilt
Height Adjustment150 mm
Swivel Angle360
Tilt Angle-5/+30
VESA Mounting Interface100 x 100 mm
Miscellaneous
Backlight Life30,000 hours
Cables Included
  • 1 x VGA cable - 1.8 m
  • 1 x DisplayPort cable - 1.8 m
  • 1 x USB cable - 1.8 m
Compliant StandardsPlug and Play, CSA, VCCI, C-Tick, BSMI, cUL, NOM, TUV S, WHQL, CB, CCC, PSB, FCC, S Mark, E-Standby, KC, CECP, EAC, CEL Grade 1, ISC
FeaturesSecurity lock slot (cable lock sold separately)
Power
Input VoltageAC 120/230 V (50/60 Hz)
Power Consumption (Typical)60 Watt
Power Consumption Stand by2.2 Watt
Power SupplyExternal
Software / System Requirements
Included SoftwareHP Display Assistant
OS RequiredMicrosoft Windows Vista (32/64 bits) SP1, Microsoft Windows Vista (32/64 bits) SP2, Microsoft Windows 7 Professional (32/64 bits), Microsoft Windows 7 Ultimate (32/64 bits), Windows 8 (32/64 bits), Windows 8 Pro (32/64 bits), Windows 8.1 (32/64 bits), Windows 8.1 Pro (32/64 bits)
Sustainability Information
ENERGY STAR CertifiedYes
