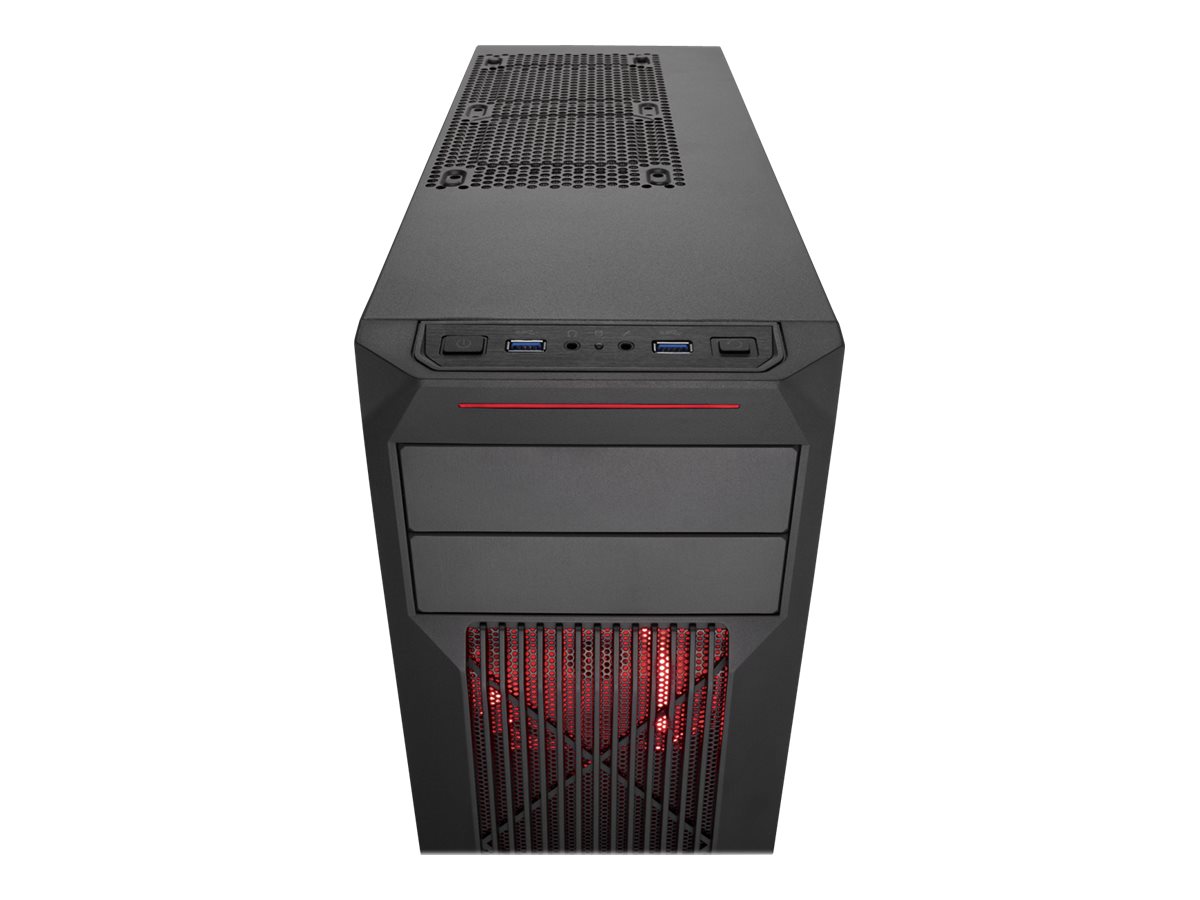

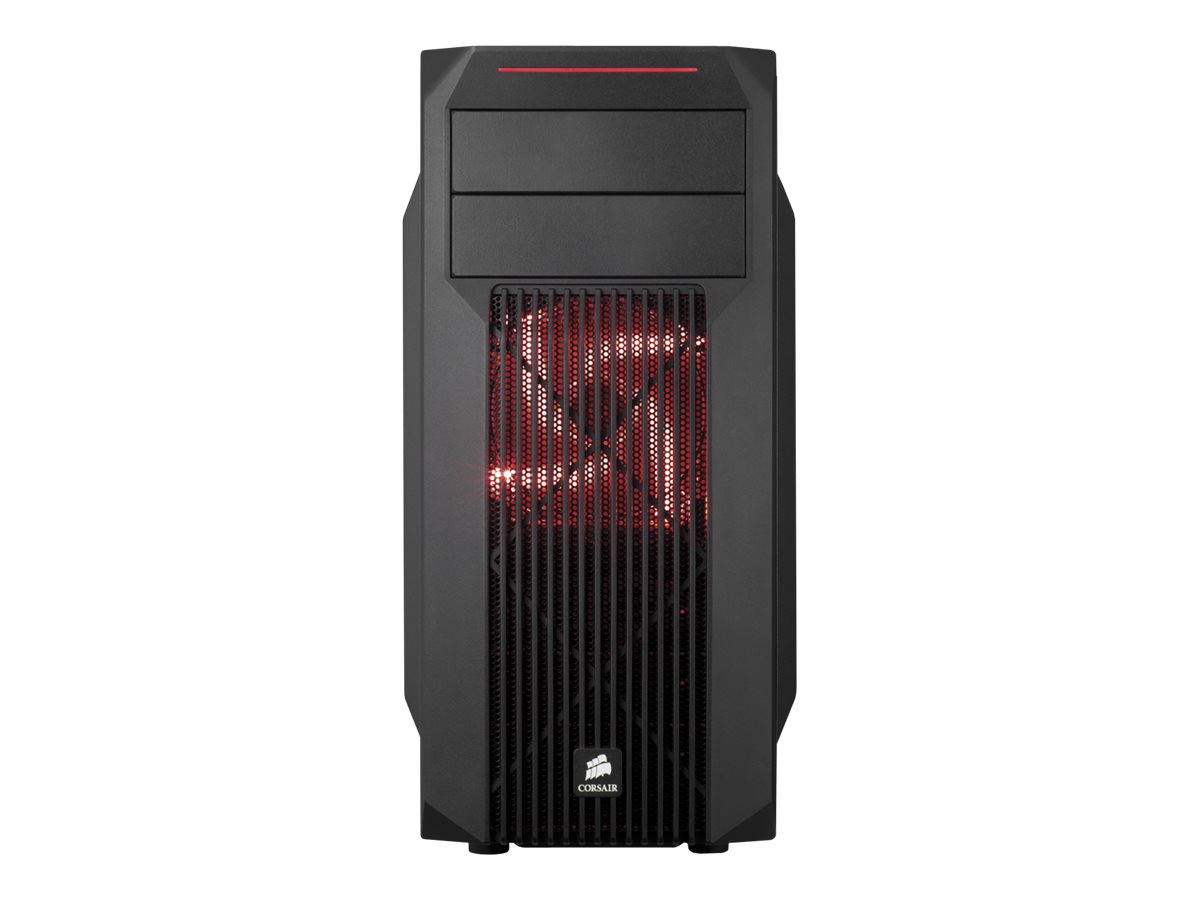

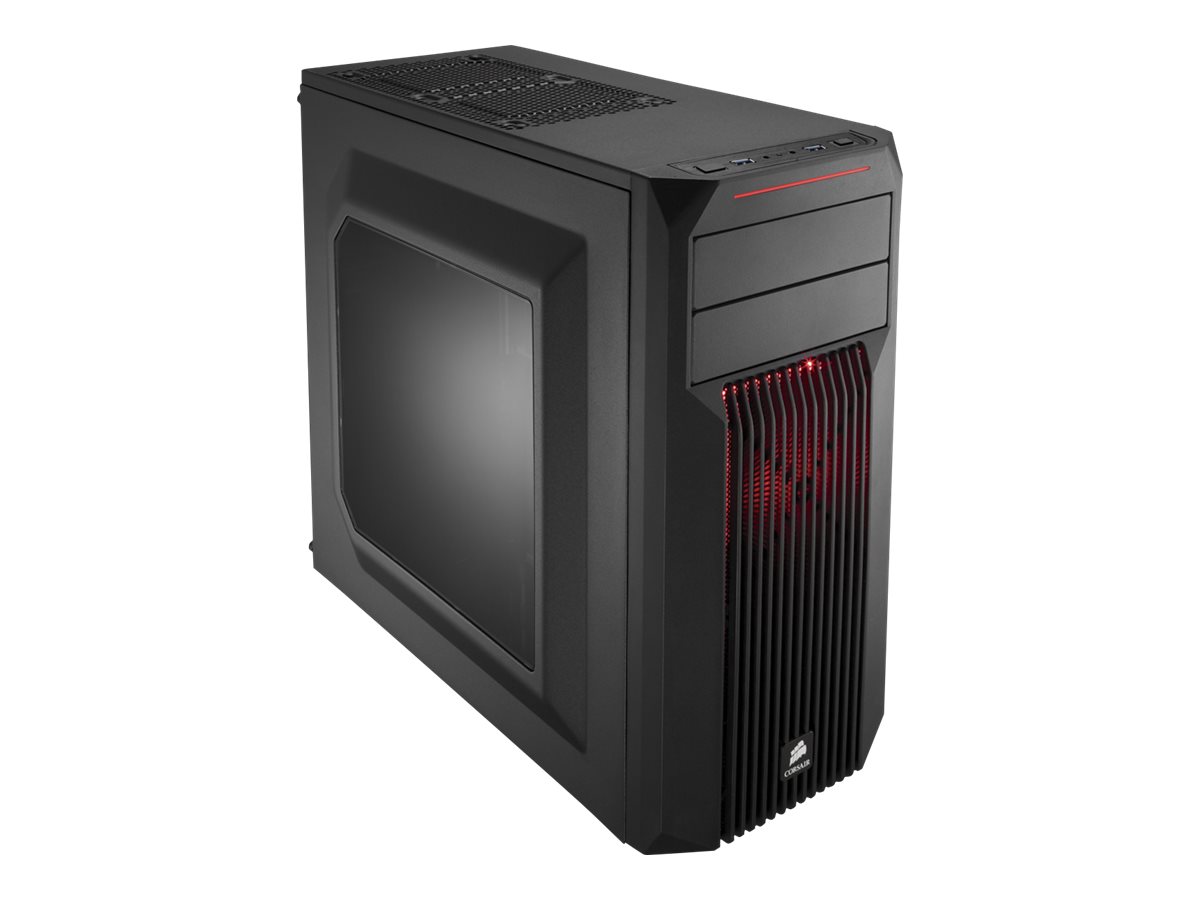

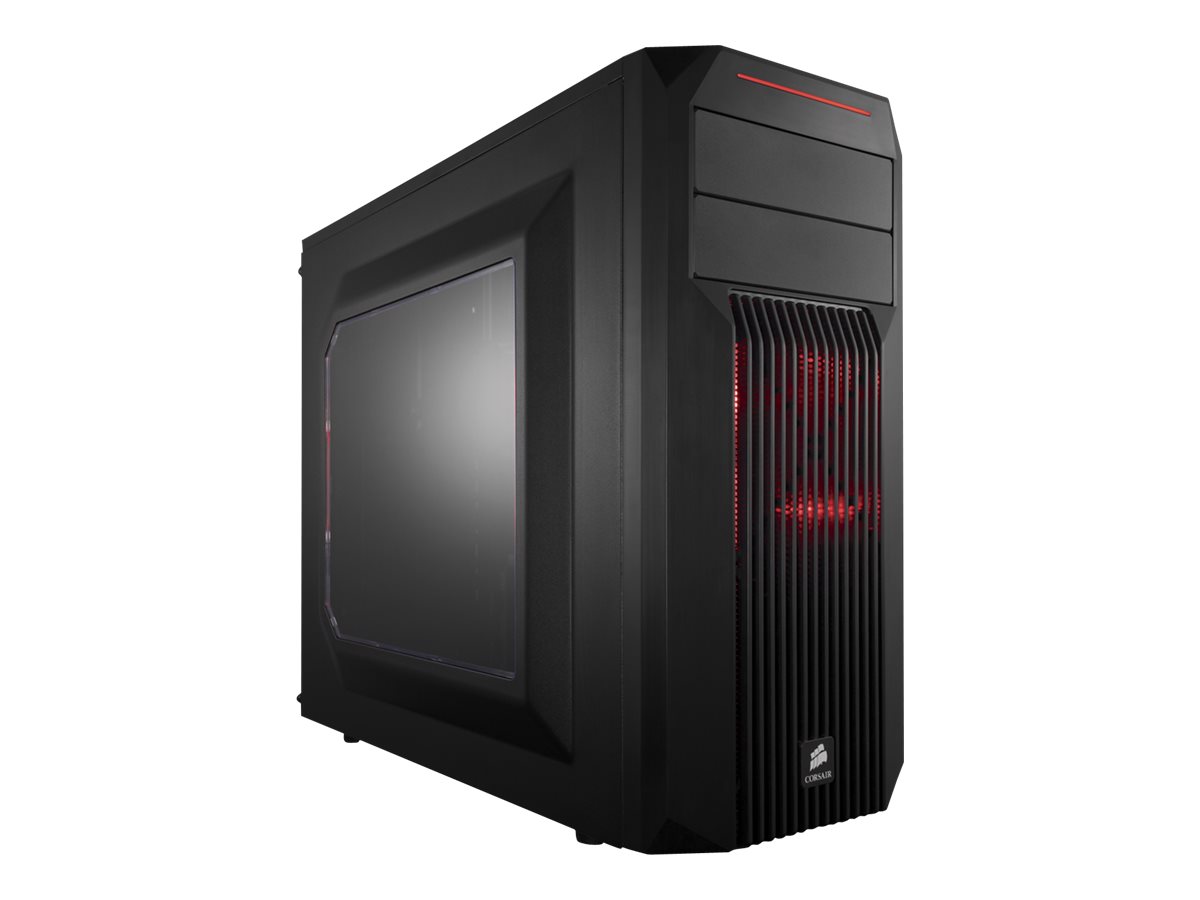

CORSAIR Carbide Series SPEC-02


CORSAIR Carbide Series SPEC-02

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Tower
  • ATX
  • windowed side panel
  • no power supply (ATX)
  • black
CORSAIR Carbide Series SPEC-02
  • Tower
  • ATX
  • windowed side panel
  • no power supply (ATX)
  • black
  • USB/Audio
  Additional Details
Mfr Part #: CC-9011051-WW
SHI Part #: 28294848
Category: Chassis
UNSPSC: 43201601
Manufacturer: CORSAIR
Product Type: Hardware
General Information
CategoryChassis
DescriptionCORSAIR Carbide Series SPEC-02 - Tower - ATX - windowed side panel - no power supply (ATX) - black - USB/Audio
ManufacturerCORSAIR
UNSPSC43201601
Main Specifications
Chassis / Form FactorTower
Dimensions & Weight / Depth49.3 cm
Dimensions & Weight / Height42.6 cm
Dimensions & Weight / Weight5.7 kg
Dimensions & Weight / Width21.5 cm
Header / BrandCORSAIR
Miscellaneous / Product ColorBlack
Packaged Quantity1
Power Device / TypeNo power supply
Service & Support / Type2-year warranty
Dimensions & Weight
Depth49.3 cm
Height42.6 cm
Weight5.7 kg
Width21.5 cm
Expansion / Connectivity

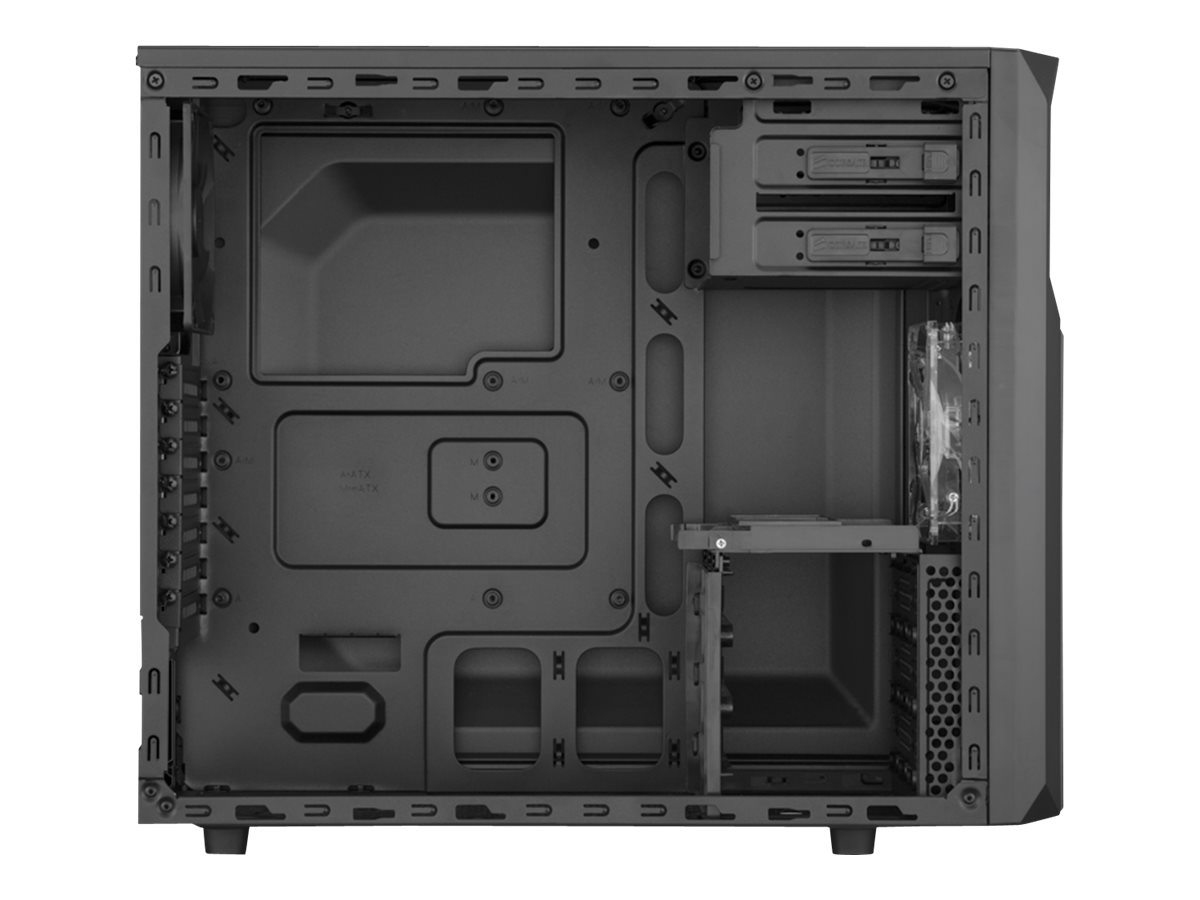

Expansion Bays
  • 2 (total) / 2 (free) x front accessible - 5.25"
  • 3 (total) / 3 (free) x internal - 3.5"
  • 2 (total) / 2 (free) x internal - 2.5"

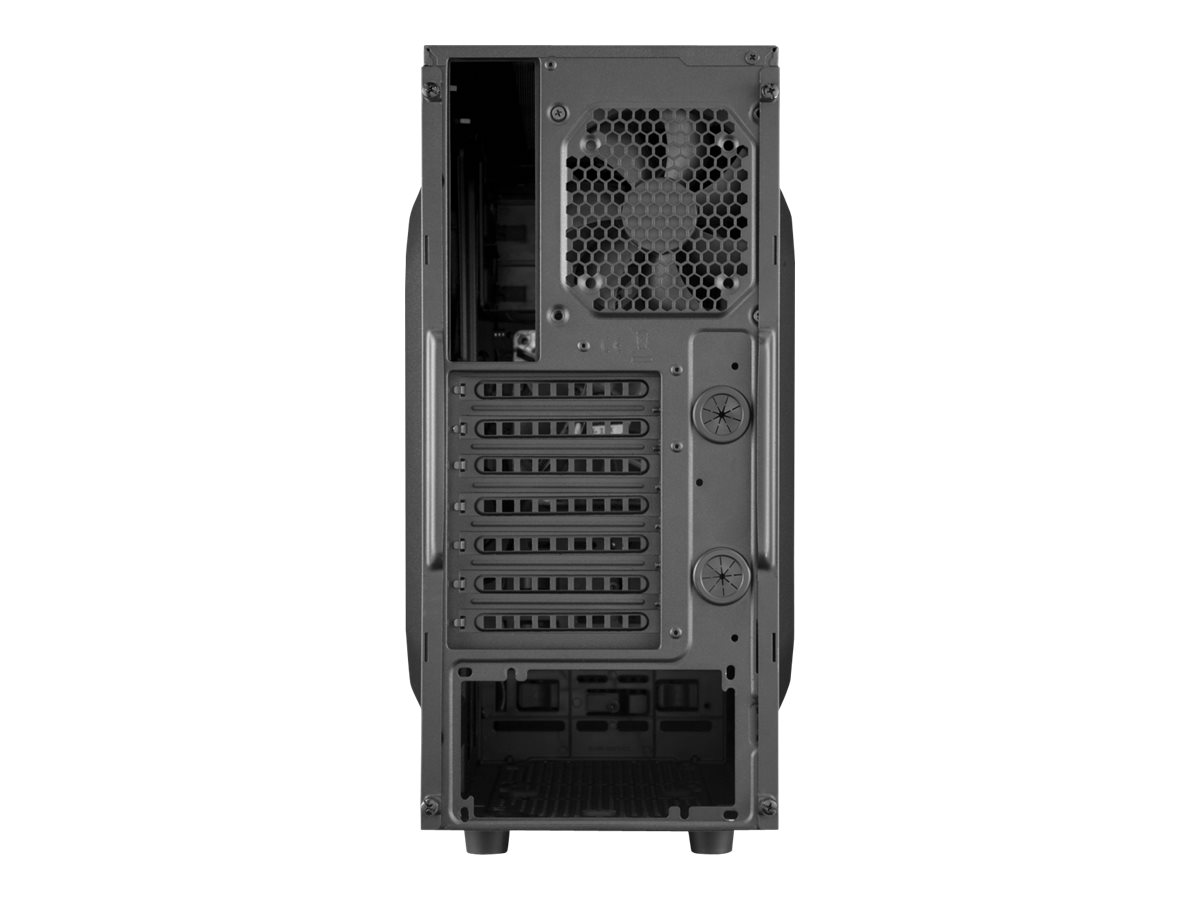

Expansion Slots7

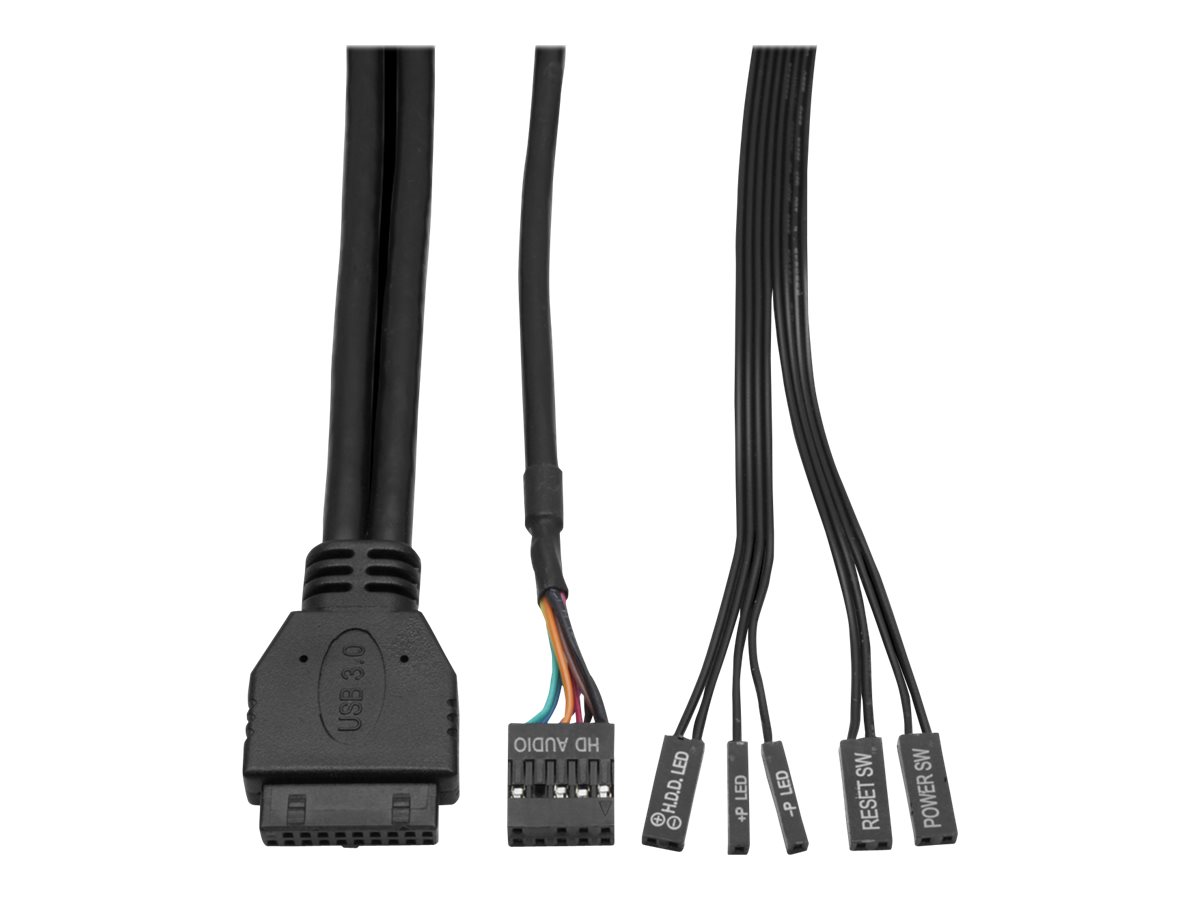

Interfaces
  • 2 x USB 3.0
  • 1 x headphones - mini-jack
  • 1 x microphone - mini-jack
General
ColorBlack
Cooling System

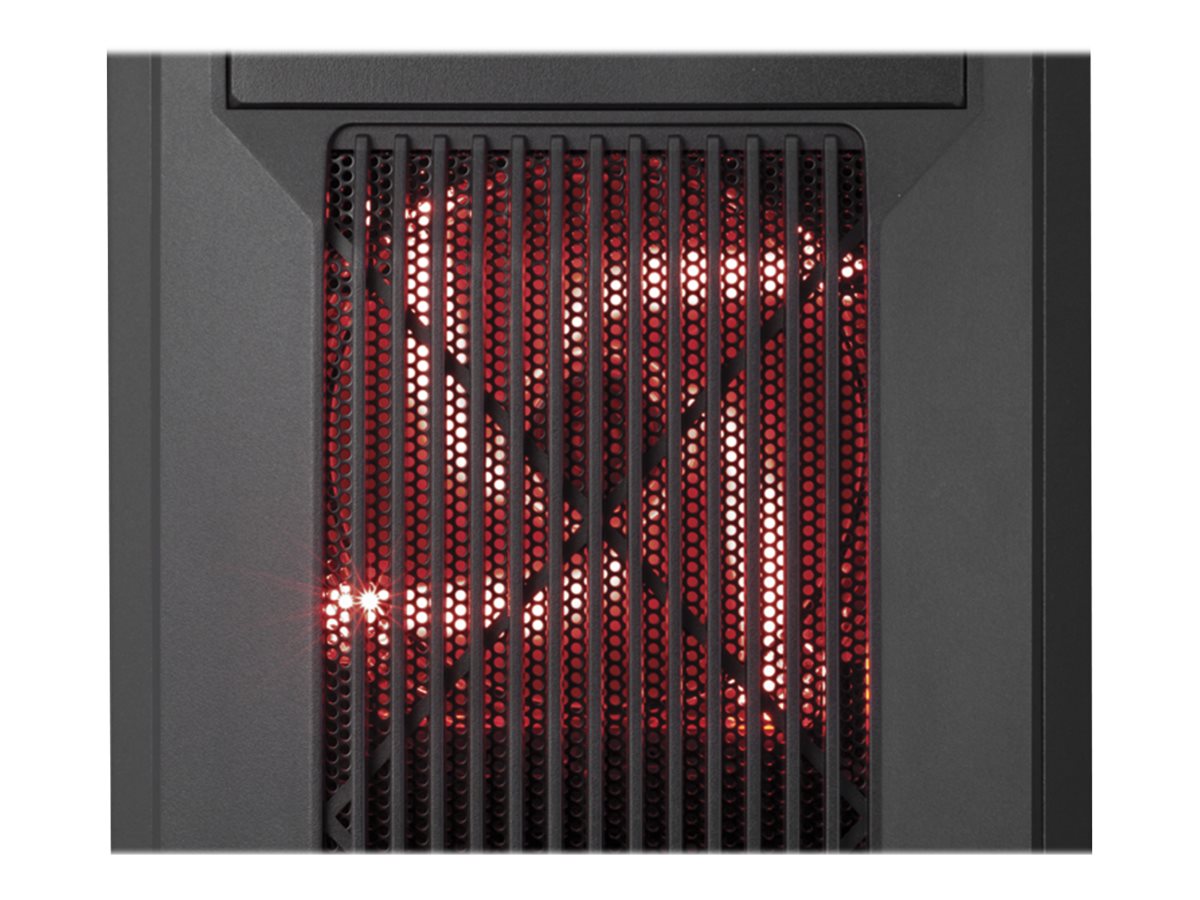

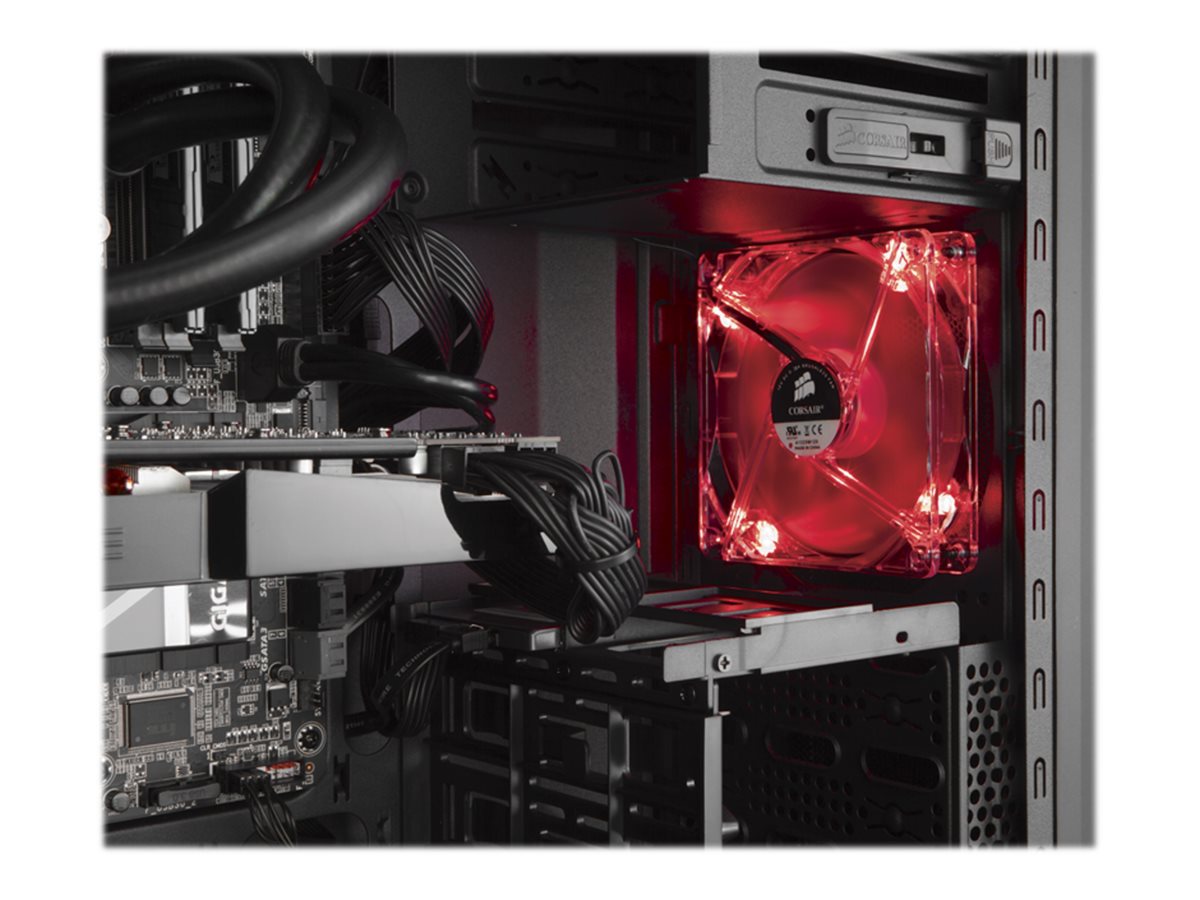

  • Front: 120 mm fan x 1 / intake / red LED
  • Front: 120/140 mm fan mount x 2
  • Top: 120 mm fan mount x 2
  • Rear: 120 mm fan x 1
  • Bottom: 120 mm fan mount x 1
CPU Cooler Max Height157 mm
Form FactorTower
Front Accessible Bays Qty2
Internal Bays Qty5
Max Mainboard SizeATX
Power Supply Max Length288 mm
Supported MotherboardsATX, microATX, Mini-ITX
System Cabinet FeaturesScrewless drive bays, front dust filter, CPU cut-out, cable management holes, supports 120 mm radiator in rear, PSU dust filters
Video Card Max Length420 mm

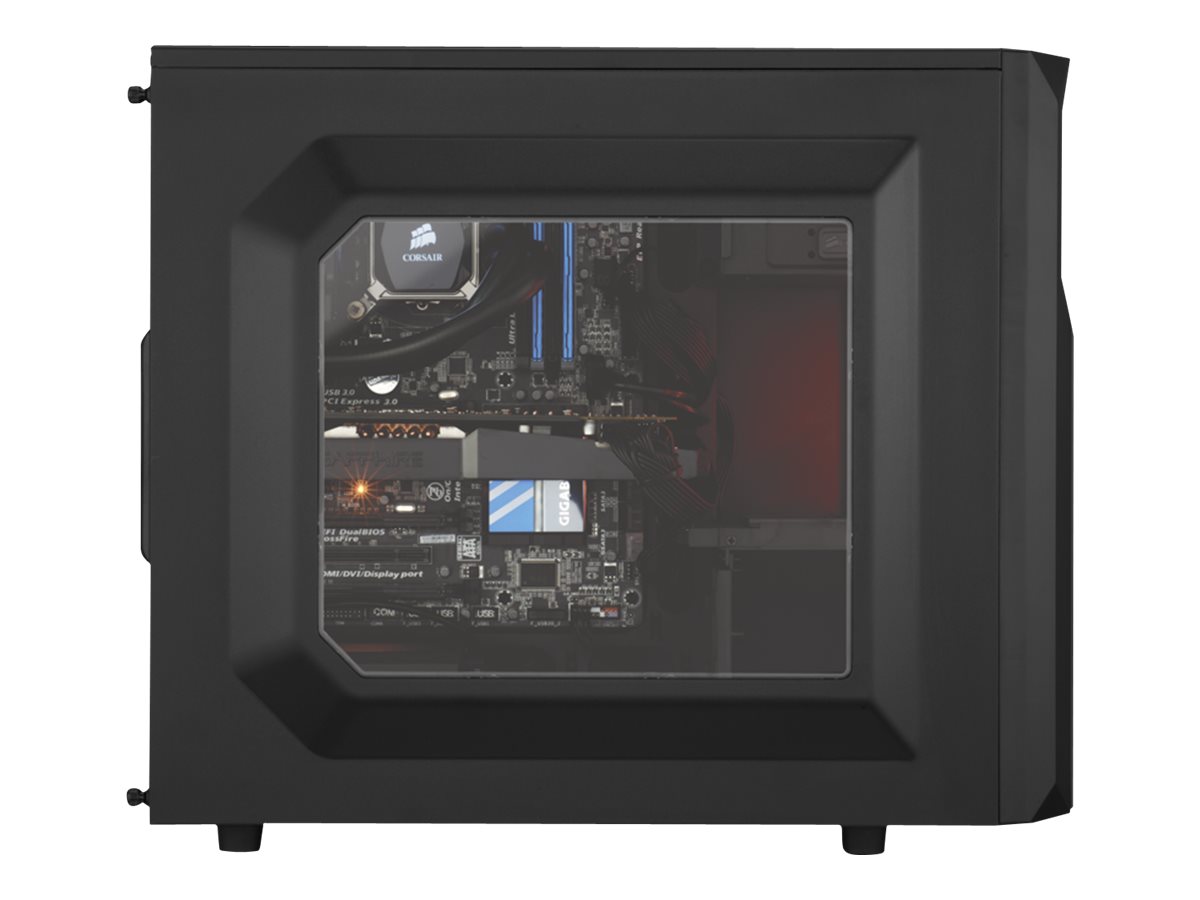

Windowed Side PanelYes
Manufacturer Warranty
Service & SupportLimited warranty - 2 years
Power
Power DeviceNo power supply
Specification ComplianceATX
