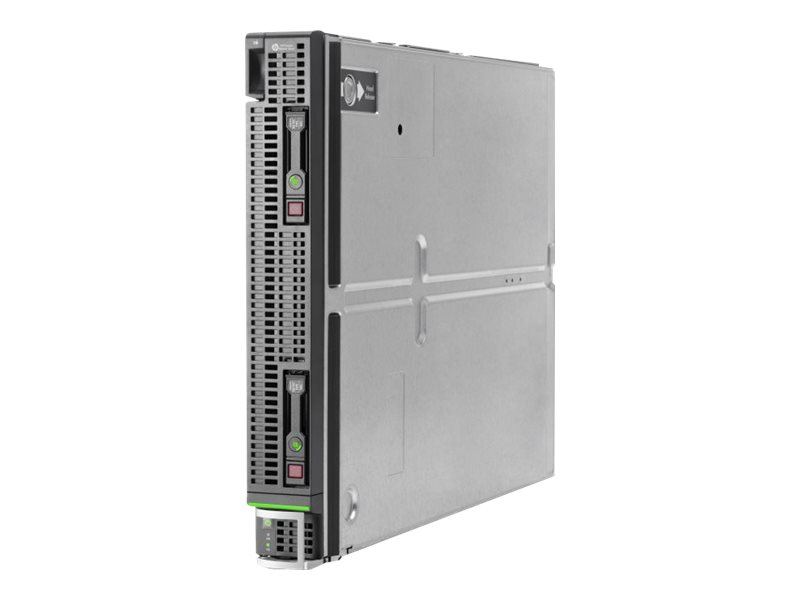

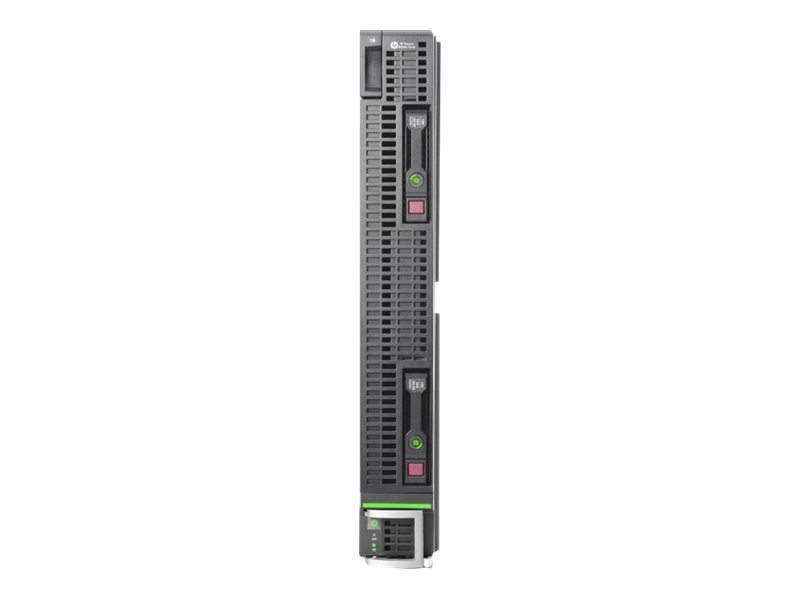

HPE ProLiant BL660c Gen8
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
HPE ProLiant BL660c Gen8
- Server
- blade
- 4-way
- 4 x Xeon E5-4620V2 / 2.6 GHz
- RAM 128 GB
- SAS
- hot-swap 2.5" bay(s)
- no HDD
- Matrox G200
- monitor: none
| Additional Details | |
|---|---|
| Mfr Part #: | 727958-B21 |
| SHI Part #: | 28293481 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Servers |
| Description | HPE ProLiant BL660c Gen8 - Server - blade - 4-way - 4 x Xeon E5-4620V2 / 2.6 GHz - RAM 128 GB - SAS - hot-swap 2.5" bay(s) - no HDD - Matrox G200 - monitor: none |
| Manufacturer | Hewlett Packard Enterprise |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Blade |
| Chassis / Server Storage Bays | Hot-swap |
| Chassis / Server Swappable Drive Interface | SAS |
| Dimensions & Weight / Depth | 51.667 cm |
| Dimensions & Weight / Height | 36.627 cm |
| Dimensions & Weight / Weight | 9.2 kg |
| Dimensions & Weight / Width | 5.654 cm |
| Display / Type | None. |
| Header / Brand | HPE |
| Miscellaneous / Product Color | Black |
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.6 GHz |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 8-core |
| Processor / Processor Number | E5-4620V2 |
| Processor / Type | Xeon |
| RAM / Form Factor | DIMM 240-pin |
| RAM / Technology | DDR3 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 0 GB |
| System / Type | Server |
| Video Output / Graphics Processor | Matrox G200 |
| Cache Memory | |
| Cache Per Processor | 20 MB |
| Installed Size | 80 MB |
| Card Reader | |
| Supported Flash Memory Cards | microSD, microSDHC |
| Type | Card reader |
| Dimensions & Weight | |
| Depth | 51.667 cm |
| Height | 36.627 cm |
| Weight | 9.2 kg |
| Width | 5.654 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x hot-swap 2.5" SFF |
| Interfaces |
|
| Slots |
|
| General | |
| Hot-Swap Bays Qty | 2 |
| Product Form Factor | Blade |
| Recommended Use | Small business, corporate business |
| Server Scalability | 4-way |
| Type | Server |
| Graphics Controller | |
| Graphics Processor | Matrox G200 |
| Type | Integrated |
| Hard Drive | |
| Type | No HDD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Compliant Standards | ACPI 2.0 |
| Features | Administrator password, power-on password, USB port control |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Remote Management Controller | Integrated Lights-Out 4 |
| Operating System / Software | |
| OS Certified | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Citrix XenServer |
| Optical Storage | |
| Type | No optical drive |
| Processor / Chipset | |
| Clock Speed | 2.6 GHz |
| CPU | Intel Xeon E5-4620V2 |
| CPU Qty | 4 |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 4 |
| Max Turbo Speed | 3 GHz |
| Number of Cores | 8-core |
| RAM | |
| Configuration Features | 8 x 16 GB |
| Features | Quad channel memory architecture, HP SmartMemory |
| Form Factor | DIMM 240-pin |
| Installed Size | 128 GB (installed) / 1 TB (max) |
| RAM Supported |
|
| Slots | 32 (total) / 24 (empty) |
| Technology | DDR3 SDRAM |
| Storage Controller | |
| Buffer Size | 512 MB |
| Controller Interface Type | SAS 6Gb/s |
| RAID Level | RAID 0, RAID 1 |
| Storage Controller Name | Smart Array P220i with 512MB FBWC |
| Type | 1 x SAS-2 - integrated - PCIe x4 |
