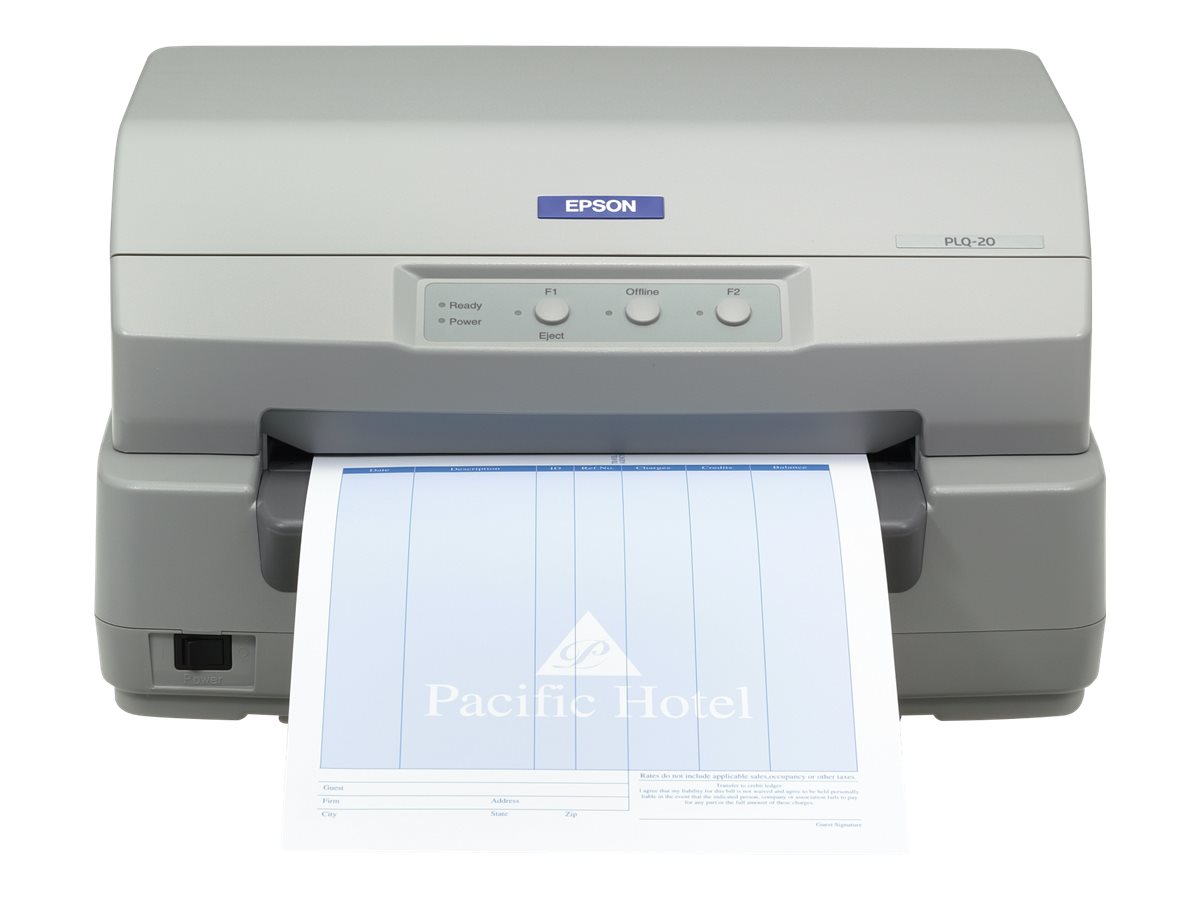

Epson PLQ 20D - Passbook printer
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Epson PLQ 20D - Passbook printer
- B/W
- dot-matrix
- 245 x 297 mm
- 24 pin
- up to 576 char/sec
- serial
- gray
| Additional Details | |
|---|---|
| Mfr Part #: | C11C560301 |
| SHI Part #: | 28137909 |
| Category: | Dot matrix printers |
| UNSPSC: | 43212102 |
| Manufacturer: | Epson |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Dot matrix printers |
| Description | Epson PLQ 20D - Passbook printer - B/W - dot-matrix - 245 x 297 mm - 24 pin - up to 576 char/sec - serial - gray |
| Manufacturer | Epson |
| UNSPSC | 43212102 |
| Main Specifications | |
| Dimensions & Weight / Depth | 28 cm |
| Dimensions & Weight / Height | 20.3 cm |
| Dimensions & Weight / Weight | 7.7 kg |
| Dimensions & Weight / Width | 38.4 cm |
| Header / Brand | Epson |
| Miscellaneous / Product Color | Gray |
| Office Machine / Functions | Printer |
| Office Machine / Printing Output Type | Monochrome |
| Office Machine / Printing Technology | Dot-matrix |
| Office Machine / Type | Printer |
| Packaged Quantity | 1 |
| PC Connectivity / PC Connection | Serial |
| Power Device / Type | Power supply |
| Printer / Connectivity Technology | Wired |
| Printer / Type | Passbook printer |
| Scanner / Type | None |
| Dimensions & Weight | |
| Depth | 28 cm |
| Height | 20.3 cm |
| Weight | 7.7 kg |
| Width | 38.4 cm |
| Environmental Parameters | |
| Sound Emission (Operating) | 53 dBA |
| Expansion / Connectivity | |
| Connections | 2 x RS-232 |
| General | |
| Enclosure Color | Gray |
| Printer Type | Passbook printer - dot-matrix - 24 pin - monochrome |
| Media Handling | |
| Max Media Size | 245 x 297 mm |
| Max Sheets in Multi-Part Form | 7 |
| Media Sizes | 245 x 297 mm |
| Media Type | Envelopes, labels, passbook |
| Media Weight | 34 g/m² - 157 g/m² |
| Miscellaneous | |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| MTBF | 10,000 hour(s) |
| Power | |
| Power Device | Power supply - internal |
| Printer | |
| Barcodes | Code 39, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Interleaved 2 of 5, Postnet |
| Connectivity Technology | Wired |
| Interface | Serial |
| Language Simulation | EPSON ESC/P 2, IBM PPDS |
| Print Speed |
|
| RAM | |
| RAM Installed (Max) | 64 KB |
