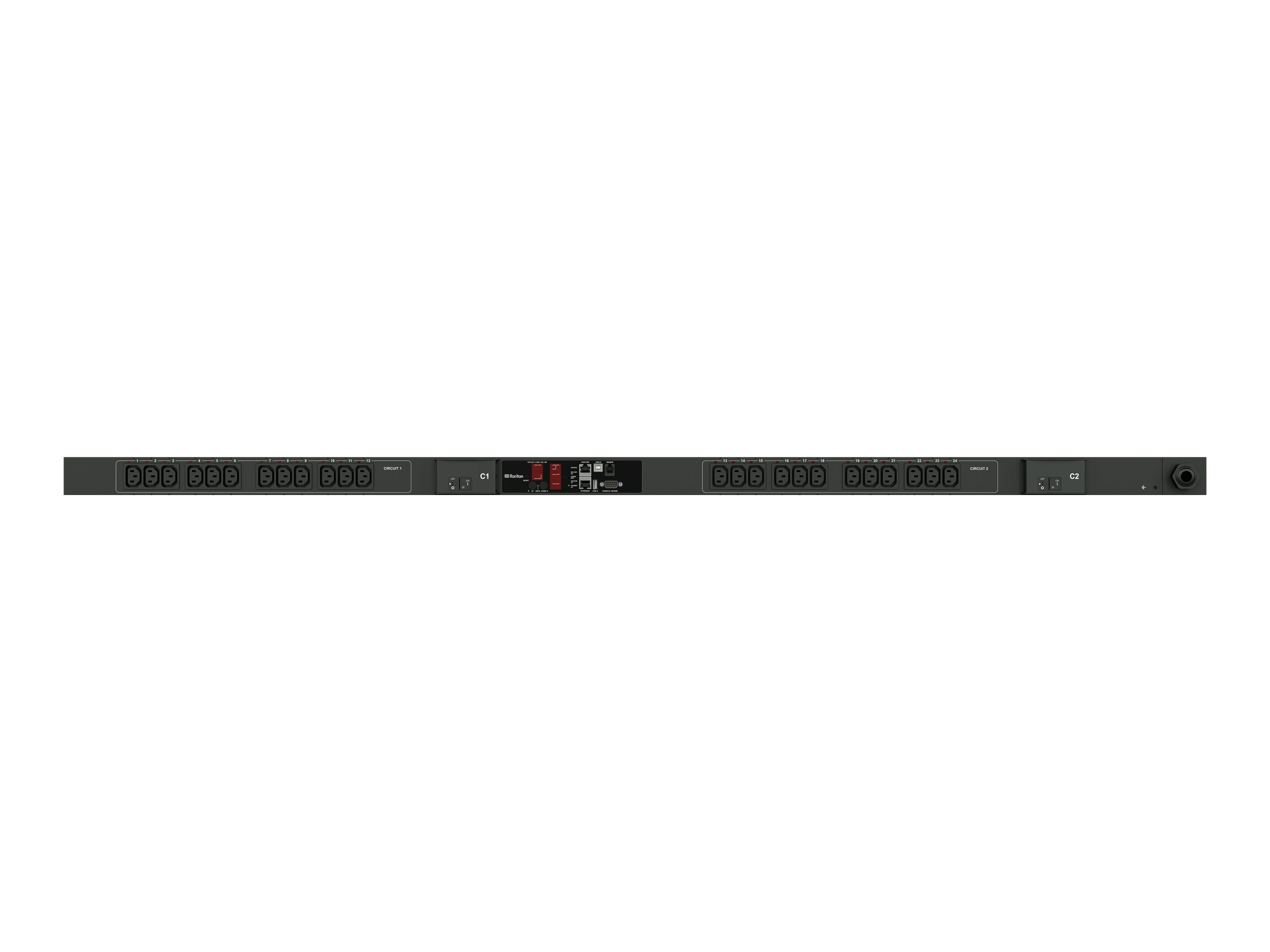

Raritan PX2-2496 - Power distribution unit (rack-mountable)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Raritan PX2-2496 - Power distribution unit (rack-mountable)
- AC 208 V
- 5000 VA
- 1-phase
- Ethernet 10/100, RS-232, Ethernet 10/100/1000
- input: NEMA L6-30P
- output connectors: 24 (24 x IEC 60320 C13)
- 0U
- red
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX2-2496-K1 |
| SHI Part #: | 28069279 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX2-2496 - Power distribution unit (rack-mountable) - AC 208 V - 5000 VA - 1-phase - Ethernet 10/100, RS-232, Ethernet 10/100/1000 - input: NEMA L6-30P - output connectors: 24 (24 x IEC 60320 C13) - 0U - red |
| Manufacturer | Legrand |
| MSRP | $1,549.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.5 cm |
| Dimensions & Weight / Height | 153.9 cm |
| Dimensions & Weight / Weight | 4.5 kg |
| Dimensions & Weight / Width | 5.2 cm |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Red |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 24 |
| Power Device / Power Capacity (VA) | 5000 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.5 cm |
| Height | 153.9 cm |
| Weight | 4.5 kg |
| Width | 5.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 11.5 cm |
| Shipping Height | 165.5 cm |
| Shipping Weight | 6.5 kg |
| Shipping Width | 28 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Red |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Image Color Disclaimer | The displayed product image may be a different color |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | UL, ICES-003, FCC Part 15 A, RoHS, cULus |
| Features | Vertical orientation, active power meter, current meter, energy meter, power factor meter, real power meter, voltage meter, metering per input line, metering per branch circuit breaker, remote outlet switching, environmental sensor ready, cascadable, ISO/IEC 62053-21 1% metering accuracy, bottom-front feed cord entry, power cable IP44 compliant, LED display, cord retention, Raritan SecureLock Ready, 2 x LEGBX66-20 overload protection |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232, Ethernet 10/100/1000 |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMP 2, SNMP 3, JSON-RPC |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-30P |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 200 - 240 V |
| Input Wiring | 1-phase |
| Max Electric Current | 30 A |
| Output Voltage | AC 208 V |
| Power Capacity | 5000 VA |
| Power Capacity Details | 4.8 kVA at 200 V, 5.8 kVA at 240 V |
| Power Output Connectors Details | 24 x power IEC 60320 C13 12 A |
