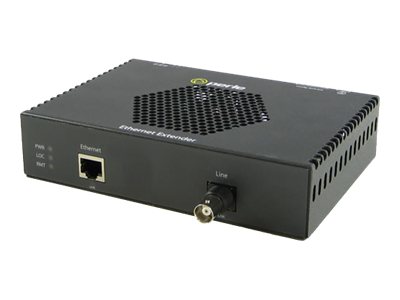

Perle eXP-1S1110L-BNC-XT


MSRP$1,231.00
$1,064.00
Perle eXP-1S1110L-BNC-XT

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Network extender
  • GigE, Ethernet over VDSL2
  • 10Base-T, 100Base-TX, 1000Base-T
  • up to 100 m
Perle eXP-1S1110L-BNC-XT
  • Network extender
  • GigE, Ethernet over VDSL2
  • 10Base-T, 100Base-TX, 1000Base-T
  • up to 100 m
  Additional Details
Price: $1,064.00
MSRP: $1,231.00
Mfr Part #: 06004320
SHI Part #: 27182118
Category: Serial port cards
UNSPSC: 43201559
Manufacturer: Perle Systems
Product Type: Hardware
General Information
CategorySerial port cards
DescriptionPerle eXP-1S1110L-BNC-XT - Network extender - GigE, Ethernet over VDSL2 - 10Base-T, 100Base-TX, 1000Base-T - up to 100 m
ManufacturerPerle Systems
MSRP$1,231.00
UNSPSC43201559
Main Specifications
Dimensions & Weight / Depth11.6 cm
Dimensions & Weight / Height3.7 cm
Dimensions & Weight / Weight580 g
Dimensions & Weight / Width16.3 cm
Header / BrandPerle
Header / Country KitsUnited States
Networking / Connectivity TechnologyWired
Networking / Data Link Protocol
  • Ethernet
  • Ethernet over VDSL2
  • Fast Ethernet
  • Gigabit Ethernet
Networking / Data Transfer Rate1 Gbps
Networking / Form FactorExternal
Networking / TypeNetwork extender
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth11.6 cm
Height3.7 cm
Weight580 g
Width16.3 cm
Environmental Parameters
Humidity Range Operating5 - 90% (non-condensing)
Max Operating Temperature75 °C
Min Operating Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45 female
  • 1 x VDSL2 - BNC female
General
Device TypeNetwork extender
Form FactorExternal
LocalizationUnited States
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsCISPR 24, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, CISPR 22, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, RoHS, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, REACH, CSA C22.2 No. 60950-1
Rack Mounting KitOptional
Networking
Cabling Type10Base-T, 100Base-TX, 1000Base-T
Connectivity TechnologyWired
Data Link Protocol10Mb LAN, 100Mb LAN, GigE, Ethernet over VDSL2
Data Transfer Rate1 Gbps
FeaturesAuto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, Interlink Fault Feedback, Loopback
Max Transfer Distance100 m
Status IndicatorsPower, link/activity
Power
Power Consumption Operational6.9 Watt
Power DeviceExternal power adapter
Power Provided65 Watt
