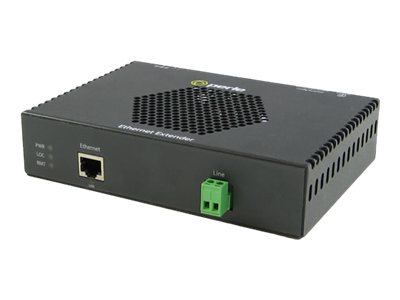

Perle Gigabit Ethernet PoE Ethernet Extender eXP-1S1110L-TB
MSRP$948.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Perle Gigabit Ethernet PoE Ethernet Extender eXP-1S1110L-TB
- Network extender
- GigE, Ethernet over VDSL2
- 10Base-T, 100Base-TX, 1000Base-T
- up to 100 m
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $948.00 |
| Mfr Part #: | 06004274 |
| SHI Part #: | 27182113 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | Perle Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | Perle Gigabit Ethernet PoE Ethernet Extender eXP-1S1110L-TB - Network extender - GigE, Ethernet over VDSL2 - 10Base-T, 100Base-TX, 1000Base-T - up to 100 m |
| Manufacturer | Perle Systems |
| MSRP | $948.00 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 11.6 cm |
| Dimensions & Weight / Height | 3.7 cm |
| Dimensions & Weight / Weight | 580 g |
| Dimensions & Weight / Width | 16.3 cm |
| Header / Brand | Perle |
| Header / Country Kits | United States |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | External |
| Networking / Type | Network extender |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 11.6 cm |
| Height | 3.7 cm |
| Weight | 580 g |
| Width | 16.3 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Network extender |
| Form Factor | External |
| Localization | United States |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | CISPR 22, CISPR 24, CSA C22.2 No. 60950-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN55022, EN55024, IEC 60950-1, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, RoHS, UL 60950-1, WEEE, REACH |
| Networking | |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T |
| Compliant Standards | IEEE 802.3at, IEEE 802.1Q, IEEE 802.3u, IEEE 802.3 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, Ethernet over VDSL2 |
| Features | Auto-uplink (auto MDI/MDI-X), Interlink Fault Feedback, Link Pass-Through, auto-negotiation, Loopback, VLAN support, short circuit protection, wall mountable, half duplex mode, full duplex mode |
| Max Transfer Distance | 100 m |
| Status Indicators | Power, status, link/activity, test mode |
| Power | |
| Power Device | External power adapter |
| Power Over Ethernet (PoE) | PoE |
| Power Provided | 65 Watt |
