AXIS M1004-W Network Camera
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

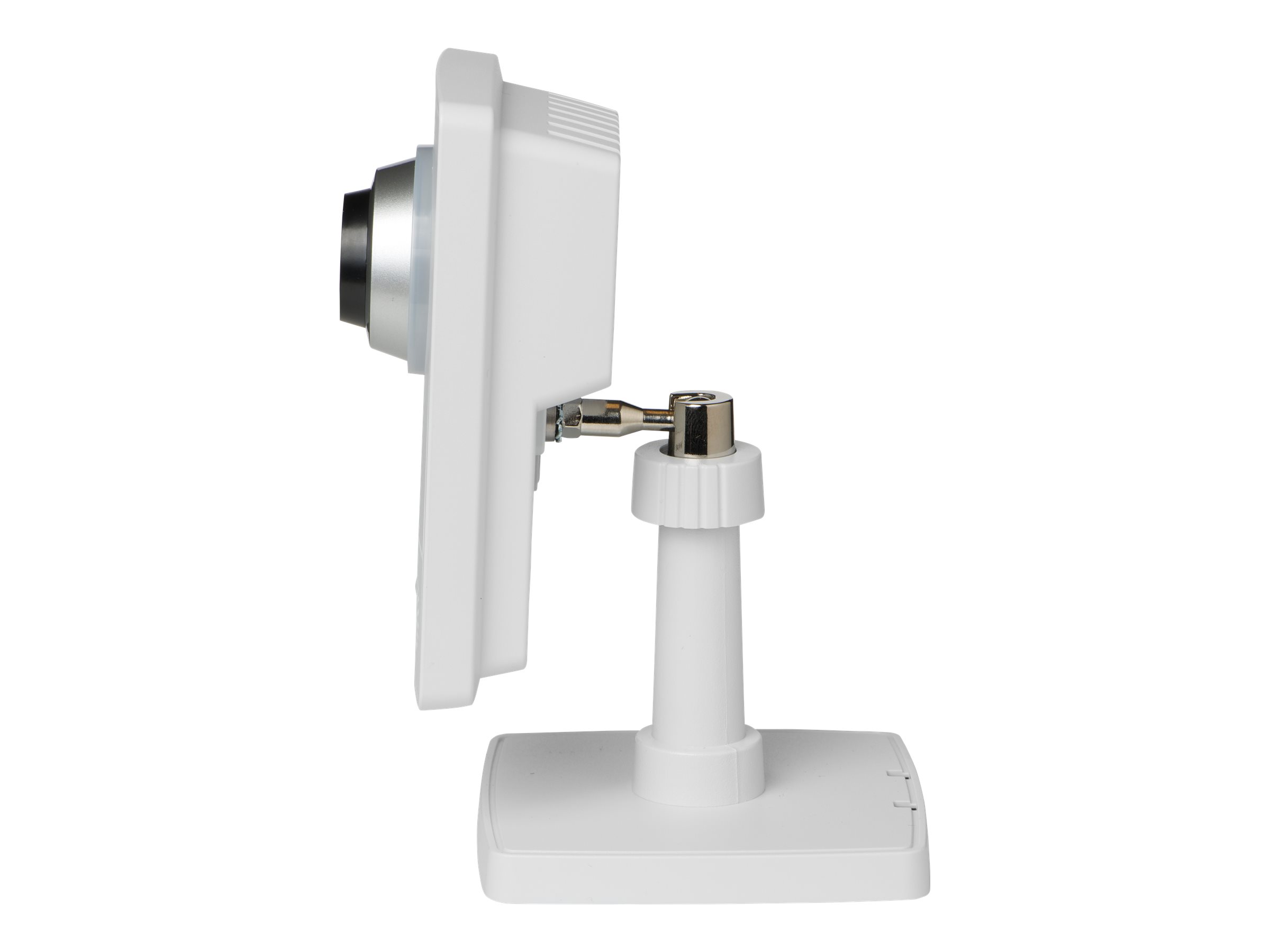

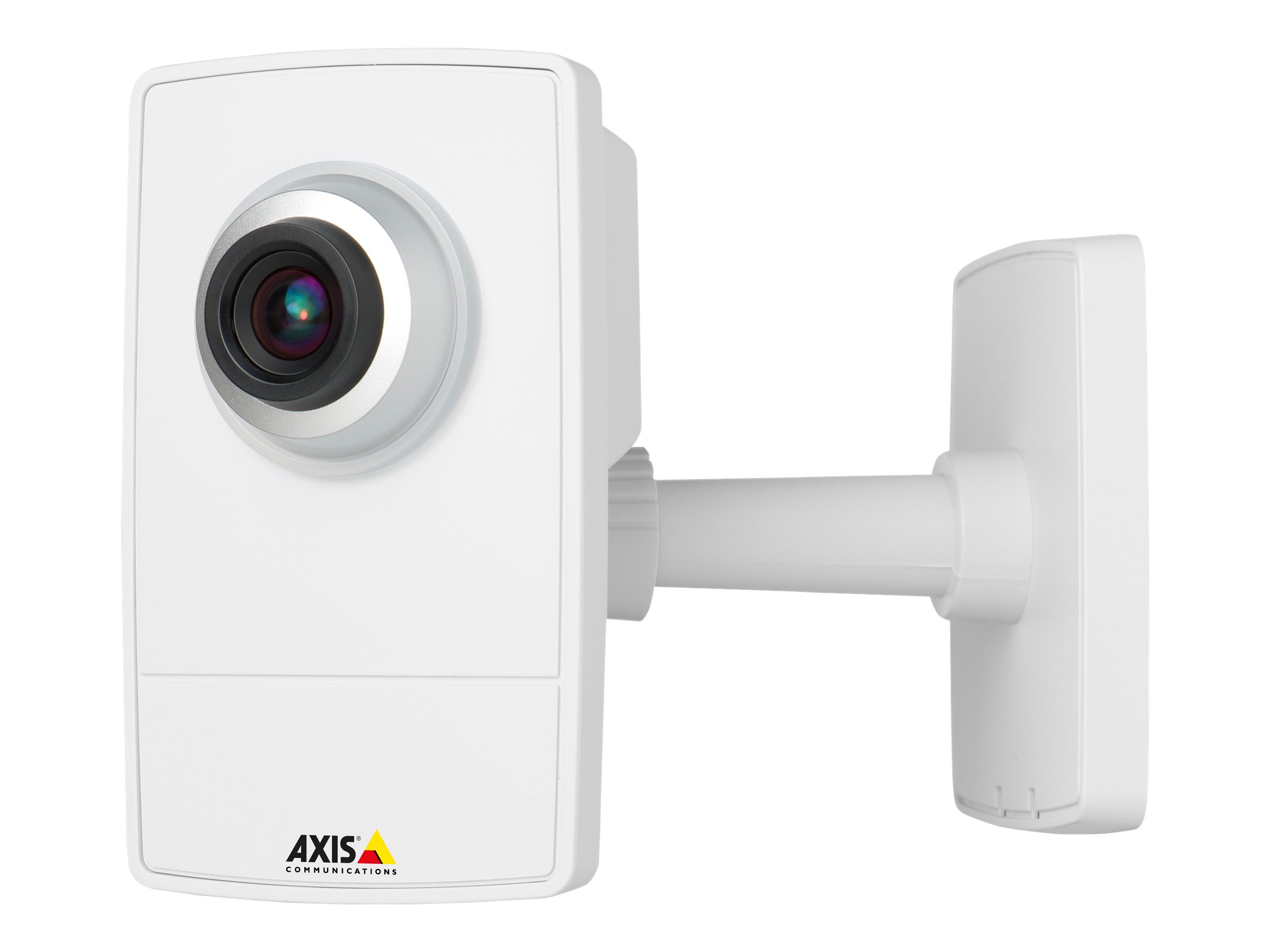

AXIS M1004-W Network Camera
- Network surveillance camera
- color
- 1280 x 800
- fixed iris
- wireless
- Wi-Fi
- LAN 10/100
- MPEG-4, MJPEG, H.264
- DC 5 V (pack of 10)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 0554-024 |
| SHI Part #: | 27160562 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Axis Communications |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | AXIS M1004-W Network Camera - Network surveillance camera - color - 1280 x 800 - fixed iris - wireless - Wi-Fi - LAN 10/100 - MPEG-4, MJPEG, H.264 - DC 5 V (pack of 10) |
| Manufacturer | Axis Communications |
| MSRP | $1,949.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 4.1 cm |
| Dimensions & Weight / Height | 9.5 cm |
| Dimensions & Weight / Weight | 111 g |
| Dimensions & Weight / Width | 5.9 cm |
| Header / Brand | Axis |
| Header / Country Kits | United States |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 10 |
| Service & Support / Type | 1-year warranty |
| Camera | |
| Digital Video Format | MPEG-4, MJPEG, H.264 |
| Exposure Range | 1/6 sec - 1/8000 sec |
| Features | Motion sensor, Backlight Compensation (BLC), sharpness control, digital image rotation, white balance, color control, alarm function, progressive scanning, brightness control, contrast control, image mirror, Wi-Fi Protected Setup (WPS), digital PTZ function |
| Flash Memory | 128 MB |
| Max Digital Video Resolution | 1280 x 800 |
| Minimum Illumination | 1.2 lux F2.0 |
| RAM | 256 MB |
| Type | Color - fixed |
| Video Capture |
|
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Relative Humidity (operating) | 20 - 80% (non-condensing) |
| Expansion / Connectivity | |
| Interfaces Details | 1 x network - Ethernet 10Base-T/100Base-TX - RJ-45 |
| General | |
| Connectivity Technology | Wired, wireless |
| Depth | 4.1 cm |
| Device Type | Network surveillance camera |
| Height | 9.5 cm |
| Localization | United States |
| Packaged Quantity | 10 (specifications are for single item) |
| Weight | 111 g |
| Width | 5.9 cm |
| Image Sensor | |
| Type | CMOS 1/4" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, QOS, CIFS |
| Lens Construction | |
| Focal Length | 2.8 mm |
| Horizontal Field of View (degree) | 80 |
| Lens Iris | F/2.0 fixed iris |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Color | White |
| Compliant Standards | C-Tick, VCCI Class B ITE, EN 61000-3-2, EN 61000-3-3, EN55024, CISPR 22, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, FCC Part 15 B, AS/NZS 4771, RSS-210, FCC Part 15 C, EN 61000-6-2, IEC 60950-1, EN 60950-1, ANATEL, TELEC, KCC Class B, EN 62311, EN 300 328, EN 301 489-1, EN 301 489-17 |
| Included Accessories | Stand |
| Package Type | Bulk |
| Power | |
| Power Device | Power adapter - external |
| Power Requirements | DC 5 V |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
