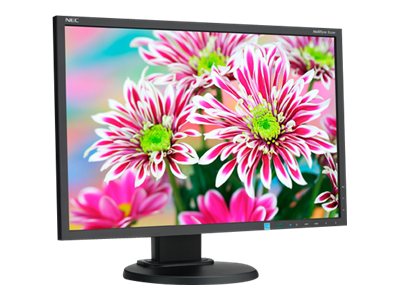

NEC MultiSync E223W-BK
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
NEC MultiSync E223W-BK
- LED monitor
- 22"
- 1680 x 1050 720p
- TN
- 250 cd/m²
- 1000:1
- 5 ms
- DVI-D, VGA, DisplayPort
- black
| Additional Details | |
|---|---|
| Mfr Part #: | E223W-BK |
| SHI Part #: | 27070118 |
| Category: | Flat panel displays |
| UNSPSC: | 43211902 |
| Manufacturer: | NEC |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Flat panel displays |
| Description | NEC MultiSync E223W-BK - LED monitor - 22" - 1680 x 1050 720p - TN - 250 cd/m² - 1000:1 - 5 ms - DVI-D, VGA, DisplayPort - black |
| Manufacturer | NEC |
| UNSPSC | 43211902 |
| Main Specifications | |
| Dimensions & Weight / Depth | 21.39 cm |
| Dimensions & Weight / Height | 38.33 cm |
| Dimensions & Weight / Weight | 5.9 kg |
| Dimensions & Weight / Width | 50.35 cm |
| Display / Diagonal Size | 22 in |
| Display / Diagonal Size (metric) | 55.9 cm |
| Display / Interface |
|
| Display / Native Resolution | 1680 x 1050 |
| Display / Pixel Pitch | 0.28 mm |
| Display / Type | LED-backlit LCD monitor |
| Header / Brand | NEC |
| Image Brightness | 250 cd/m² |
| Miscellaneous / Compliant Standards |
|
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Connectivity | |
| Interfaces |
|
| Dimensions & Weight | |
| Dimensions & Weight Details |
|
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| General | |
| Aspect Ratio | 16:10 |
| Backlight Technology | WLED |
| Brightness | 250 cd/m² |
| Color | Black |
| Color Support | 16.7 million colors |
| Contrast Ratio | 1000:1 |
| Diagonal Size | 22" |
| Dimensions (WxDxH) | 50.35 cm x 21.39 cm x 38.33 cm - with stand |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Class | Class A+ |
| Energy Consumption per Year | 25 kWh |
| Features | Ambient light sensor, XtraView, AccuColor Control Systems, Rapid Response, No Touch Auto Adjust, Ambix, Intelligent Power Manager (IPM), Dynamic Video Mode, HDCP, NaViSet, Eco-Mode, Carbon Footprint Meter |
| Horizontal Refresh Rate | 31.5 - 82.3 kHz |
| Horizontal Viewing Angle | 178 |
| Native Resolution | HD 720p 1680 x 1050 |
| Panel Type | TN |
| Pixel Per Inch | 90 |
| Pixel Pitch | 0.28 mm |
| Response Time | 5 ms |
| Vertical Refresh Rate | 56 - 75 Hz |
| Vertical Viewing Angle | 178 |
| Weight | 5.9 kg |
| Manufacturer Warranty | |
| Service & Support |
|
| Mechanical | |
| Display Position Adjustments | Height, pivot (rotation), swivel, tilt |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | DDC-1, DDC-2B, ISO 13406-2, VESA DPMS, DDC/CI, RoHS |
| Features | Security lock slot (cable lock sold separately), cable organizer |
| Power | |
| Input Voltage | AC 120/230 V (50 - 60 Hz) |
| Power Consumption (On mode) | 17 W |
| Power Consumption (Typical) | 24 Watt |
| Power Consumption Stand by | 0.35 Watt |
| Power Supply | Internal |
| Software / System Requirements | |
| Included Software | NaViSet |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
