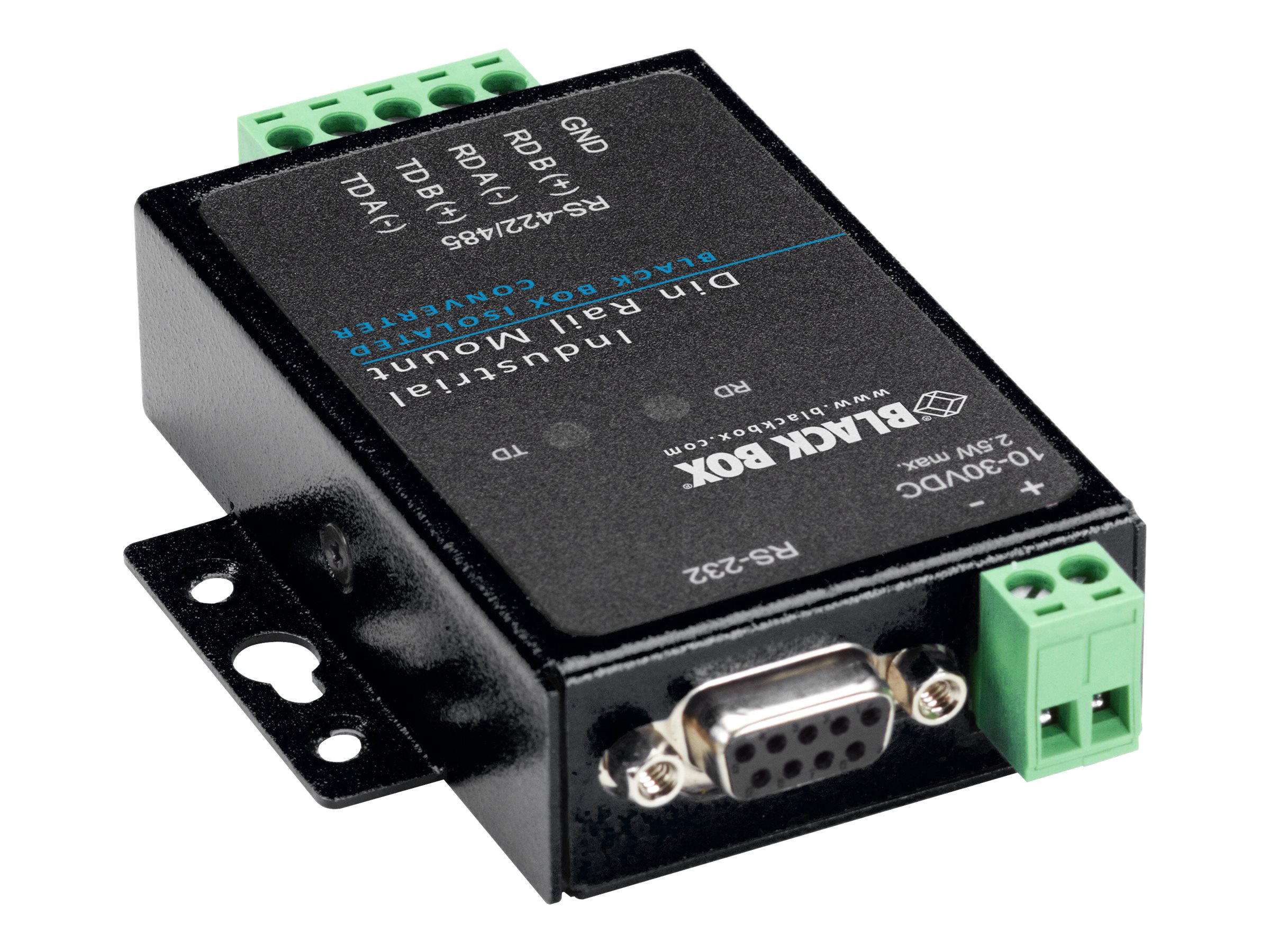

Black Box Industrial RS-232 to RS-485/422 Converter
MSRP$252.99
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Black Box Industrial RS-232 to RS-485/422 Converter
- Serial adapter
- RS-232
- RS-422/485
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $252.99 |
| Mfr Part #: | ICD400A |
| SHI Part #: | 26935049 |
| Category: | Network interface cards |
| UNSPSC: | 43201404 |
| Manufacturer: | Black Box |
| Product Type: | Hardware |
Power Management
| General Information | |
|---|---|
| Category | Network interface cards |
| Description | Black Box Industrial RS-232 to RS-485/422 Converter - Serial adapter - RS-232 - RS-422/485 - TAA Compliant |
| Manufacturer | Black Box |
| MSRP | $252.99 |
| UNSPSC | 43201404 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.4 cm |
| Dimensions & Weight / Height | 9.9 cm |
| Dimensions & Weight / Weight | 150 g |
| Dimensions & Weight / Width | 2.3 cm |
| Header / Brand | Black Box |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 460.8 Kbps |
| Networking / Type | Serial adapter |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 7.4 cm |
| Height | 9.9 cm |
| Weight | 150 g |
| Width | 2.3 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Expansion / Connectivity | |
| Connections | 1 x serial - RS-232 - 9 pin D-Sub (DB-9) |
| Interfaces | 1 x RS-422/485 - 5 pin terminal block |
| General | |
| Device Type | Serial adapter |
| Form Factor | DIN rail mountable |
| Interface (Bus) Type | Serial RS-232 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | UL, FCC, IP30 |
| Mounting Kit | Included |
| MTBF | 217,576 hours |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232, ASCII, RS-422, RS-485, Modbus |
| Data Transfer Rate | 460.8 Kbps |
| Features | Half duplex mode, full duplex mode, surge protection, rugged, 2 KV Electrostatic Discharge Protection |
| Ports | RS-422/485 |
| Status Indicators | Power, transmit, receive |
