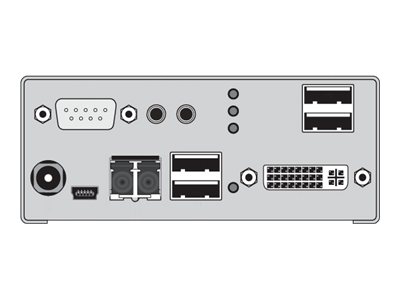

Black Box ServSwitch DKM Receiver, Fibre Single-Link DVI

MSRP$1,910.66

$1,881.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Video/audio/USB/serial extender receiver up to 10 km for P/N: ACX0000, ACX048, ACX080, ACX0808, ACX0816, ACX0832, ACX160, ACX1616, ACX1632, ACX288

Black Box ServSwitch DKM Receiver, Fibre Single-Link DVI

Video/audio/USB/serial extender
receiver
up to 10 km
for P/N: ACX0000, ACX048, ACX080, ACX0808, ACX0816, ACX0832, ACX160, ACX1616, ACX1632, ACX288

General Information
Category	Serial port cards
Description	Black Box ServSwitch DKM Receiver, Fibre Single-Link DVI - Video/audio/USB/serial extender - receiver - up to 10 km - for P/N: ACX0000, ACX048, ACX080, ACX0808, ACX0816, ACX0832, ACX160, ACX1616, ACX1632, ACX288
Manufacturer	Black Box
MSRP	$1,910.66
UNSPSC	43201559
Main Specifications
Dimensions & Weight / Depth	14.3 cm
Dimensions & Weight / Height	4.3 cm
Dimensions & Weight / Width	10.3 cm
Header / Brand	Black Box
Networking / Connectivity Technology	Wired
Networking / Form Factor	External
Networking / Type	Video/audio/USB/serial extender
Packaged Quantity	1
Compatibility Information
Designed For	P/N: ACX0000, ACX048, ACX080, ACX0808, ACX0816, ACX0832, ACX160, ACX1616, ACX1632, ACX288
Dimensions & Weight
Depth	14.3 cm
Height	4.3 cm
Width	10.3 cm
Environmental Parameters
Humidity Range Operating	0 - 80% (non-condensing)
Max Operating Temperature	45 °C
Min Operating Temperature	5 °C
Expansion / Connectivity
Interfaces	1 x DVI-I female 4 x USB - Type A female 1 x network - LC single-mode female x 2 1 x USB - mini-USB Type B female 1 x audio (input) - mini jack female 1 x audio (output) - mini jack female 1 x RS-232 - DB-9 female
General
Device Type	Video/audio/USB/serial extender (receiver)
Form Factor	External
Networking
Connectivity Technology	Wired
Features	Firmware upgradable
Max Resolution	2048 x 1152 @ 60 Hz
Max Transfer Distance	10 km
Power
Power Device	External power adapter
Voltage Required	AC 120/230 V (50/60 Hz)
