Control/Interface Boards

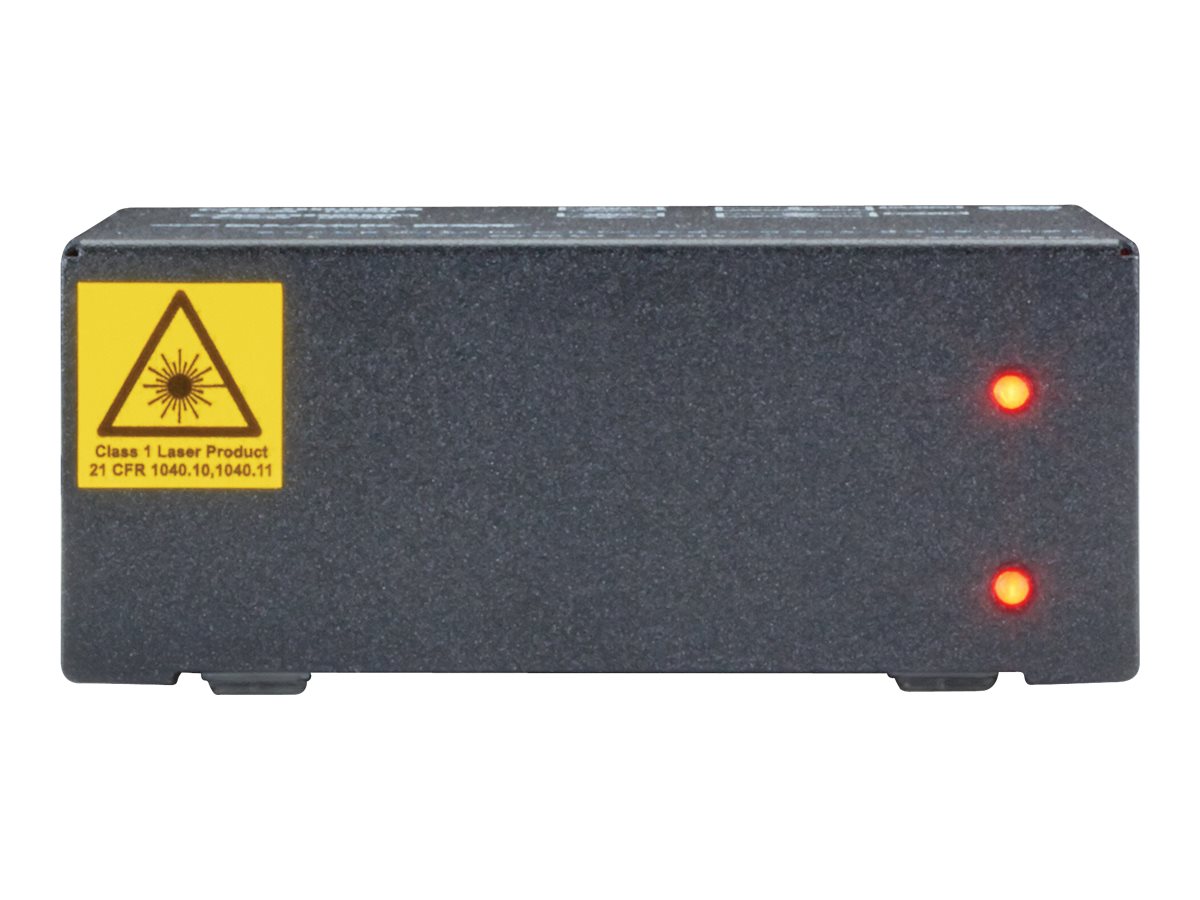

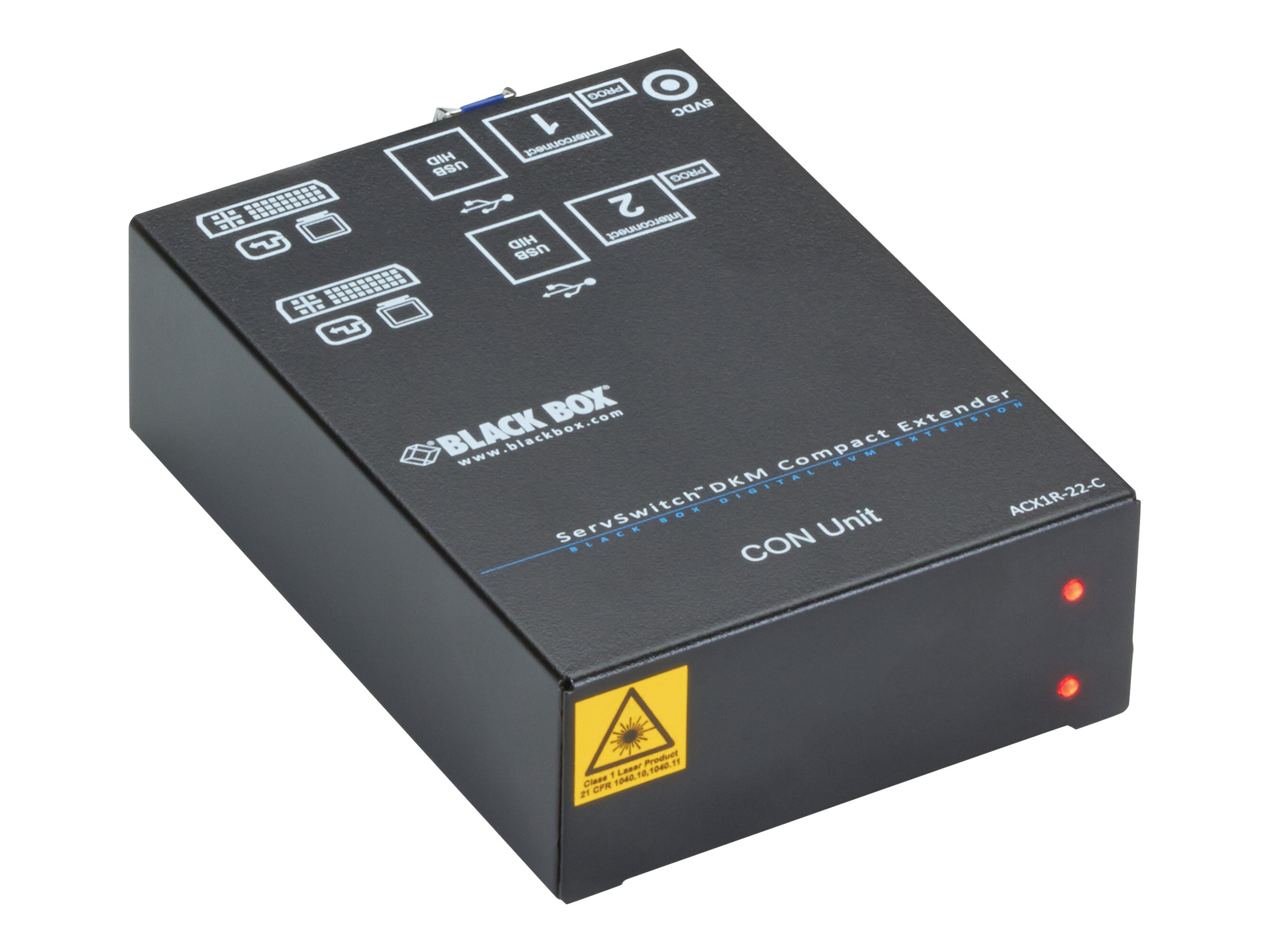

Black Box ServSwitch DKM Receiver, CATx Single-Link DVI

MSRP$1,935.52
$1,905.00
Black Box ServSwitch DKM Receiver, CATx Single-Link DVI
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Video/USB extender
  • receiver
  • up to 140 m
  • for P/N: ACX0000, ACX048, ACX080, ACX0808, ACX0816, ACX0832, ACX160, ACX1616, ACX1632, ACX288
Black Box ServSwitch DKM Receiver, CATx Single-Link DVI
  • Video/USB extender
  • receiver
  • up to 140 m
  • for P/N: ACX0000, ACX048, ACX080, ACX0808, ACX0816, ACX0832, ACX160, ACX1616, ACX1632, ACX288
  Additional Details
Price: $1,905.00
MSRP: $1,935.52
Mfr Part #: ACX1R-22-C
SHI Part #: 26510802
Category: Serial port cards
UNSPSC: 43201559
Manufacturer: Black Box
Product Type: Hardware
General Information
CategorySerial port cards
DescriptionBlack Box ServSwitch DKM Receiver, CATx Single-Link DVI - Video/USB extender - receiver - up to 140 m - for P/N: ACX0000, ACX048, ACX080, ACX0808, ACX0816, ACX0832, ACX160, ACX1616, ACX1632, ACX288
ManufacturerBlack Box
MSRP$1,935.52
UNSPSC43201559
Main Specifications
Dimensions & Weight / Depth14.3 cm
Dimensions & Weight / Height4.3 cm
Dimensions & Weight / Width10.3 cm
Header / BrandBlack Box
Networking / Connectivity TechnologyWired
Networking / Form FactorExternal
Networking / TypeVideo/USB extender
Packaged Quantity1
Compatibility Information
Designed ForP/N: ACX0000, ACX048, ACX080, ACX0808, ACX0816, ACX0832, ACX160, ACX1616, ACX1632, ACX288
Dimensions & Weight
Depth14.3 cm
Height4.3 cm
Width10.3 cm
Environmental Parameters
Humidity Range Operating0 - 80% (non-condensing)
Max Operating Temperature45 °C
Min Operating Temperature5 °C
Expansion / Connectivity
Interfaces
  • 2 x DVI-I female
  • 4 x USB - Type A female
  • 2 x network - RJ-45 female
  • 2 x USB - mini-USB Type B female
General
Device TypeVideo/USB extender (receiver)
Form FactorExternal
Networking
Connectivity TechnologyWired
FeaturesFirmware upgradable
Max Resolution2048 x 1152 @ 60 Hz
Max Transfer Distance140 m
Power
Power DeviceExternal power adapter
Voltage RequiredAC 120/230 V (50/60 Hz)
