Panasonic WV-CW334S - CCTV camera
MSRP$425.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

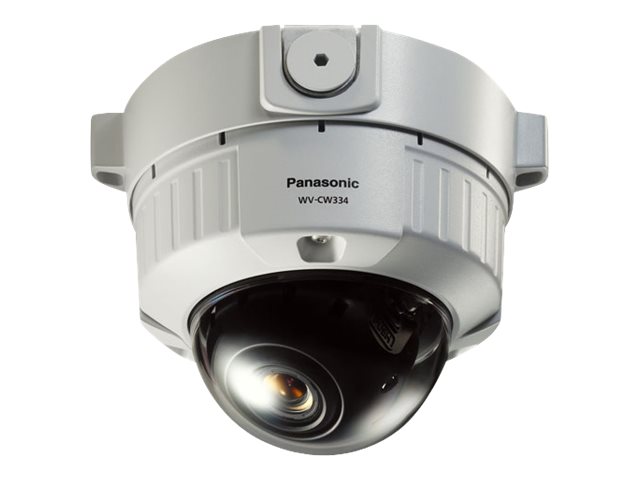

Panasonic WV-CW334S - CCTV camera
- dome
- dust / vandal / waterproof
- color ( Day&Night )
- auto iris
- vari-focal
- 540 TVL
- composite
- DC 12 V / AC 24 V
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $425.00 |
| Mfr Part #: | WVCW334S |
| SHI Part #: | 26243068 |
| Category: | Security cameras |
| UNSPSC: | 46171610 |
| Manufacturer: | i-Pro Americas Inc. |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Security cameras |
| Description | Panasonic WV-CW334S - CCTV camera - dome - dust / vandal / waterproof - color ( Day&Night ) - auto iris - vari-focal - 540 TVL - composite - DC 12 V / AC 24 V |
| Manufacturer | i-Pro Americas Inc. |
| MSRP | $425.00 |
| UNSPSC | 46171610 |
| Main Specifications | |
| C.P.U. | ANGCAM |
| Dimensions & Weight / Weight | 004.74 |
| Height | 011.00 |
| Length | 011.00 |
| UPC | 0885170048560 |
| Width | 010.00 |
| Camera | |
| Features | Backlight Compensation (BLC), Adaptive Black Stretch (ABS), auto tracking white, Iintelligent Video Motion Detection (i-VMD), auto white balance |
| Horizontal Resolution (TV Lines) | 540 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - fixed - dust / vandal / waterproof |
| Video Format | NTSC |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -10 °C |
| Relative Humidity (operating) | 0 - 90% (non-condensing) |
| Expansion / Connectivity | |
| Interfaces Details |
|
| General | |
| Camera Mount Type | Surface mount, flush mount, ceiling mount |
| Depth | 16.4 cm |
| Device Type | Surveillance camera |
| Form Factor | Dome |
| Height | 14.6 cm |
| Weight | 1.05 kg |
| Width | 19.2 cm |
| Image Sensor | |
| Effective Pixels | 768 x 494 |
| Type | CCD 1/3" |
| Interfaces | |
| Video | Composite video |
| Lens Construction | |
| Focal Length | 2.8 mm - 10 mm |
| Focus Adjustment | Manual |
| Horizontal Field of View (degree) | 27.39 - 100.18 |
| Lens Iris | F/1.3-3.1 auto iris |
| Min Focus Distance | 1.2 m |
| Optical Zoom | 3.6 x |
| Type | Vari-focal |
| Vertical Field of View (degree) | 20.45 - 73.33 |
| Miscellaneous | |
| Compliant Standards | UL, cUL, IEC 60529 IP66, ICES-003 Class A, UL 60065, CSA C22.2 No. 60065, IEC 60068-2-75, FCC Part 15 A |
| Panning | |
| Range (degree) | -140 to +180 |
| Power | |
| Power Requirements | DC 12 V / AC 24 V |
| Tilting | |
| Range (degree) | -75 to +75 |
