Hardware Computer Accessories Laptop Docks and Port Replication
Add to My Favorites
Laptop Docks and Port Replication

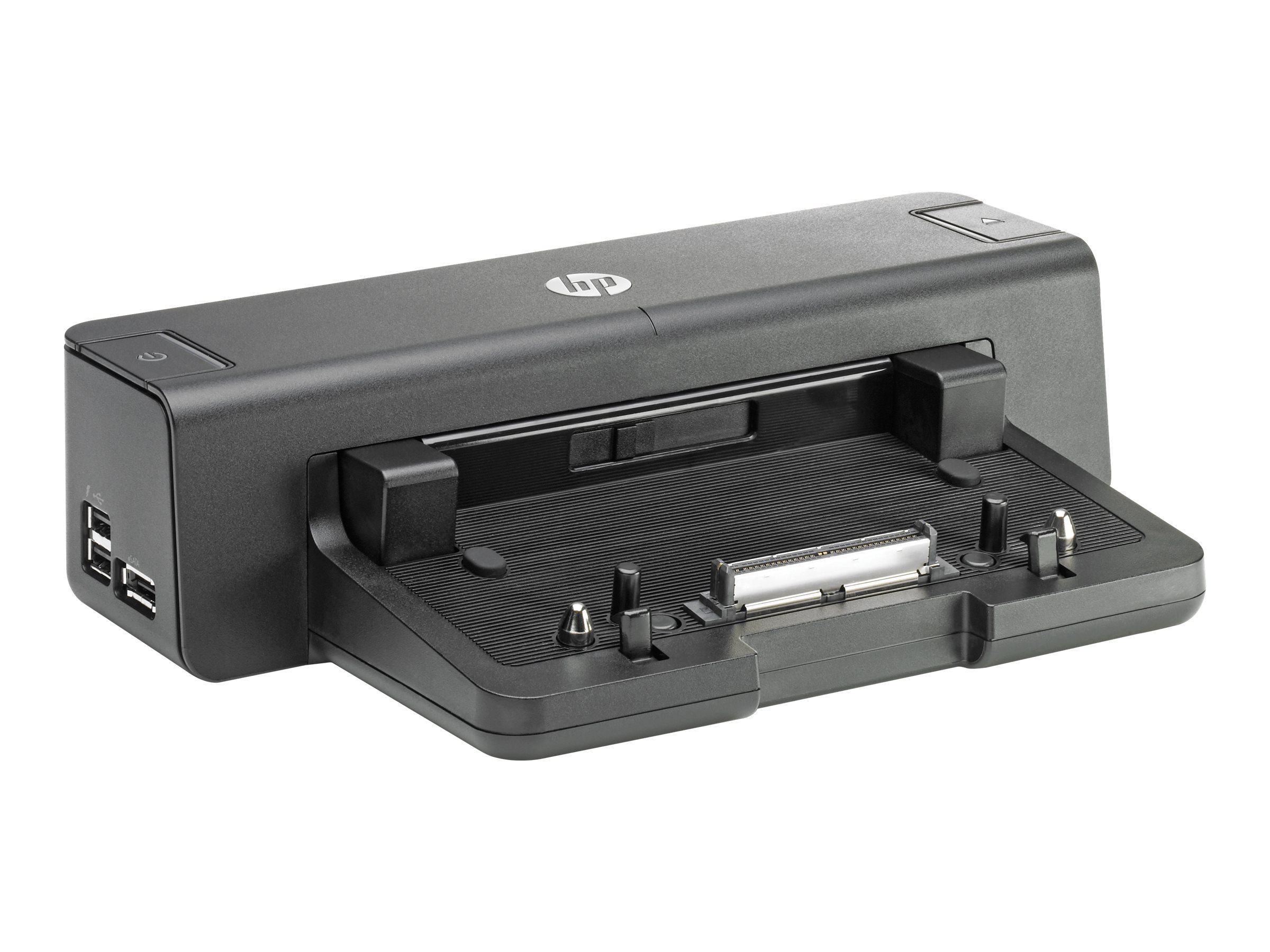

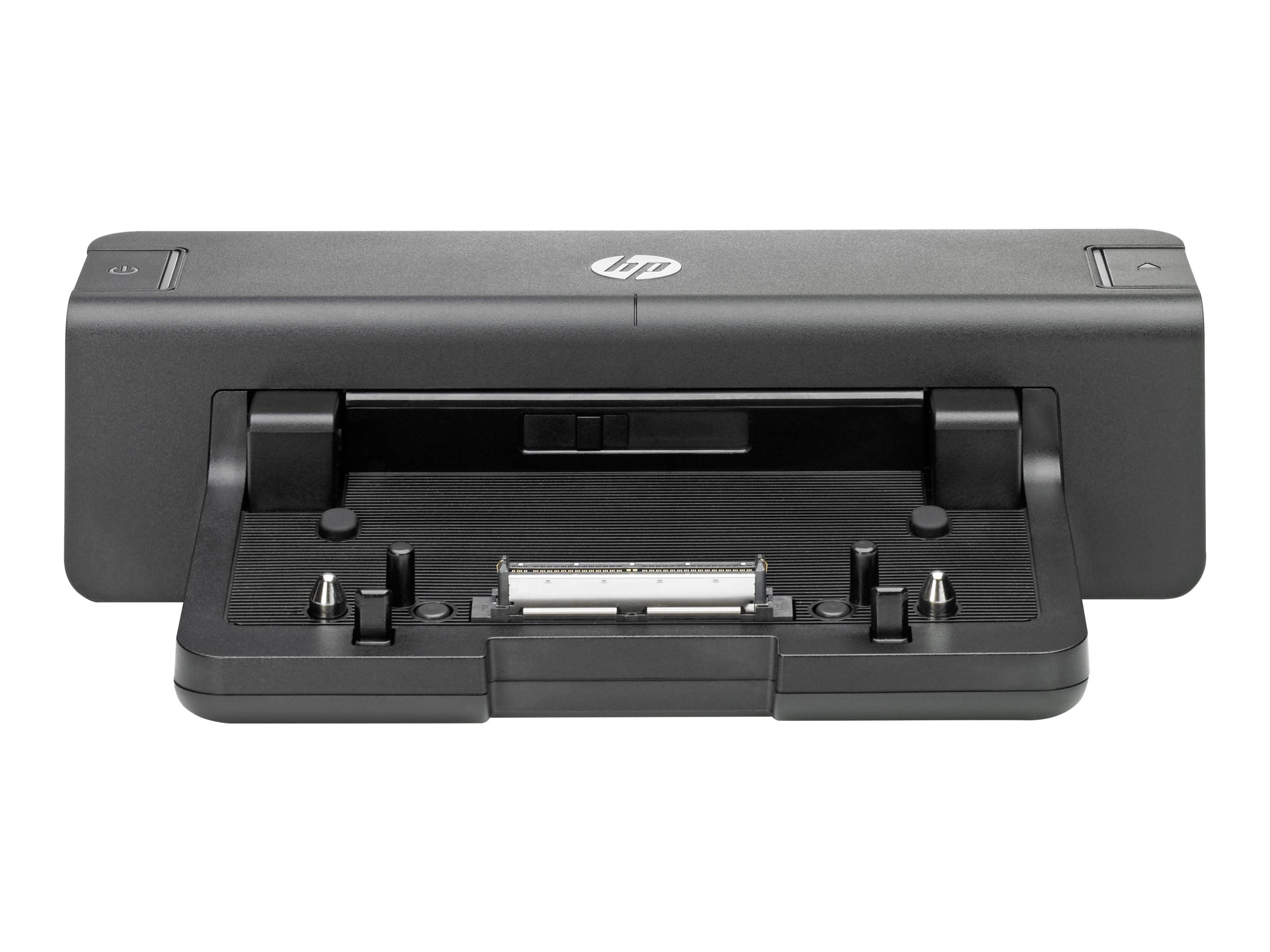

HP 2012 230W Docking Station

Login for Price
HP 2012 230W Docking Station
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Docking station
  • for EliteBook 2170p, 8440p, 8460p, 8470p, 8470w, 8540p, 8540w, 8560p, 8560w, 8570p, 8570w
HP 2012 230W Docking Station
  • Docking station
  • for EliteBook 2170p, 8440p, 8460p, 8470p, 8470w, 8540p, 8540w, 8560p, 8560w, 8570p, 8570w
  Additional Details
Mfr Part #: A7E34AA
SHI Part #: 26077401
Category: Docking stations
UNSPSC: 43211602
Manufacturer: HP, Inc.
Product Type: Hardware
General Information
CategoryDocking stations
DescriptionHP 2012 230W Docking Station - Docking station - for EliteBook 2170p, 8440p, 8460p, 8470p, 8470w, 8540p, 8540w, 8560p, 8560w, 8570p, 8570w
ManufacturerHP, Inc.
UNSPSC43211602
Main Specifications
Dimensions & Weight / Depth16.36 cm
Dimensions & Weight / Height6.6 cm
Dimensions & Weight / Weight1.07 kg
Dimensions & Weight / Width26 cm
Header / BrandHP
Optical Storage / TypeNone
Packaged Quantity1
System / Device Type (AI)Docking station
Compatibility Information
Designed For
  • HP EliteBook 2170p, 8440p Notebook, 8460p Notebook, 8470p Notebook, 8470w Mobile Workstation, 8540p Notebook, 8540w Mobile Workstation, 8560p Notebook, 8560w Mobile Workstation, 8570p Notebook, 8570w Mobile Workstation, 8740w Mobile Workstation, 8760w Mobile Workstation, 8770w Mobile Workstation
  • HP ProBook 6360b, 640 G1 Notebook, 6440b, 645 G1 Notebook, 6450b, 6460b, 6465b, 6470b, 6475b, 650 G1 Notebook, 6540b, 6545b, 655 G1 Notebook, 6550b, 6555b, 6560b, 6570b
  • HP ZBook 15 G2 Mobile Workstation, 15 Mobile Workstation, 17 G2 Mobile Workstation, 17 Mobile Workstation
Environmental Parameters
Max Operating Temperature35 °C
Min Operating Temperature10 °C
Expansion / Connectivity
Interfaces
  • 4 x USB 2.0 - 4 pin USB Type A
  • 1 x monitor stand port
  • 1 x parallel - parallel - 25 pin D-Sub (DB-25)
  • 1 x display / video - DVI-Digital - 24+1 pin digital DVI
  • 1 x network - RJ-45
  • 1 x display / video - DisplayPort - 20 pin DisplayPort
  • 1 x display / video - VGA - 15 pin HD D-Sub (HD-15)
  • 1 x serial - RS-232 - 9 pin D-Sub (DB-9)
  • 1 x audio - line-in - mini-phone 3.5 mm
  • 1 x headphones - output - mini-phone stereo 3.5 mm
  • 1 x mouse - generic - 6 pin mini-DIN (PS/2 style)
  • 1 x keyboard - generic - 6 pin mini-DIN (PS/2 style)
General
Depth16.36 cm
Height6.6 cm
Product TypeDocking station
Weight1.07 kg
Width26 cm
Miscellaneous
FeaturesSecurity lock slot (cable lock sold separately)
Security Slot TypeKensington security slot
Power
Power DevicePower adapter - internal
Voltage RequiredAC 120/230 V (50/60 Hz)
