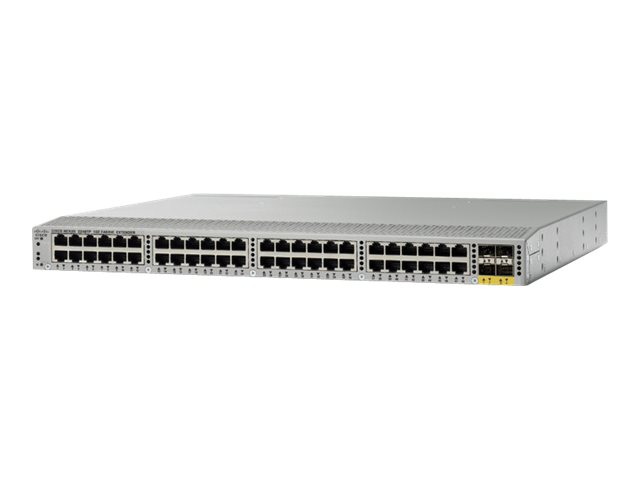

Cisco Nexus 2248TP-E GE Fabric Extender
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Cisco Nexus 2248TP-E GE Fabric Extender
- Expansion module
- Gigabit Ethernet x 48 + 4 x SFP+ (uplink)
- for Nexus 5010, 5020, 7000, 7009, 7010, 7010 Fabric-2
| Additional Details | |
|---|---|
| Mfr Part #: | N2K-C2248TP-E-1GE= |
| SHI Part #: | 25571470 |
| Category: | Network interface cards |
| UNSPSC: | 43201404 |
| Manufacturer: | Cisco Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network interface cards |
| Description | Cisco Nexus 2248TP-E GE Fabric Extender - Expansion module - Gigabit Ethernet x 48 + 4 x SFP+ (uplink) - for Nexus 5010, 5020, 7000, 7009, 7010, 7010 Fabric-2 |
| Manufacturer | Cisco Systems |
| UNSPSC | 43201404 |
| Main Specifications | |
| Dimensions & Weight / Depth | 45 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 8 kg |
| Dimensions & Weight / Width | 43.9 cm |
| Header / Brand | Cisco |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Type | Expansion module |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Compatibility Information | |
| Designed For | Cisco Nexus 5010, 5010 OSM version, 5020, 7000 Series 18-Slot Chassis 110Gbps/Slot Fabric Module, 7000 Series 9-Slot Chassis, 7000 Series 9-Slot Chassis 110Gbps/Slot Fabric Module, 7009, 7010, 7010 Bundle, 7010 Fabric-2 Module |
| Dimensions & Weight | |
| Depth | 45 cm |
| Height | 4.4 cm |
| Weight | 8 kg |
| Width | 43.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Expansion Slots | 4 (total) / 4 (free) x SFP+ |
| Interfaces | 48 x 1000Base-T - RJ-45 |
| General | |
| Device Type | Expansion module |
| Form Factor | Rack-mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, EN 300 386 |
| Networking | |
| Auxiliary Ports | 4 x SFP+ (uplink) |
| Cabling Type | Ethernet 100Base-TX, Ethernet 1000Base-T |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3an |
| Connectivity Technology | Wired |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet |
| Features | Flow control, full duplex capability, uplink, hot swap module replacement, auto-negotiation, VLAN support, IGMP snooping, Syslog support, WRR queuing, IPv6 support, STP support, ACL support, QoS, Jumbo Frames support |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP |
| Ports | Gigabit Ethernet x 48 |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, SNMP 3 |
| Status Indicators | Port status, power, system |
| Power | |
| Power Consumption Operational | 110 Watt |
| Power Device | Power supply - hot-plug / redundant - plug-in module |
| Processor / Memory | |
| RAM | 32 MB |
