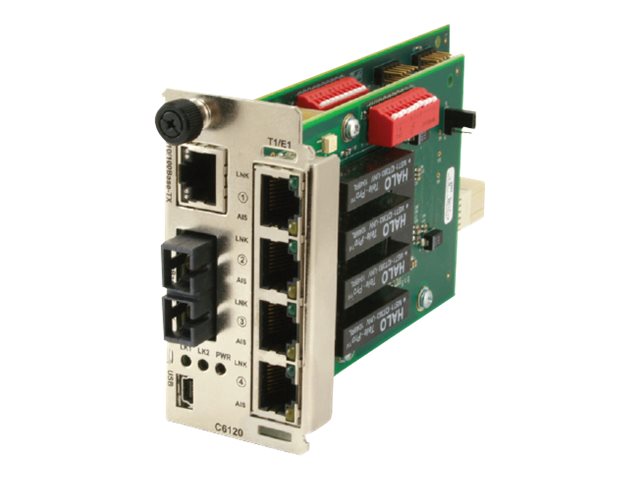

Transition Networks C6120 Series 4xT1/E1/J1 + 10/100 Ethernet Copper to Fiber Network Interface Device
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Transition Networks C6120 Series 4xT1/E1/J1 + 10/100 Ethernet Copper to Fiber Network Interface Device
- Short-haul modem
- 100Mb LAN
- 10Base-T, 100Base-TX
- up to 20 km
- T-1/E-1/J-1
- 1310 nm
| Additional Details | |
|---|---|
| Mfr Part #: | C6120-1014 |
| SHI Part #: | 25083009 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | Transition Networks |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | Transition Networks C6120 Series 4xT1/E1/J1 + 10/100 Ethernet Copper to Fiber Network Interface Device - Short-haul modem - 100Mb LAN - 10Base-T, 100Base-TX - up to 20 km - T-1/E-1/J-1 - 1310 nm |
| Manufacturer | Transition Networks |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.5 cm |
| Dimensions & Weight / Height | 8.6 cm |
| Dimensions & Weight / Width | 4.4 cm |
| Header / Brand | Transition Networks |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 100 Mbps |
| Networking / Form Factor | Plug-in module |
| Networking / Type | Short-haul modem |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 16.5 cm |
| Height | 8.6 cm |
| Width | 4.4 cm |
| Expansion / Connectivity | |
| Compatible Slots | 1 x expansion slot |
| Interfaces |
|
| General | |
| Device Type | Short-haul modem |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | EN55024, EN55022 Class A |
| Networking | |
| Cabling Type | 10Base-T, 100Base-TX |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Features | Flow control, auto-uplink (auto MDI/MDI-X), manageable, AutoCross, firmware upgradable |
| Framing Format | ANSI T1.403, G.703 |
| Line Rate | T-1/E-1/J-1 |
| Max Transfer Distance | 20 km |
| Optical Wave Length | 1310 nm |
| Status Indicators | Power, status |
| Power | |
| Power Consumption Operational | 6 Watt |
