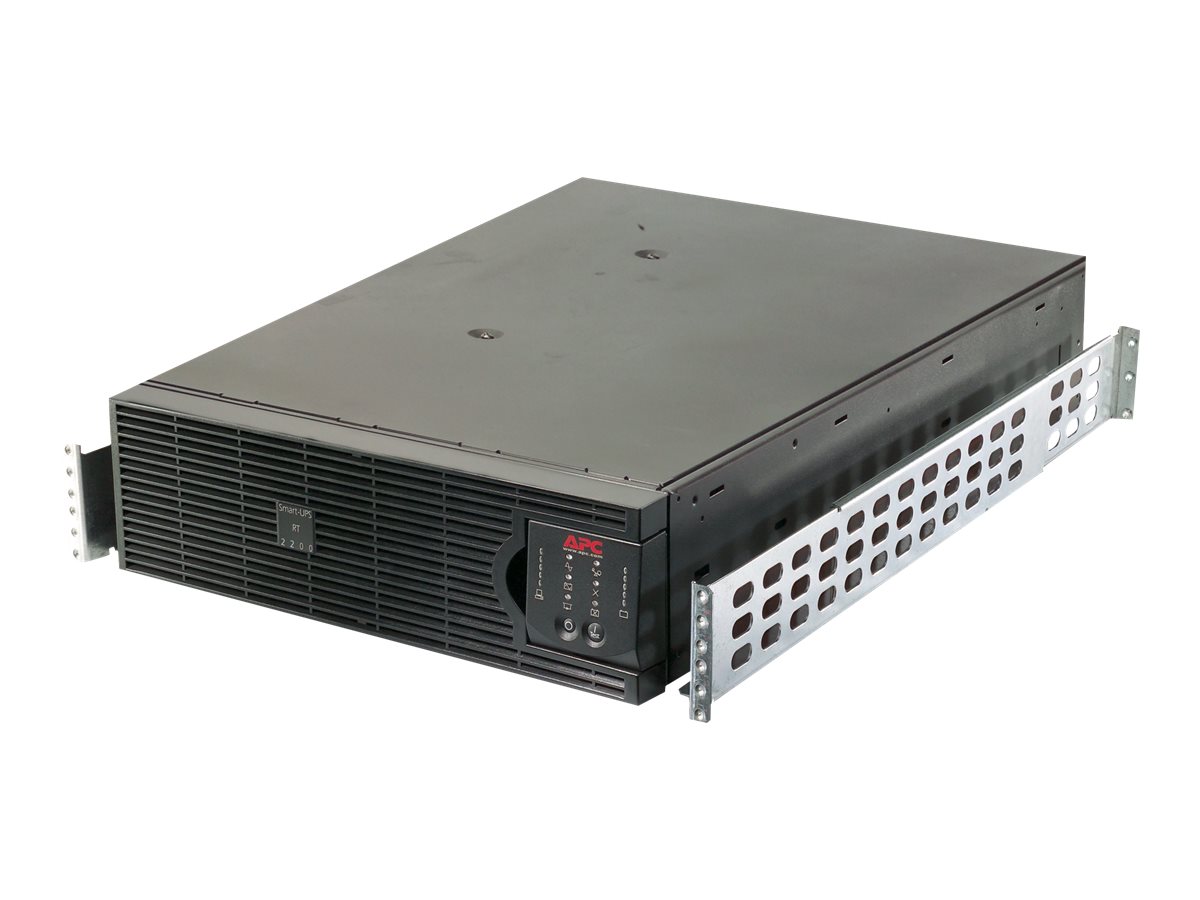

APC Smart-UPS RT 2200 Marine


MSRP$3,410.00
$2,511.00
APC Smart-UPS RT 2200 Marine - UPS - 1.54 kW - 2200 VA

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • UPS
  • AC 220/230/240 V
  • 1.54 kW
  • 2200 VA
  • RS-232
APC Smart-UPS RT 2200 Marine
  • UPS
  • AC 220/230/240 V
  • 1.54 kW
  • 2200 VA
  • RS-232
  • output connectors: 10
  • 3U
  • black
  Additional Details
Price: $2,511.00
MSRP: $3,410.00
Mfr Part #: SURTD2200XLIM
SHI Part #: 24672931
Category: Rechargeable batteries
UNSPSC: 26111701
Manufacturer: APC by Schneider Electric
Product Type: Hardware

Audio/Video Cables

APC - power extension cable - IEC 60320 C19 to IEC 60320 C20 - 1.2 m
  • IEC 60320 C19 to IEC 60320 C20
  • 16 A
  • 1.2 m
  • 90° connector
  • black
  • for P/N: SMT2200I-AR, SMT2200R2I-AR, SMT3000I-AR, SMT3000R2I-AR, SRT1500XLI, SRT2200XLI-KR
MSRP $347.00 $277.00
APC - power extension cable - IEC 60320 C19 to IEC 60320 C20 - 1.8 m
  • IEC 60320 C19 to IEC 60320 C20
  • 16 A
  • 1.8 m
  • 90° connector
  • black
  • for P/N: SMT2200I-AR, SMT2200R2I-AR, SMT3000I-AR, SMT3000R2I-AR, SRT1500XLI, SRT2200XLI-KR
MSRP $398.00 $317.00
APC - power extension cable - IEC 60320 C19 to IEC 60320 C20 - 61 cm
  • IEC 60320 C19 to IEC 60320 C20
  • 16 A
  • 61 cm
  • 90° connector
  • black
  • for P/N: SMT2200I-AR, SMT2200R2I-AR, SMT3000I-AR, SMT3000R2I-AR, SRT1500XLI, SRT2200XLI-KR
MSRP $275.00 $219.00

Network Interface Cards

APC Network Management Card 3 with PowerChute Network Shutdo
MSRP $538.00 $397.00
APC Network Management Card 3 with PowerChute Network Shutdown & Environmental Monitoring - remote management adapter
MSRP $846.00 $624.00
General Information
CategoryRechargeable batteries
DescriptionAPC Smart-UPS RT 2200 Marine - UPS - AC 220/230/240 V - 1.54 kW - 2200 VA - RS-232 - output connectors: 10 - 3U - black
ManufacturerAPC by Schneider Electric
MSRP$3,410.00
UNSPSC26111701
Main Specifications
Dimensions & Weight / Depth66 cm
Dimensions & Weight / Height43.2 cm
Dimensions & Weight / Weight54.6 kg
Dimensions & Weight / Width13 cm
General / SubcategoryUPS
Header / BrandAPC
Miscellaneous / Product ColorBlack
Networking / Remote Management InterfaceRS-232
Packaged Quantity1
Power Device / Form FactorExternal
Power Device / Output Connector Qty10
Power Device / Power Capacity (VA)2200 VA
Power Device / UPS TechnologyOn-line
Power Device / Voltage RequiredAC 220/230/240 V
Product TypeUPS
Service & Support / Type2-year warranty
Battery
Quantity2
Recharge Time2.5 hours
Run Time (Up To)
  • 21 min at full load
  • 48 min at half load
TechnologyLead acid
Dimensions & Weight
Depth66 cm
Height43.2 cm
Weight54.6 kg
Width13 cm
Dimensions & Weight (Shipping)
Shipping Depth98 cm
Shipping Height34.7 cm
Shipping Weight63.6 kg
Shipping Width60.3 cm
Environmental Parameters
Humidity Range Operating0 - 95%
Max Operating Temperature55 °C
Min Operating Temperature0 °C
Sound Emission55 dBA
Expansion / Connectivity
Expansion Slots1 SmartSlot
Interfaces
  • 1 x management (RS-232) - RJ-45
  • 1 x EPO (emergency power off)
General
Battery Enclosure TypePlug-in module
ColorBlack
Device TypeUPS - external
Height (Rack Units)3U
Manufacturer Warranty
Service & SupportLimited warranty - 2 years
Miscellaneous
Cables IncludedSerial cable - external
Compliant StandardsEN 60950, EN 61000-3-2, UL 1449, EN55022 Class A, EN 50091-2, RoHS, EN 50091-1, REACH
FeaturesAudible alarm, emergency power off, internal bypass, LED indicators
Rack Mounting KitIncluded
Networking
Remote Management InterfaceRS-232
Power Device
Frequency Provided50/60 Hz
Frequency Required50/60 Hz
Input VoltageAC 220/230/240 V
Input Voltage RangeAC 180 - 280 V
Output VoltageAC 220/230/240 V ± 3% - 50/60 Hz
Output WaveformSinewave
Power Capacity1.54 kW / 2200 VA

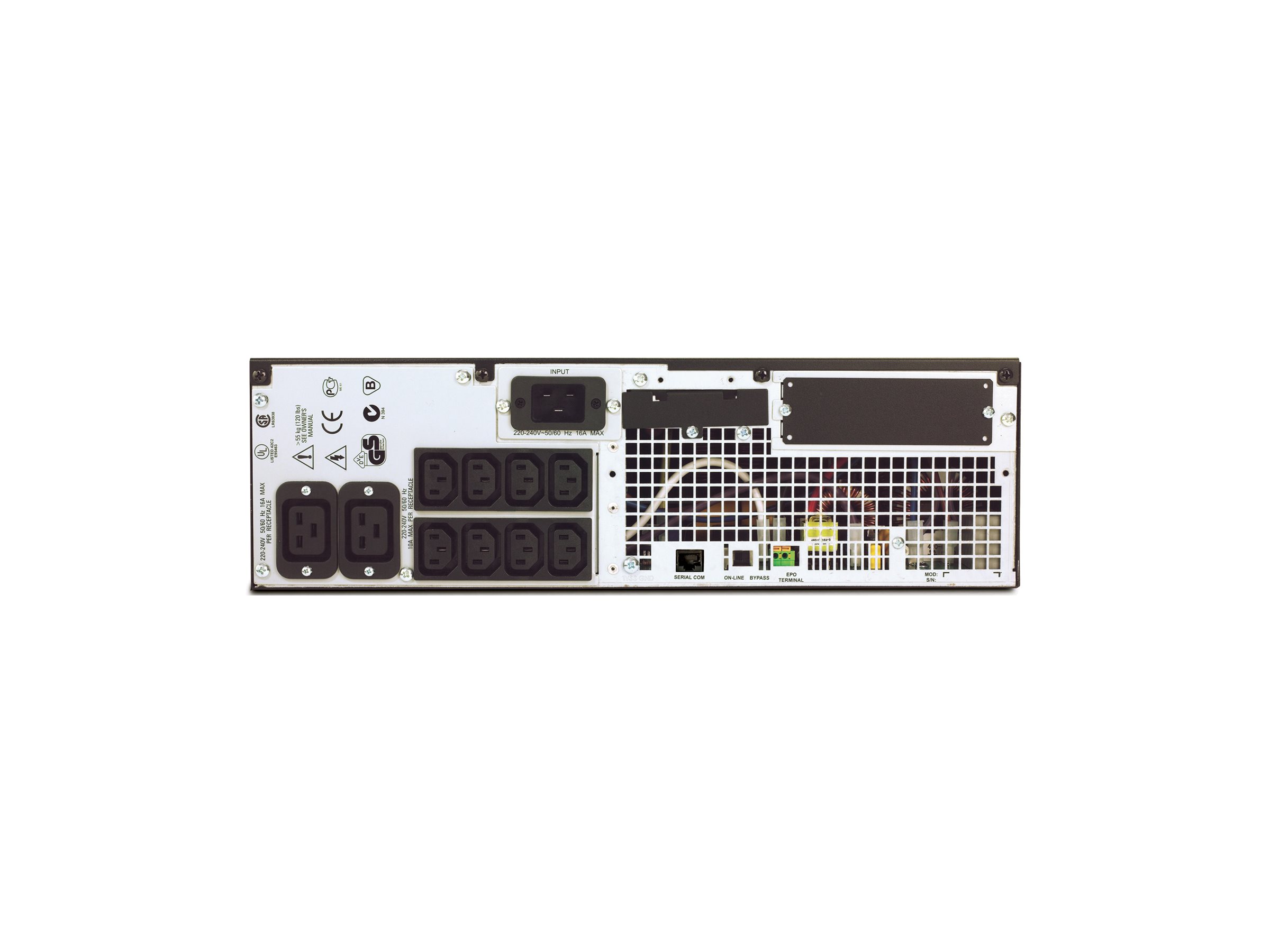

Power Output Connectors Details
  • 8 x power IEC 60320 C13
  • 2 x power IEC 60320 C19
Surge Energy Rating480 Joules
Surge SuppressionYes
UPS TechnologyOn-line
Software / System Requirements
Software IncludedDrivers & Utilities
