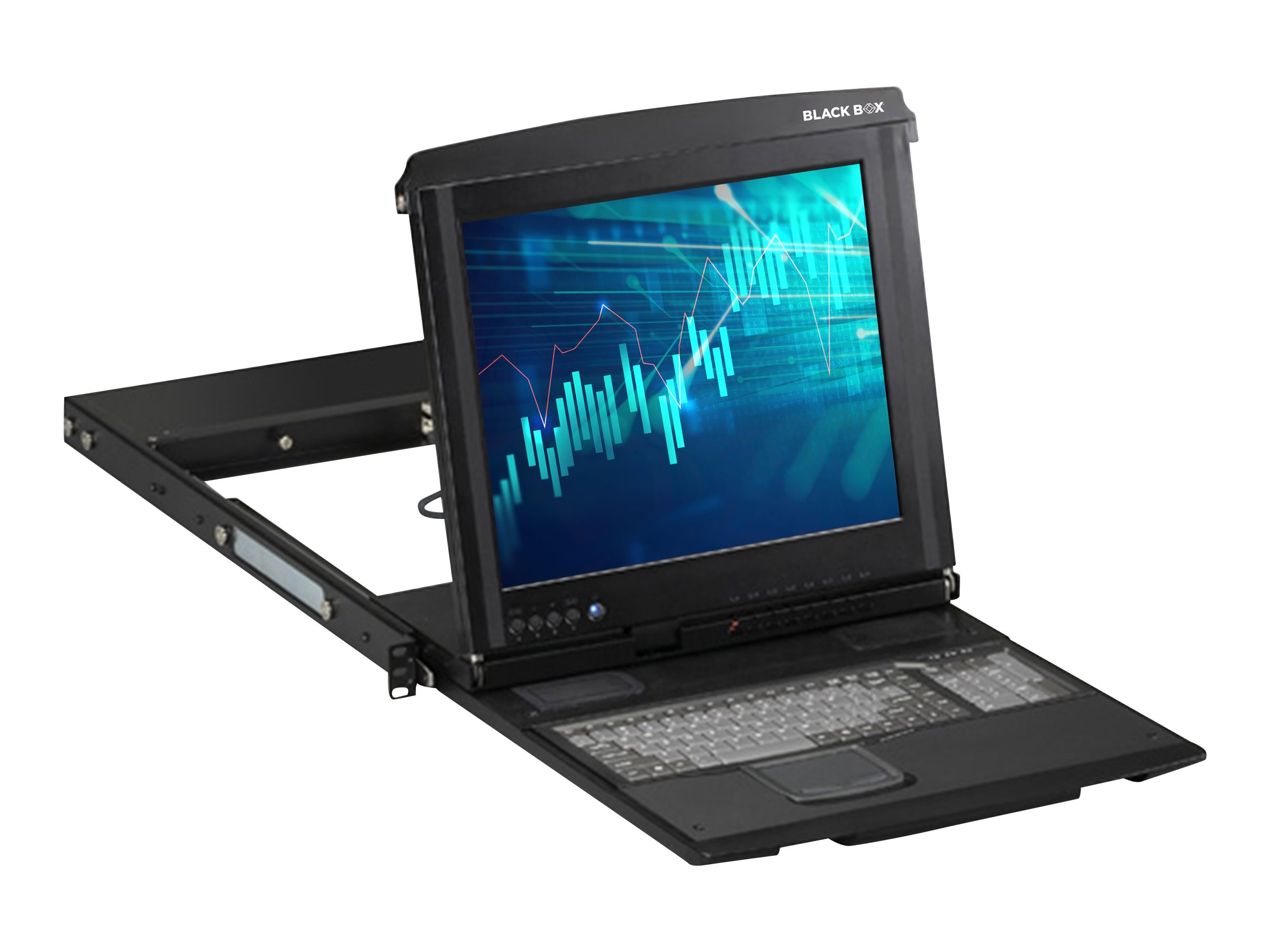

Black Box ServView V KVT517A
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Black Box ServView V KVT517A
- KVM console with KVM switch
- 16 ports
- 17"
- rack-mountable
- 1280 x 1024
- 300 cd/m2
- 800:1
- VGA
- 1U
| Additional Details | |
|---|---|
| Mfr Part #: | KVT517A-16CATX-1IP |
| SHI Part #: | 24639022 |
| Category: | Flat panel displays |
| UNSPSC: | 43211902 |
| Manufacturer: | Black Box |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Flat panel displays |
| Description | Black Box ServView V KVT517A - KVM console with KVM switch - 16 ports - 17" - rack-mountable - 1280 x 1024 - 300 cd/m2 - 800:1 - VGA - 1U |
| Manufacturer | Black Box |
| UNSPSC | 43211902 |
| Main Specifications | |
| Dimensions & Weight / Depth | 49.5 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 10.4 kg |
| Dimensions & Weight / Width | 43.2 cm |
| Display / Diagonal Size | 17 in |
| Display / Diagonal Size (metric) | 43.2 cm |
| Display / Interface | VGA (HD-15) |
| Display / Native Resolution | 1280 x 1024 |
| Display / Pixel Pitch | 0.264 mm |
| Display / Type | KVM console |
| Header / Brand | Black Box |
| Image Brightness | 300 cd/m² |
| Input Device / Type |
|
| Miscellaneous / Compliant Standards |
|
| Networking / Ports Qty | 16 |
| Networking / Type | KVM switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Connectivity | |
| Interfaces | 16 x KVM (RJ-45) |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 95% |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Aspect Ratio | 5:4 |
| Backlight Technology | CCFL |
| Brightness | 300 cd/m² |
| Built-in Devices | KVM switch |
| Color Support | 16.2 million colors |
| Contrast Ratio | 800:1 |
| Diagonal Size | 17" |
| Dimensions (WxDxH) | 43.2 cm x 49.5 cm x 4.4 cm |
| Display Type | KVM console / TFT active matrix |
| Height (Rack Units) | 1U |
| Horizontal Viewing Angle | +80 / -80 |
| Native Resolution | 1280 x 1024 |
| Pixel Pitch | 0.264 mm |
| Vertical Viewing Angle | +80 / -80 |
| Weight | 10.4 kg |
| Input | |
| Type | Keyboard, touchpad |
| KVM | |
| Features | IP-based user connection, server connection via twisted pair |
| Type | KVM switch - 16 ports |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | UL, TUV, DDC-1, DDC-2B, FCC, RoHS |
| Rack Mounting Kit | Included |
| Power | |
| Input Voltage | AC 120/230 V (47 - 63 Hz) |
| Power Supply | External |
