Tripp Lite VGA over Cat5/Cat6Video Extender Remote / Repeater Unit TAA 1000'

Tripp Lite's B132-110 remote/repeater unit both extends and expands your VGA over Cat5 installation, allowing you to locate multiple monitors at different points in a chain of up to 609 m (2,000 ft.) With Tripp Lite's standard transmitter and receiver units, a single VGA monitor can be located up to 305 m (1,000-ft.) from the source. By inserting the B132-110 remote/repeater unit in between, the signal can be regenerated and extended to another monitor up to an additional 305 m (1,000-ft.) away. A monitor can be connected to both the remote/repeater and the receiver, allowing the signal to be transmitted to both points in the chain. Up to 4 remote units (3 remote/repeaters and 1 receiver) can be connected together, providing video to up to 4 remote displays located at different points in the installation.

With Tripp Lite's wide assortment of VGA over Cat5 extender solutions, the B132-110 remote/repeater unit can be used in a variety of ways to create the installation best suited to your needs.

Insert the B132-110 in between the local transmitter and remote receiver units of your B130-101-2 Extender kit.

Connect the B132-110 to the remote/repeater unit that comes with the B130-111 extender/repeater kit.

Connect the B132-110 to an available port on a B132-002-2 or B132-004-2 extender/splitter.

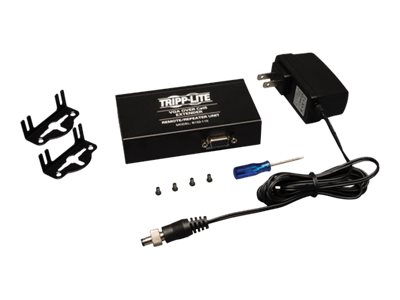

24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution. For optimal image quality between 152 m (500-ft.) and 305 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K. Unit features Equalization and Gain controls to adjust the video image. Includes mounting hardware that allows unit to be wall mounted, rackmounted, or pole mounted. For international use, the B110-INT power supply can be purchased separately; it features plugs for the UK, Europe, and Australia.
