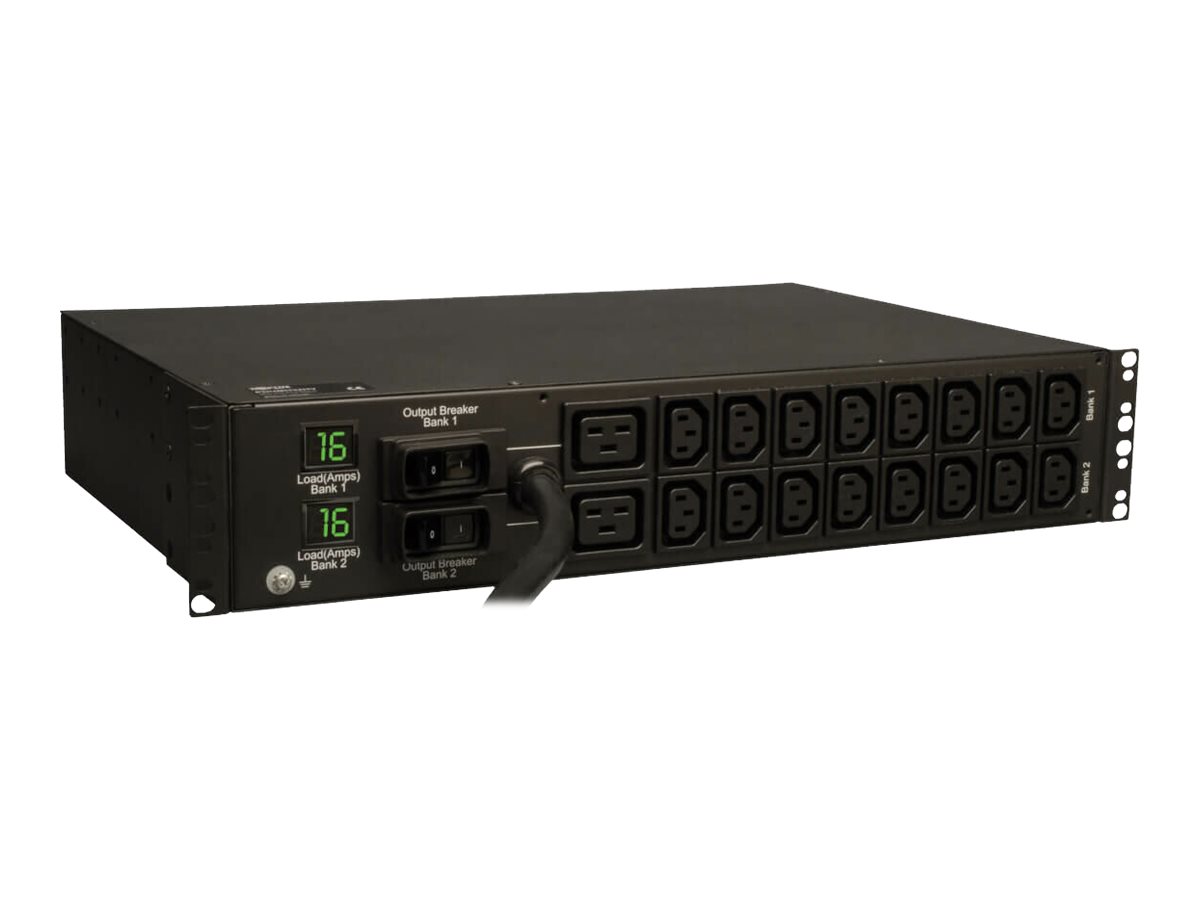

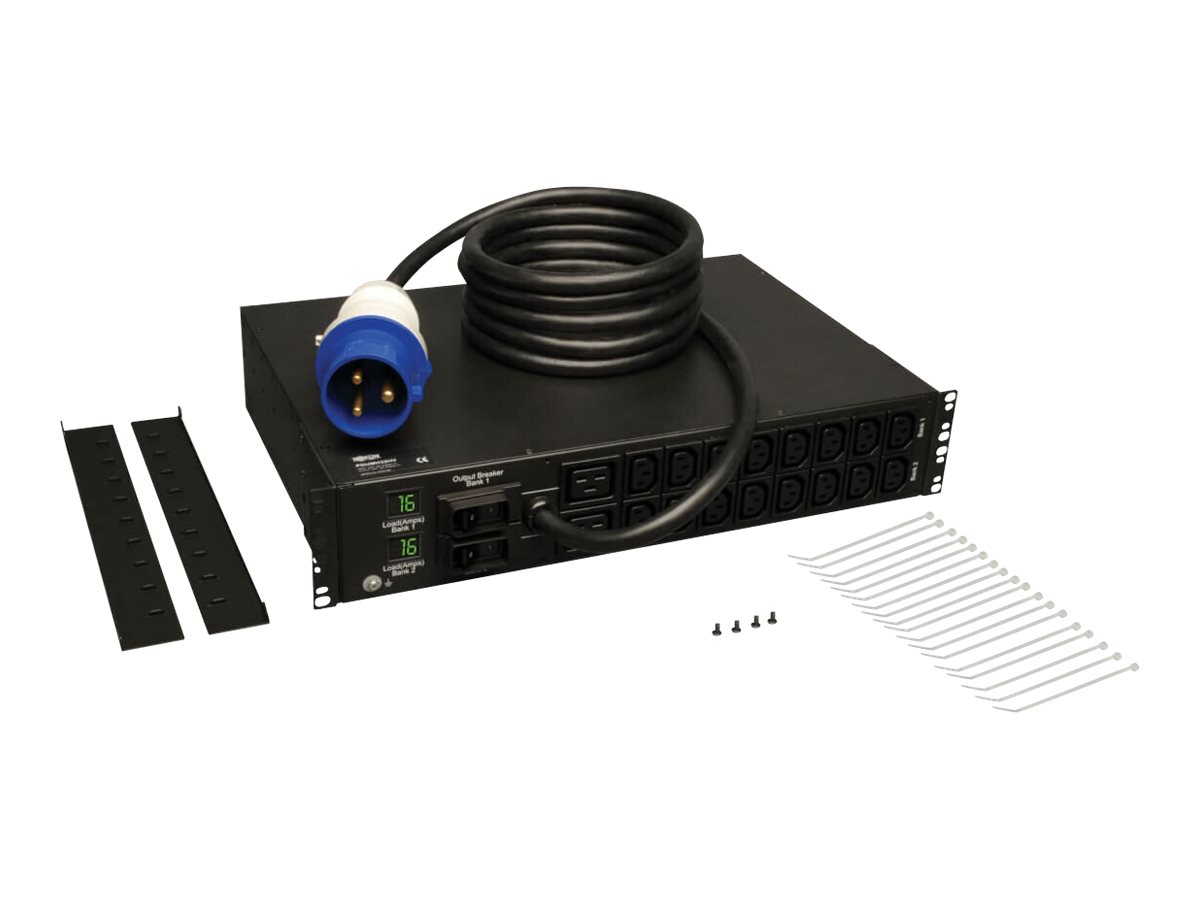

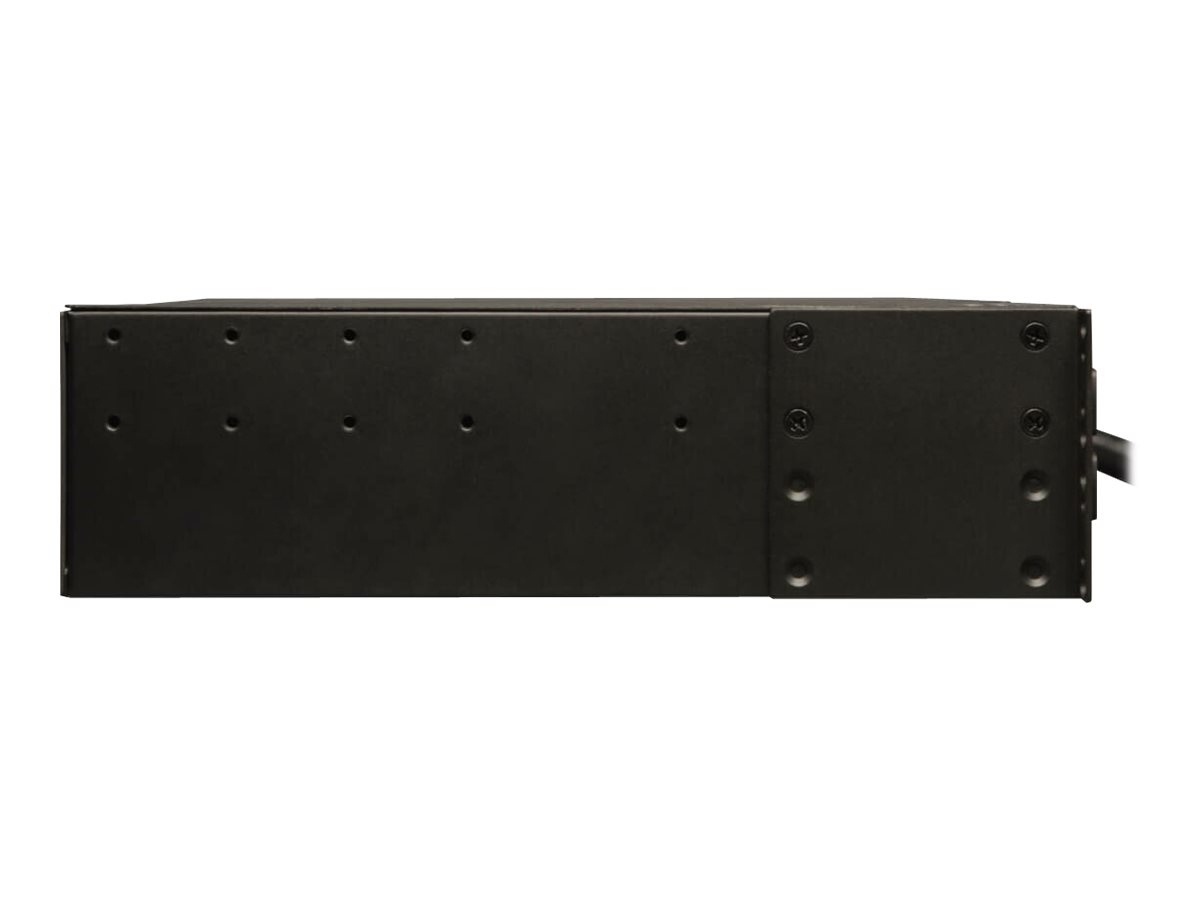

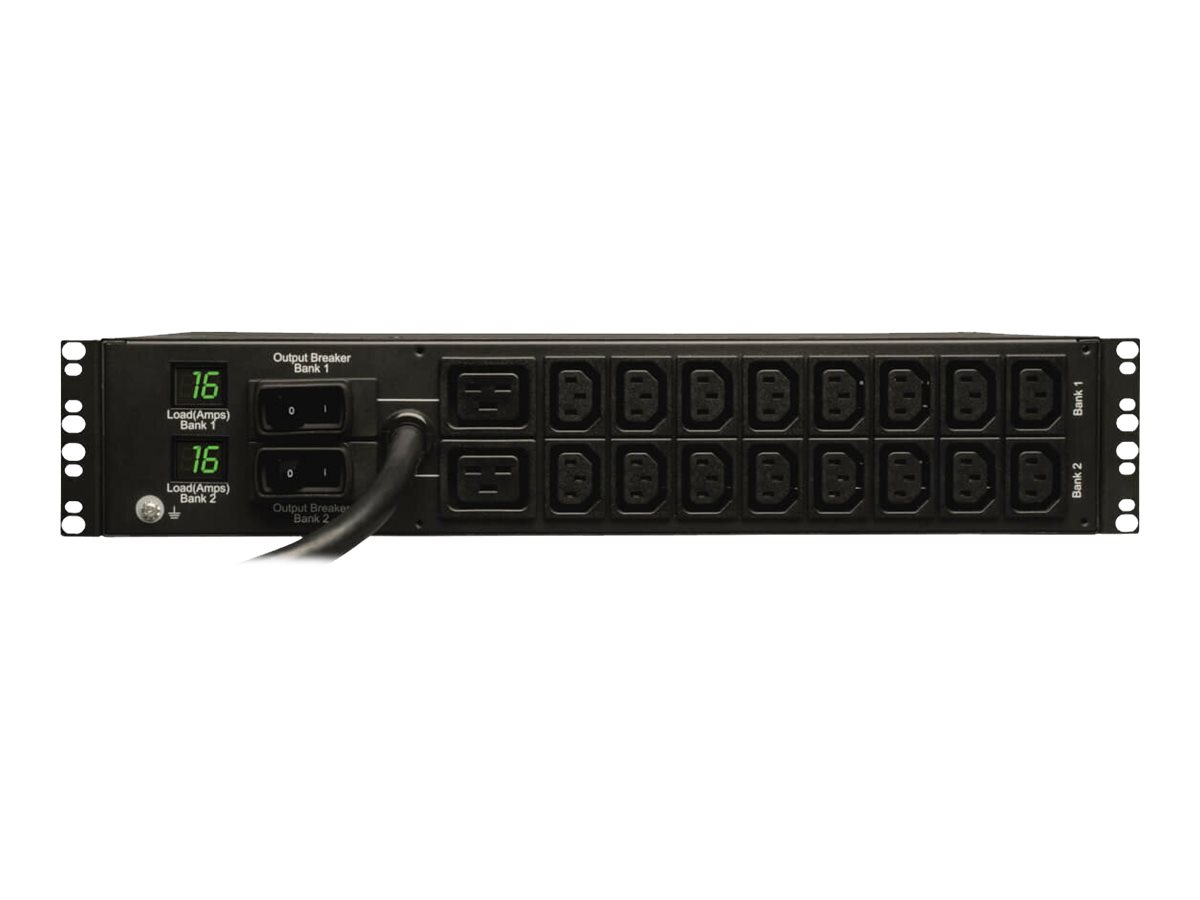

Tripp Lite PDU Metered 230V 32A 7.4kW 16 C13 2 C19 IEC-309 Horizontal 2URM
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Tripp Lite PDU Metered 230V 32A 7.4kW 16 C13 2 C19 IEC-309 Horizontal 2URM
- Horizontal rackmount
- power distribution unit (rack-mountable)
- 32 A
- AC 230 V
- 7.4 kW
- input: IEC 60309 32A
- output connectors: 18
- 2U
- 19"
| Additional Details | |
|---|---|
| Mfr Part #: | PDUMH32HV |
| SHI Part #: | 22928027 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Tripp Lite PDU Metered 230V 32A 7.4kW 16 C13 2 C19 IEC-309 Horizontal 2URM - Horizontal rackmount - power distribution unit (rack-mountable) - 32 A - AC 230 V - 7.4 kW - input: IEC 60309 32A - output connectors: 18 - 2U - 19" |
| Manufacturer | Eaton |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 31.8 cm |
| Dimensions & Weight / Height | 8.9 cm |
| Dimensions & Weight / Weight | 6.2 kg |
| Dimensions & Weight / Width | 44.5 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Tripp Lite |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 18 |
| Power Device / Voltage Required | AC 230 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 31.8 cm |
| Height | 8.9 cm |
| Weight | 6.2 kg |
| Width | 44.5 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 80.6 cm |
| Shipping Height | 14 cm |
| Shipping Weight | 7.4 kg |
| Shipping Width | 113 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 2U |
| Rack Size | 19" |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3.6 m |
| Compliant Standards | CSA, UL, RoHS, IEC 60950-1 |
| Features | LED display, current meter, overload protection, short-circuit protection |
| Rack Mounting Kit | Included |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50/60 Hz |

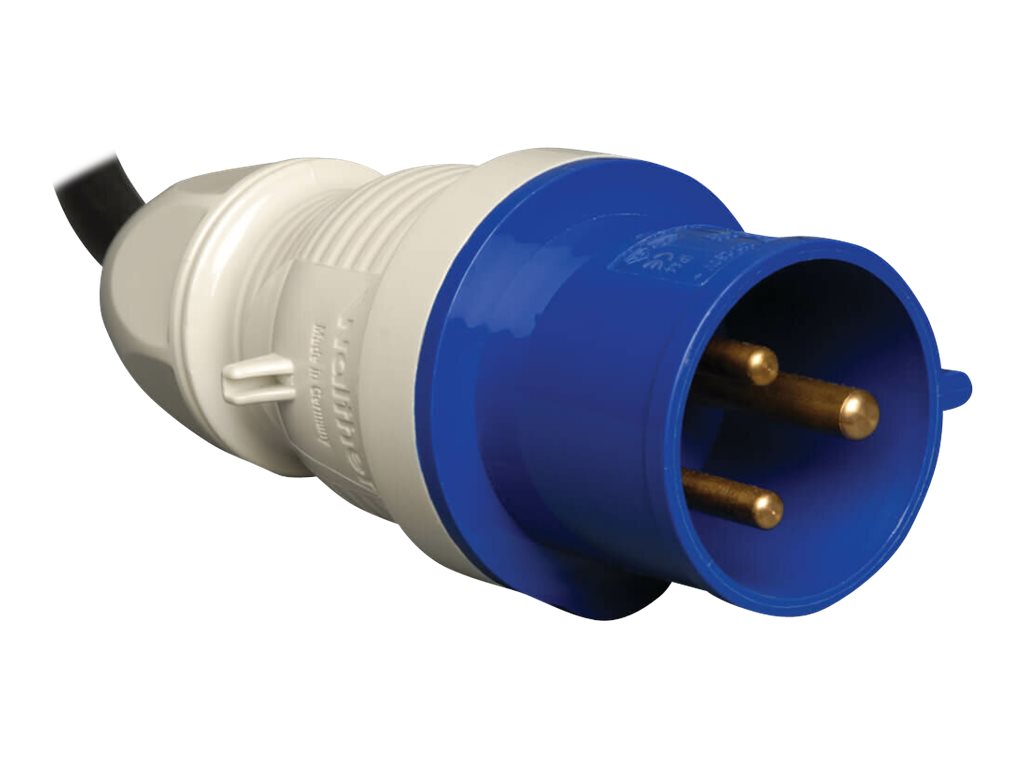

| Input Connectors | 1 x power IEC 60309 32A |
| Input Voltage | AC 230 V |
| Max Electric Current | 32 A |
| Output Voltage | AC 230 V 50/60 Hz |
| Power Capacity | 7.4 kW |
| Power Output Connectors Details |
|
