Havis DS-PAN-111 - Port replicator

Login for Price

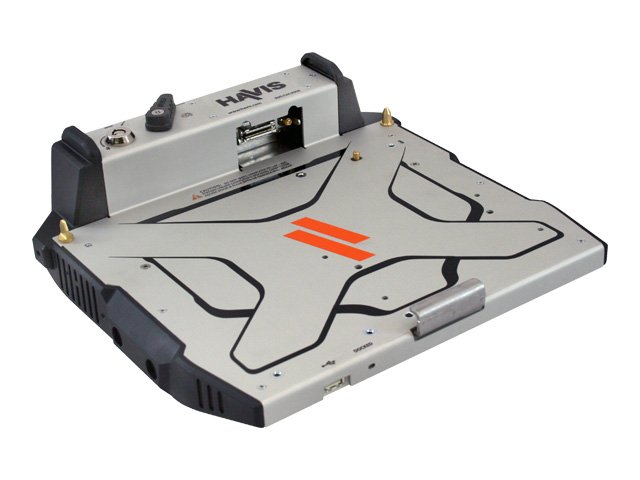

Havis DS-PAN-111 - Port replicator
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • for Panasonic Toughbook 30, 31, 31 Performance, 31 Standard, 31 Value
Havis DS-PAN-111 - Port replicator
  • for Panasonic Toughbook 30, 31, 31 Performance, 31 Standard, 31 Value
  Additional Details
Mfr Part #: DS-PAN-111
SHI Part #: 22864020
Category: Port replicators
UNSPSC: 43211603
Manufacturer: Havis
Product Type: Hardware
General Information
CategoryPort replicators
DescriptionHavis DS-PAN-111 - Port replicator - for Panasonic Toughbook 30, 31, 31 Performance, 31 Standard, 31 Value
ManufacturerHavis
UNSPSC43211603
Main Specifications
Dimensions & Weight / Depth29.9 cm
Dimensions & Weight / Height9.7 cm
Dimensions & Weight / Weight2.1 kg
Dimensions & Weight / Width31.5 cm
Header / BrandHavis
Miscellaneous / Product Color
  • Black
  • Silver
Optical Storage / TypeNone
Packaged Quantity1
Service & Support / Type3-year warranty
System / Device Type (AI)Port replicator
Compatibility Information
Designed ForPanasonic Toughbook 30, 31, 31 Performance, 31 Standard, 31 Value
Environmental Parameters
Max Operating Temperature60 °C
Min Operating Temperature-23 °C
Expansion / Connectivity

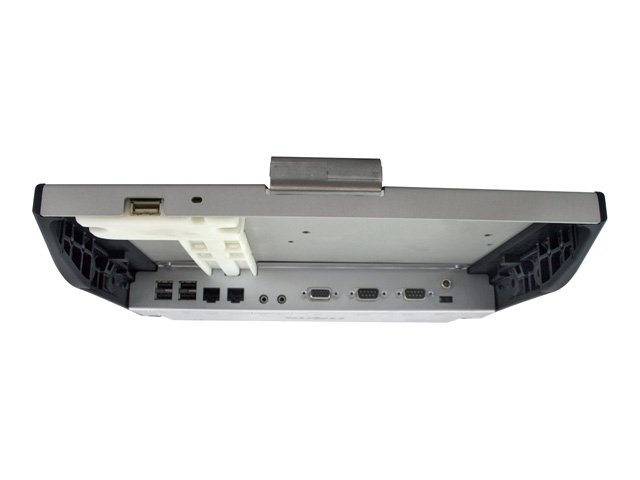

Interfaces
  • 5 x USB 2.0 - 4 pin USB Type A
  • 2 x serial - 9 pin D-Sub (DB-9)
  • 2 x network - Ethernet - RJ-45
  • 1 x display / video - VGA - 15 pin HD D-Sub (HD-15)
  • 1 x speakers - output - mini-phone stereo 3.5 mm
  • 1 x microphone - input - mini-phone 3.5 mm
General
Depth29.9 cm
Enclosure ColorBlack, silver
Height9.7 cm
Product TypePort replicator
Weight2.1 kg
Width31.5 cm
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Miscellaneous
Compliant StandardsEMC, MIL-STD 810G
FeaturesRugged
