Hardware Power Management Power Adapters

Power Adapters

Altronix AL300ULXPD16CB

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Battery charger / power adapter (wall mountable) AC 115 V output connectors: 16

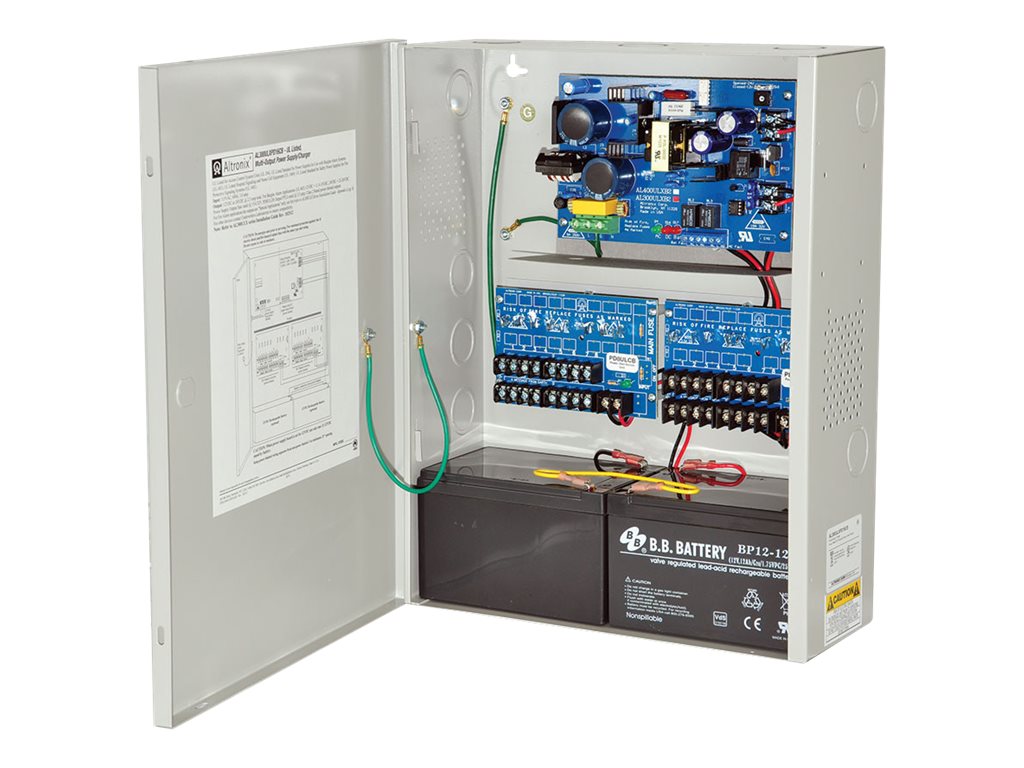

Altronix AL300ULXPD16CB

General Information
Category	Power adapters or inverters
Description	Altronix AL300ULXPD16CB - Battery charger / power adapter (wall mountable) - AC 115 V - output connectors: 16
Manufacturer	Altronix
UNSPSC	39121006
Main Specifications
Dimensions & Weight / Depth	11.4 cm
Dimensions & Weight / Height	39.4 cm
Dimensions & Weight / Weight	3.88 kg
Dimensions & Weight / Width	31.1 cm
Header / Brand	Altronix
Miscellaneous / Product Color	Gray
Packaged Quantity	1
Power Device / Form Factor	Wall mountable
Power Device / Output Connector Qty	16
Power Device / Voltage Required	AC 115 V
Product Type	Battery charger / power adapter
Service & Support / Type	Limited lifetime warranty
Dimensions & Weight
Depth	11.4 cm
Height	39.4 cm
Weight	3.88 kg
Width	31.1 cm
Dimensions & Weight (Shipping)
Shipping Weight	4.92 kg
Environmental Parameters
Humidity Range Operating	85%
Max Operating Temperature	49 °C
Min Operating Temperature	0 °C
General
Device Type	Battery charger / power adapter - wall mountable
Manufacturer Warranty
Service & Support	Limited warranty - lifetime
Miscellaneous
Compliant Standards	RoHS, UL, cUL, NFPA, UL 603
Power Device
Circuit Protection	Fuse
Frequency Required	60 Hz
Input Voltage	AC 115 V
Output Voltage	DC 12 / 24 V
Power Output Connectors Details	16 x power 2.5 A
