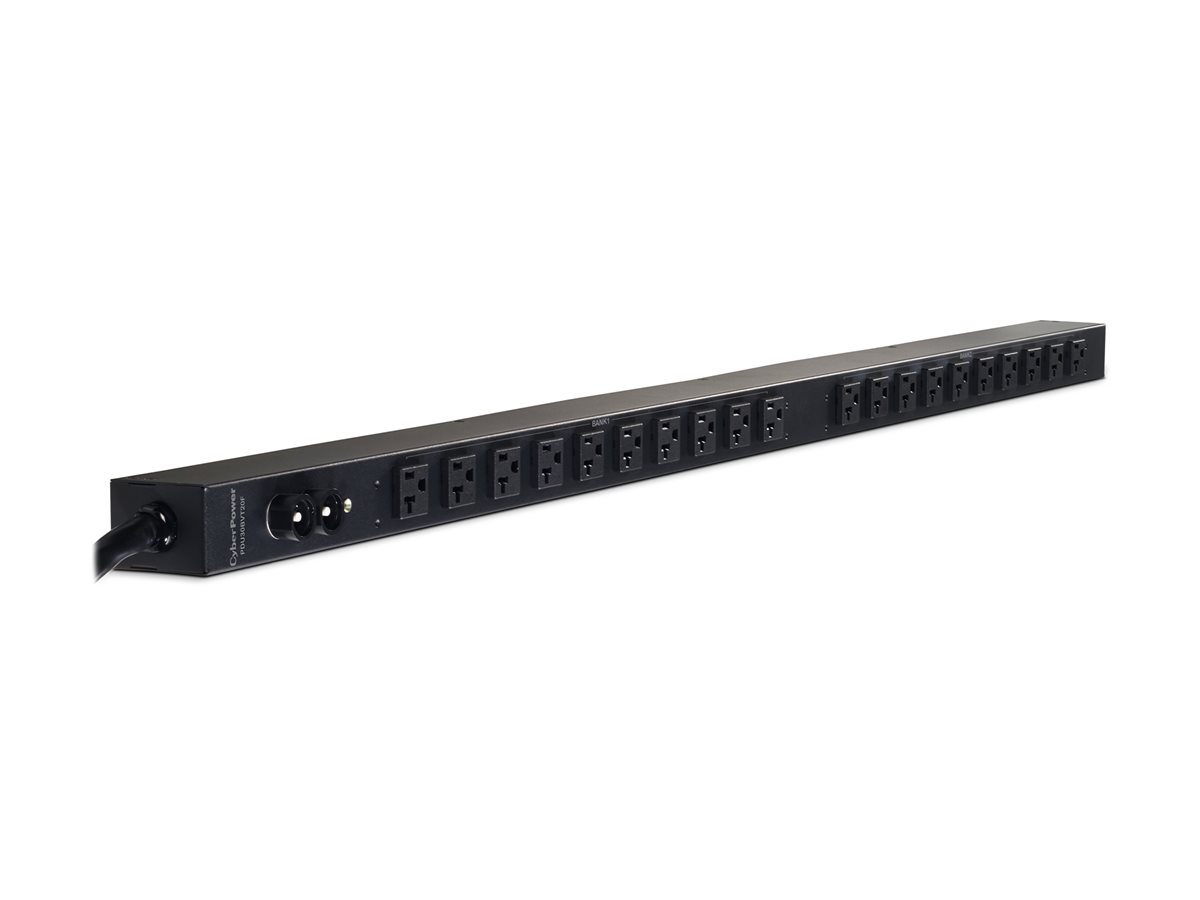

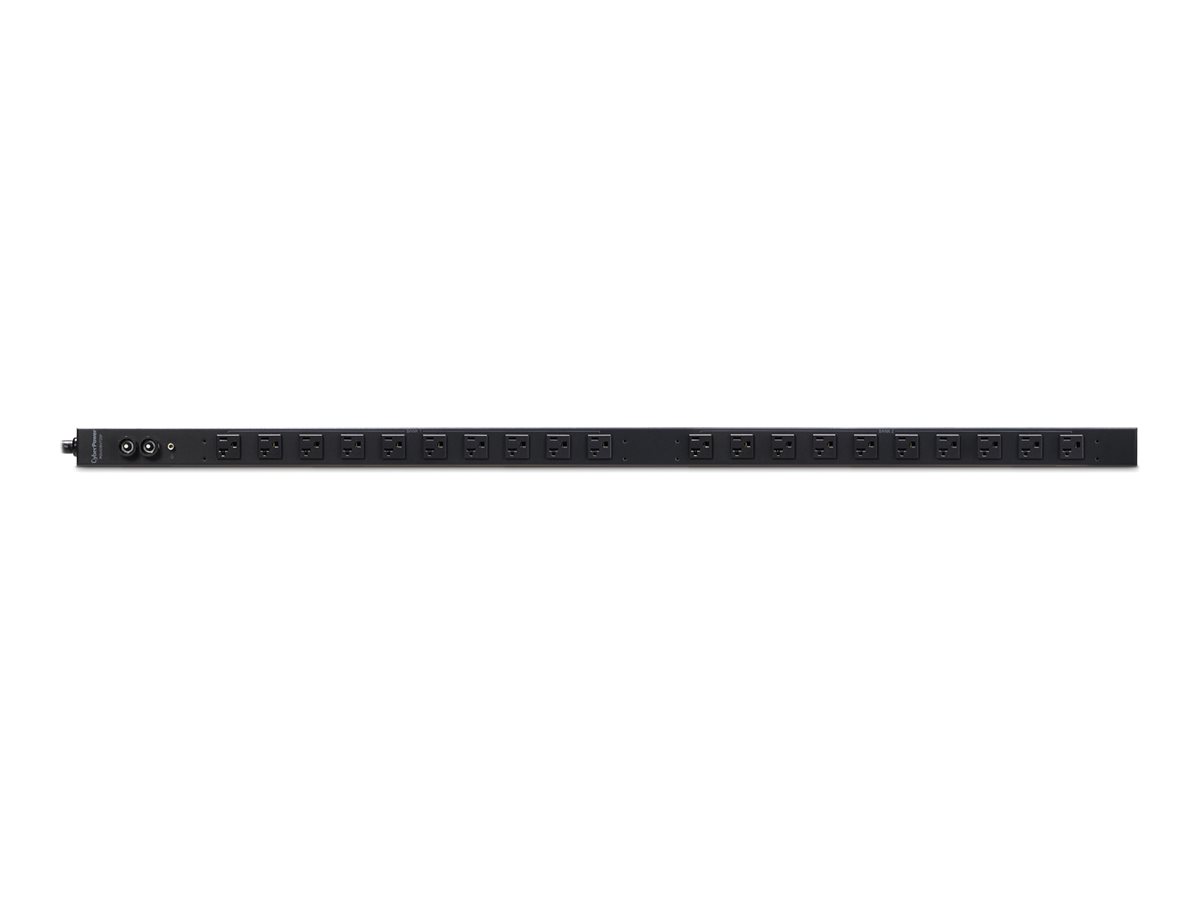

CyberPower Basic Series PDU30BVT20F
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
CyberPower Basic Series PDU30BVT20F
- Power distribution unit (rack-mountable)
- AC 120 V
- input: NEMA L5-30
- output connectors: 20
- 0U
- for Paragon Online OL3000; Smart App Sinewave PR3000; Smart App Sinewave LCD PR3000
| Additional Details | |
|---|---|
| Mfr Part #: | PDU30BVT20F |
| SHI Part #: | 22604055 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | CyberPower |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | CyberPower Basic Series PDU30BVT20F - Power distribution unit (rack-mountable) - AC 120 V - input: NEMA L5-30 - output connectors: 20 - 0U - for Paragon Online OL3000; Smart App Sinewave PR3000; Smart App Sinewave LCD PR3000 |
| Manufacturer | CyberPower |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5.7 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 4.1 kg |
| Dimensions & Weight / Width | 121 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Cyberpower |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 20 |
| Power Device / Voltage Required | AC 120 V |
| Product Type | Power distribution unit |
| Service & Support / Type | Limited lifetime warranty |
| Compatibility Information | |
| Designed For |
|
| Dimensions & Weight | |
| Depth | 5.7 cm |
| Height | 4.4 cm |
| Weight | 4.1 kg |
| Width | 121 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | RoHS, ETL, UL 60950-1, CSA 22.2 |
| Features | Wall mountable, front connectivity, rugged, overload protection, vertical orientation |
| Rack Mounting Kit | Included |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L5-30 |
| Input Voltage | AC 120 V |
| Max Electric Current | 30 A |
| Output Voltage | AC 120 V 50/60 Hz |
| Power Output Connectors Details | 20 x power NEMA 5-20 |
