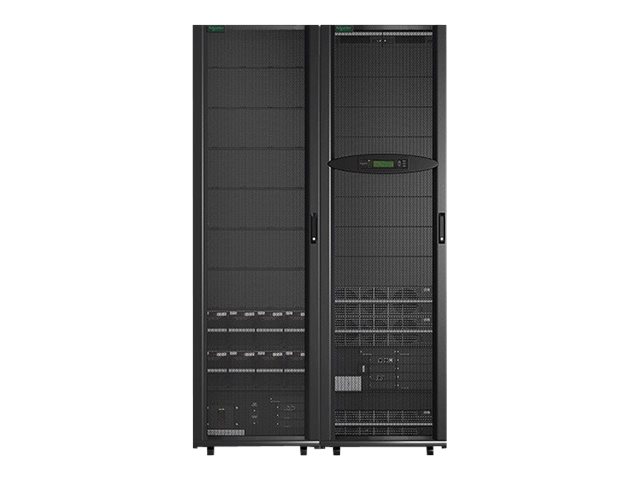

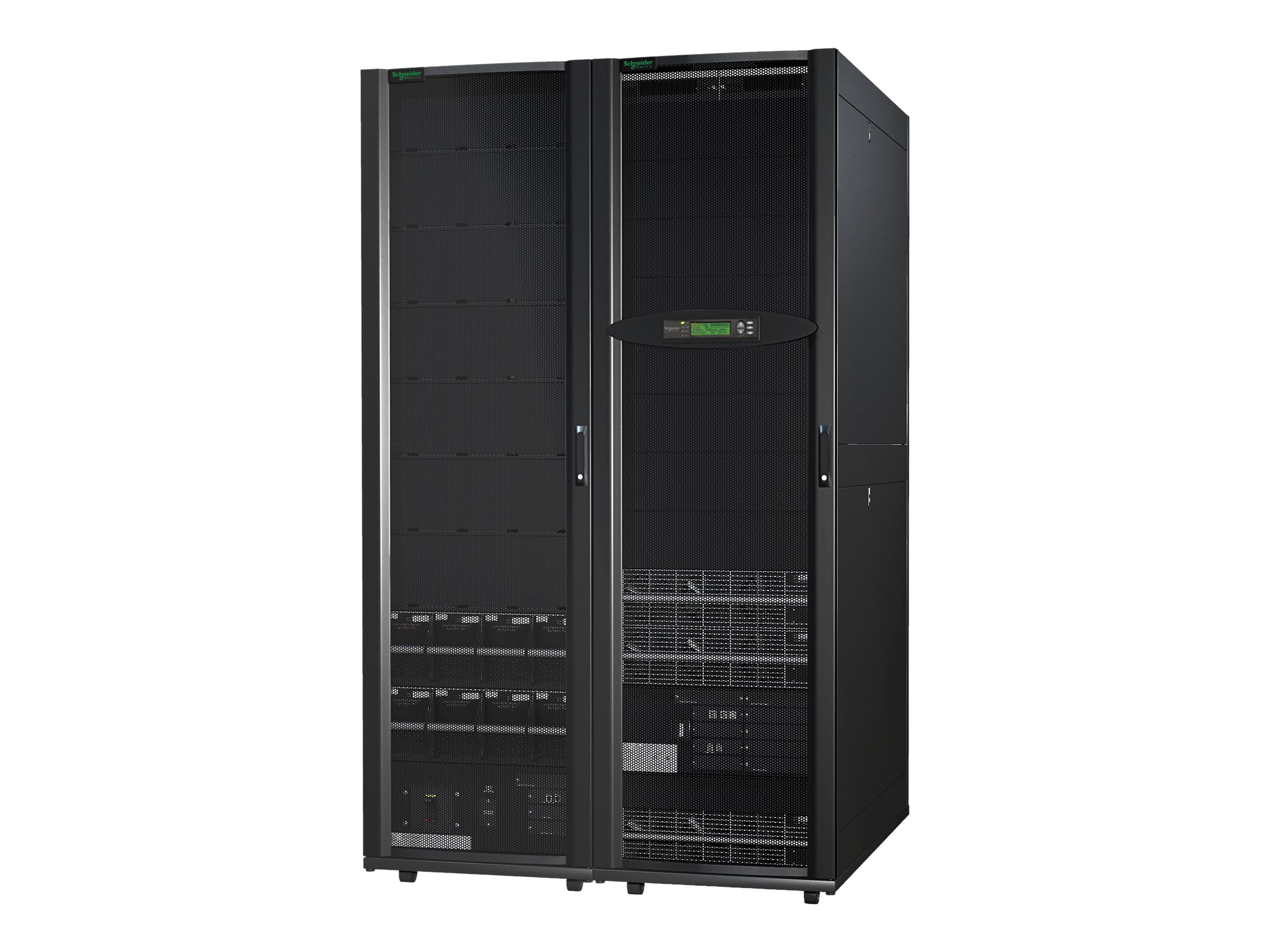

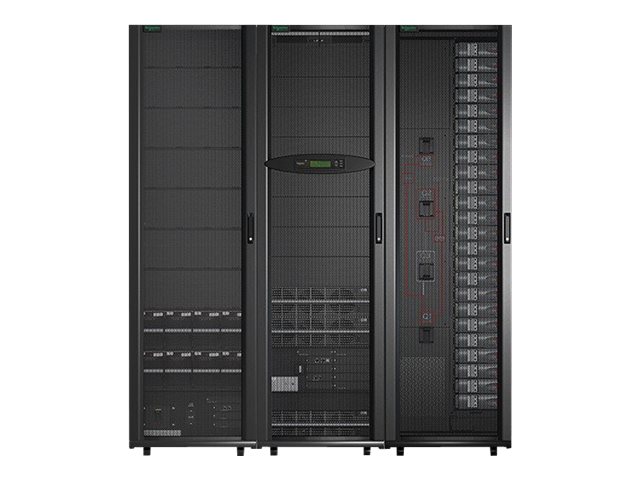

SYMMETRA PX 20KW SCALABLE TO100KW 208V WITH STARTUP
MSRP$66,985.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
SYMMETRA PX 20KW SCALABLE TO100KW 208V WITH STARTUP
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $66,985.00 |
| Mfr Part #: | SY20K100F |
| SHI Part #: | 21974877 |
| Category: | Power conditioning equipment |
| UNSPSC: | 39121000 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | SYMMETRA PX 20KW SCALABLE TO100KW 208V WITH STARTUP |
| Manufacturer | APC by Schneider Electric |
| MSRP | $66,985.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 107 cm |
| Dimensions & Weight / Height | 201 cm |
| Dimensions & Weight / Weight | 905 kg |
| Dimensions & Weight / Width | 120 cm |
| General / Subcategory | UPS |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Output Connector Qty | 1 |
| Power Device / Power Capacity (VA) | 20000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power array |
| Service & Support / Type | 1-year warranty |
| Battery | |
| Quantity | 2 (installed) / 9 (supported) |
| Recharge Time | 2 hours |
| Run Time (Up To) |
|
| Technology | Lead acid |
| Voltage Provided | 192 V |
| Dimensions & Weight | |
| Depth | 107 cm |
| Height | 201 cm |
| Weight | 905 kg |
| Width | 120 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 121 cm |
| Shipping Height | 214 cm |
| Shipping Weight | 996 kg |
| Shipping Width | 170 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 67 dBA |
| General | |
| Color | Black |
| Device Type | Power array - external |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | ISO 9001, UL 1778, ISO 14001, IEC 62040-3, NEMA Type 1, FCC Part 15 A |
| Features | Audible alarm, LCD display, built-in static bypass |
| Power Device | |
| Frequency Required | 40 - 70 Hz |
| Input Voltage | AC 208 V |
| Input Voltage Margin | ± 5% |
| Input Voltage Range | AC 177 - 239 V |
| Input Wiring | 3-phase |
| Output Voltage | AC 120/208 V ± 2% |
| Output Waveform | Sinewave |
| Power Capacity | 20 kW / 20000 VA |
| UPS Technology | On-line |
